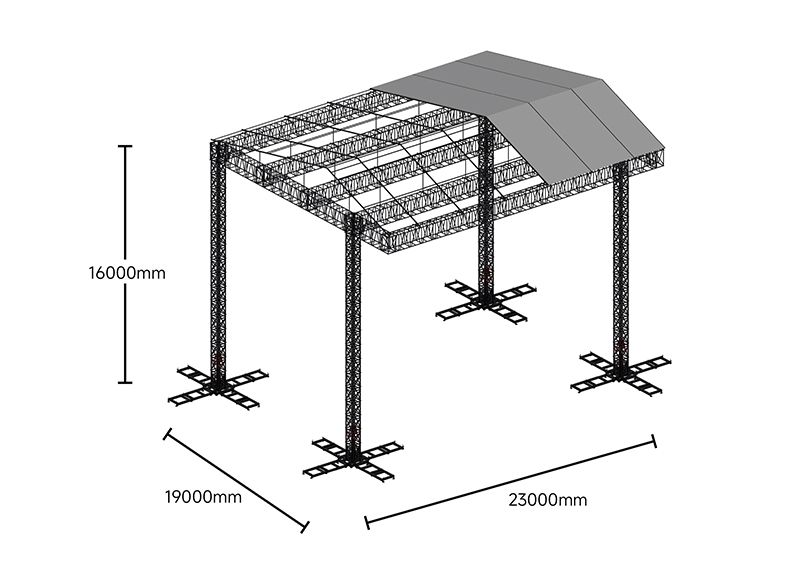

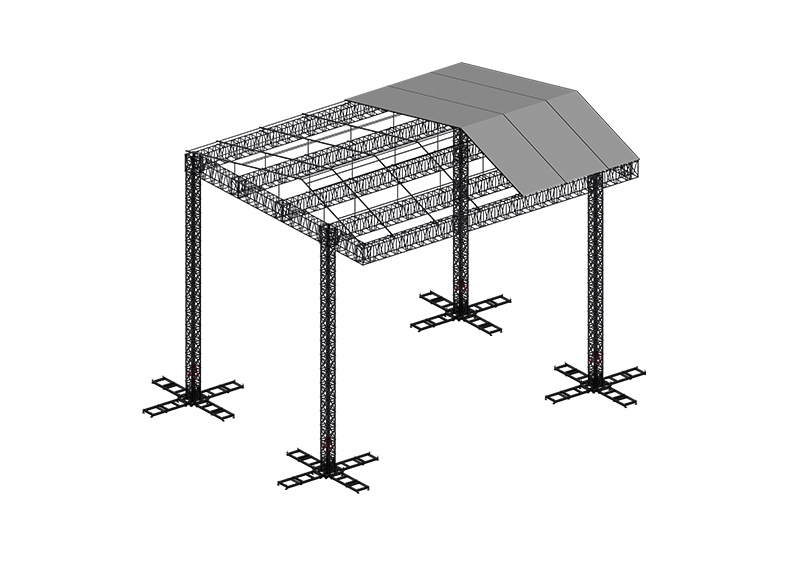

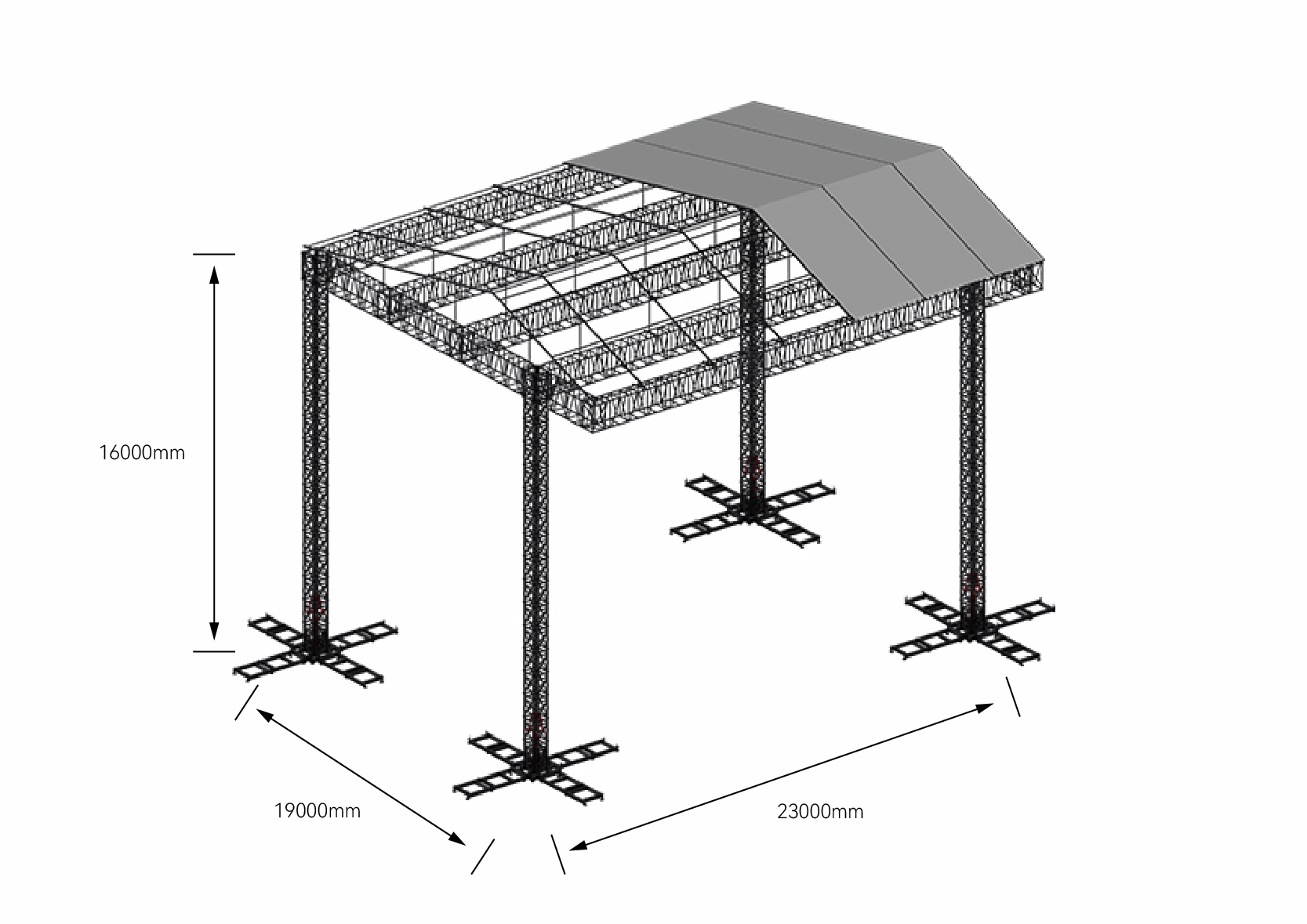

5T Electric Lift System Plan

The 5T Electric Lift System from WTC, a professional truss manufacturer, is a lightweight self-climbing modular truss erection solution for small events, designed for lightweight roofing, small commercial performances and outdoor pop-up exhibitions. As a cost-effective option for truss wholesale, this system adopts self-climbing electric lift tower technology to realize section-by-section heightening of steel truss columns, completely eliminating dependence on large hoisting equipment. It delivers a rated load of 5 tons per column with a recommended working height of 16m. Columns are made of Q355B structural steel and beams are matched with aluminum alloy, balancing strength and portability. Equipped with a PLC synchronized control system with 0.1mm lifting accuracy, it enables rapid erection of small stages and light canopies for small-scale event projects.



Request a Wholesale Quote Today



Download

Advantages of 5T Electric Lift System Plan

Lightweight & Portable

Small-size columns with aluminum beams, low dead weight, optional forklift, fits small venues.

Hoisting-Free Self-Climbing

Modular section-by-section heightening, no large cranes needed, cuts costs and site thresholds.

High-Precision Lifting

PLC synchronous control, 50mm/s speed, 0.1mm accuracy, stable operation.

Reliable Material

Q355B steel columns, 5T rated static load per column, meets small event mounting needs.

Fast Assembly & Disassembly

Standardized modular parts, simple process, shortens preparation cycle.

Dual-Certified Safety

ISO & CE certified, all-round protection covers construction and operation.

Loading Table of Electric Lift System Plan

Item	5T Electric Cylinder System	15T Standard / Triple-Use	30T Standard	30T Heavy-Duty
Product Positioning	Small events / lightweight roofing	Medium-large events / standard roofing	Large / extra-large heavy-load projects	Large / extra-large heavy-load projects
Rated Load per Column/Set	5T	15T	30T	30T
Recommended Working Height	16m	20m	24m	28m
Main Material	Column: Q355B Beam: Aluminum allo	Column: Q355B, Beam: Aluminum alloy / Q355	Column: Q355B Beam: Q355B	Column: Q355B Beam: Q355B
Column Specs	Main tube 50×50×4mm	Main tube 60×60×4mm	Main tube 80×80×6mm	Main tube 100×100×8mm
Column Single Section	650×50mm	800×60mm	1000×80mm	1000×100mm
Beam Structural Specs	580×1010mm ,680×1200mm	580×1010mm ,680×1200mm ,1500×80mm Single row	1800×100mm Single row	2000×100mm Single piece
Beam Specs	-	Main tube 80×80×6mm	Main tube 100×100×8mm	Main tube 100×100×8mm
Beam Single Section	-	1500×80mm	1800×100mm	2000×100mm
Base Plate Specs	1500×1500×350mm	1760×1760×350mm	2000×2000×500mm	2000×2000×500mm
Forklift Required	Optional	Yes	Yes	Yes
Electric Cylinder Stroke	1100mm	1100mm	1100mm	1100mm
Lifting Speed	50mm/s	50mm/s	50mm/s	50mm/s
Synchronization Accuracy	0.1mm	0.1mm	0.1mm	0.1mm
Control System	PLC synchronized control	PLC synchronized control	PLC synchronized control	PLC synchronized control
Power Supply	3-phase 380V	3-phase 380V	3-phase 380V	3-phase 380V

Products Associated with 5T Electric Lift System Plan

Truss Roofs

Steel Truss Roofs

15T Electric Lift System Plan

27m×27m×14m

Steel Truss Roofs

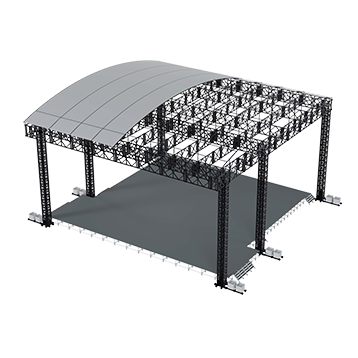

30T Conventional Electric Lift System Plan

38m×36m×20m

Steel Truss Roofs

30T Heavy-Duty Electric Lift System Plan

56m×34m×20m

General Overview

Leveraging the high structural strength of steel, standardized modular quick-assembly design and outstanding cost-effectiveness, steel trusses are widely used in diverse scenarios including stage lighting support for performances, main structure construction for exhibition booths, outdoor advertising display frames, temporary construction protection, and warehouse material support.

Request a Wholesale Quote Today

Exhibition hall construction

Anniversary event setup

Main stage construction

Event backdrop truss

FAQ

Welcome to our FAQ, we are so happy to have you here and as a client.

We have tried to answer the most common questions.

What is the recommended erection height of the 5T system? Can it be erected beyond the recommended height?

Is a forklift mandatory for installing this system?

The 5T system has light dead weight, and forklift is optional. For sites with limited conditions, erection can be completed manually with small tools, flexibly adapting to various small event venues.

Does the 5-ton load per column include the weight of the roof?

The 5 tons per column is the rated static load, including the total weight of all mounted facilities such as roof, lighting and audio. Safety margin is recommended in actual use to avoid overload.

Can beam sizes be customized? What are the standard specifications?

Standard beams are available in 580×1010mm and 680×1200mm. Customized sizes according to event span are also supported to meet space design needs of different small events.

What application scenarios is this system suitable for?

It is widely used in lightweight erection scenarios such as small commercial performances, brand pop-ups, outdoor exhibitions, light sunshade canopies and small conference stages.
