The recommended safe working height is 20m. For erection beyond this height, specific load, height and site wind conditions shall be provided for special structural checking and safety assessment by the technical team.
-
- EN
-

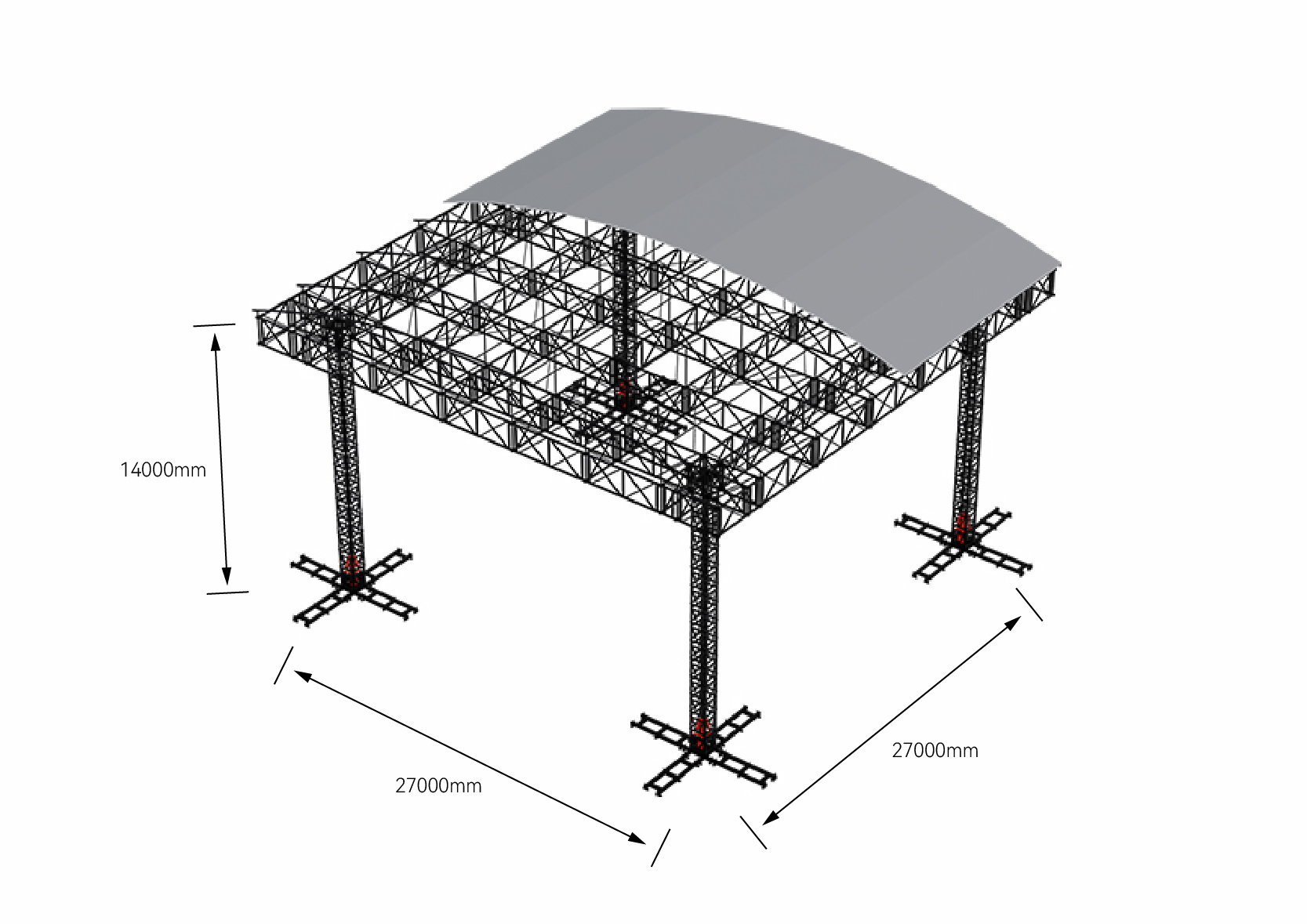

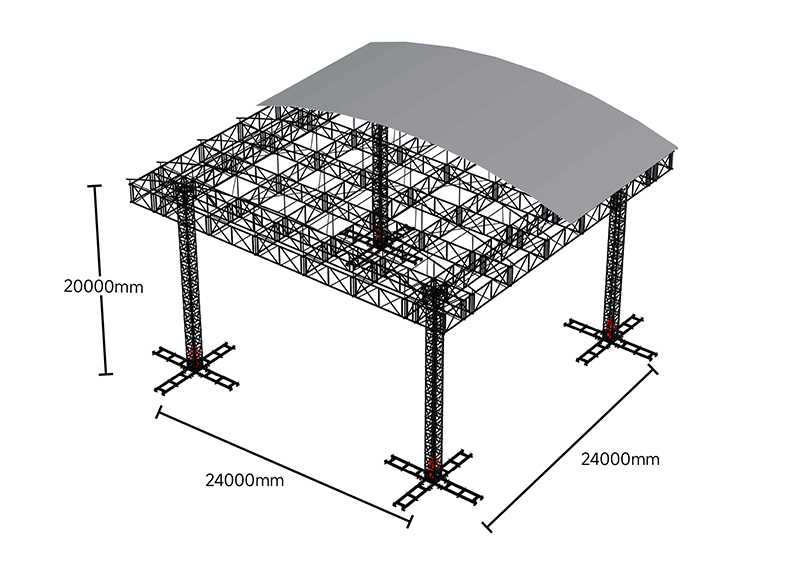

The 15T Electric Lift System from WTC, a leading truss manufacturer, is a standard-grade self-climbing truss erection solution for medium and large events, suitable for standard roofing, medium-sized concerts and brand conferences. As a best-selling product for truss wholesale, it provides 15 tons rated load per column with a recommended erection height of 20m. Columns are made of Q355B structural steel, and beams are available in aluminum alloy or Q355B steel, balancing lightweight performance and heavy load capacity. With self-climbing electric lifting technology, section-by-section column heightening is realized without large cranes. Combined with PLC synchronous control and all-round safety protection, it enables efficient, safe and low-cost erection of medium and large truss roofing, making it a core solution for medium and large event projects.
| Item | 5T Electric Cylinder System | 15T Standard / Triple-Use | 30T Standard | 30T Heavy-Duty |
| Product Positioning | Small events / lightweight roofing | Medium-large events / standard roofing | Large / extra-large heavy-load projects | Large / extra-large heavy-load projects |
| Rated Load per Column/Set | 5T | 15T | 30T | 30T |
| Recommended Working Height | 16m | 20m | 24m | 28m |
| Main Material | Column: Q355B Beam: Aluminum allo | Column: Q355B, Beam: Aluminum alloy / Q355 | Column: Q355B Beam: Q355B | Column: Q355B Beam: Q355B |
| Column Specs | Main tube 50×50×4mm | Main tube 60×60×4mm | Main tube 80×80×6mm | Main tube 100×100×8mm |
| Column Single Section | 650×50mm | 800×60mm | 1000×80mm | 1000×100mm |
| Beam Structural Specs | 580×1010mm ,680×1200mm | 580×1010mm ,680×1200mm ,1500×80mm Single row | 1800×100mm Single row | 2000×100mm Single piece |
| Beam Specs | - | Main tube 80×80×6mm | Main tube 100×100×8mm | Main tube 100×100×8mm |
| Beam Single Section | - | 1500×80mm | 1800×100mm | 2000×100mm |
| Base Plate Specs | 1500×1500×350mm | 1760×1760×350mm | 2000×2000×500mm | 2000×2000×500mm |
| Forklift Required | Optional | Yes | Yes | Yes |
| Electric Cylinder Stroke | 1100mm | 1100mm | 1100mm | 1100mm |
| Lifting Speed | 50mm/s | 50mm/s | 50mm/s | 50mm/s |
| Synchronization Accuracy | 0.1mm | 0.1mm | 0.1mm | 0.1mm |
| Control System | PLC synchronized control | PLC synchronized control | PLC synchronized control | PLC synchronized control |
| Power Supply | 3-phase 380V | 3-phase 380V | 3-phase 380V | 3-phase 380V |
Leveraging the high structural strength of steel, standardized modular quick-assembly design and outstanding cost-effectiveness, steel trusses are widely used in diverse scenarios including stage lighting support for performances, main structure construction for exhibition booths, outdoor advertising display frames, temporary construction protection, and warehouse material support.
Welcome to our FAQ, we are so happy to have you here and as a client.
We have tried to answer the most common questions.
The recommended safe working height is 20m. For erection beyond this height, specific load, height and site wind conditions shall be provided for special structural checking and safety assessment by the technical team.
The 15T system has relatively heavy components. Forklift is required for component transfer during installation, and it is recommended to improve erection efficiency and ensure construction safety.
Aluminum alloy beams are preferred for projects focusing on lightweight roofing and conventional lighting & audio to reduce weight. For projects mounting heavy LED screens and complex hanging equipment, Q355B steel beams are recommended to ensure load-bearing safety.
The main structure can be completed within 1-2 days with 4-6 skilled workers and 1 forklift. The specific cycle varies with span, height and complexity of auxiliary facilities.
It is applicable to truss roofing and stage erection for medium and large events such as medium-sized concerts, festival sub-stages, large brand conferences, main exhibition booths and outdoor event supporting facilities.
