SY-5002
SY-5002

SY-5002

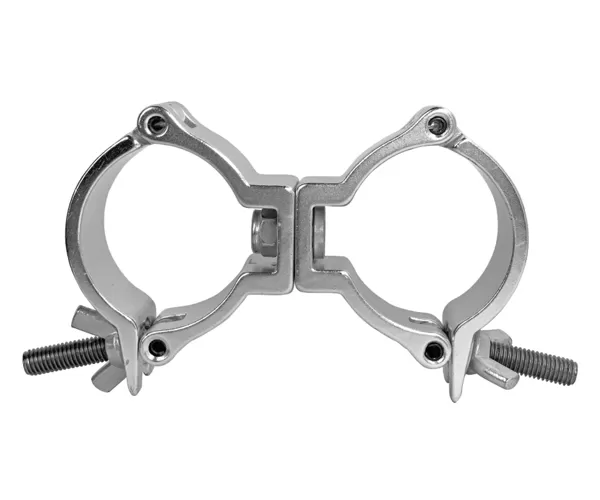

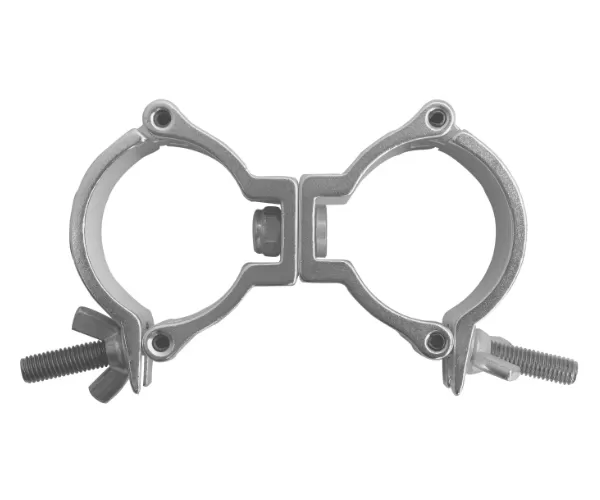

The SY‑5002 is a double‑ring swivel truss clamp of MINI 360QR Swivel series, a universal rigging fitting for professional event constructions. Both rings fit Φ48‑51mm truss tubing with a rated load capacity of 100kg. The central swivel hinge enables 360‑degree angular adjustment for flexible multi‑angle connection between two aluminium truss tubes. Built with high‑strength durable construction, it is widely used for complex truss shapes in concerts, exhibitions and theatres. Compatible with various aluminum truss system, it serves as key hardware for special‑shape truss projects from truss manufacturers and truss wholesale.

SPECIFICATIONS

MINI 360QR SwivelSY 5002
Φ48-51mm load capacity 100kgs


Advantages of SY-5002

360‑Degree Swivel Adjustment 360‑Degree Swivel Adjustment
360‑Degree Swivel Adjustment
Central hinge free rotation for easy multi‑angle truss connection
Dual‑Ring Standard Size Dual‑Ring Standard Size
Dual‑Ring Standard Size
Both rings fit Φ48‑51mm tubing, compatible with mainstream 50‑series aluminium truss
Trustworthy Rated Load Trustworthy Rated Load
Trustworthy Rated Load
100 kg rated load meets safety requirements for stage equipment rigging
MINI 360QR Structure MINI 360QR Structure
MINI 360QR Structure
Wing‑bolt locking for easy assembly‑disassembly, ideal for frequent touring use
Complex Shape Construction Complex Shape Construction
Complex Shape Construction
Supports angled & cross truss layout to diversify stage structural solutions
Truss‑System Compatibility Truss‑System Compatibility
Truss‑System Compatibility
Fits aluminum truss system for truss manufacturers and truss wholesale projects

Description of SY-5002

SY-5002SY-5002


Products Associated with SY-5002

Truss Clamp
/
SY-3501
Clamp
SY-3501
SY-5001
Clamp
SY-5001
SY-5001E
Clamp
SY-5001E
SY-5003
Clamp
SY-5003
SY-5004
Clamp
SY-5004
SY-5006U
Clamp
SY-5006U
SY-5007
Clamp
SY-5007
SY-5008
Clamp
SY-5008

Can't Find a Suitable Product?

Click to View Other Products!
Small Truss
Small Truss
100mm-305mm
Medium Truss
Medium Truss
400mm-529mm
Large Truss
Large Truss
600mm-1010mm

FAQ

Welcome to our FAQ, we are so happy to have you here and as a client.

We have tried to answer the most common questions.


Q
What type of product is SY‑5002 truss clamp and what is its signature structure?
-
+

SY‑5002 is a double‑ring swivel truss clamp from MINI 360QR Swivel series. It has two separate clamping rings with a central swivel hinge for 360‑degree rotation, used for universal connection between two truss tubes.

Q
What are its compatible tube diameter and rated load capacity?
-
+

Both clamping rings fit Φ48‑51mm truss tubing, with a rated load capacity of 100 kg.

Q
What is the function of the 360‑degree swivel feature in real‑world setup?
-
+

The swivel hinge allows two truss tubes to form arbitrary angles, facilitating angled, cross‑shaped, polygonal and other non‑standard truss forms and solving connection challenges for complex stage structures.

Q
What application scenarios is it mainly for?
-
+

It is widely used in concerts, theatres and trade shows for building special‑shape structures of aluminium truss system, and also for multi‑angle equipment suspension.


Q
How about its locking method? Is it suitable for touring projects with frequent disassembly?
-
+

It adopts wing‑bolt manual locking. Tightening and disassembly can be done without tools. Its robust wear‑resistant structure is well‑suited for touring events requiring repeated setup and teardown.

Q
Which customers are suitable for bulk purchase?
-
+

It fits truss manufacturers and truss wholesale buyers. As supporting hardware for aluminum truss system, it can be delivered in bulk together with truss products for various custom‑shape truss projects.
