Electric Lift Speaker Tower – Making Event Rigging Faster and Safer

In live event scenarios such as stage performances, exhibition builds, and temporary canopy installations, traditional truss tower erection is often constrained by the access and working space required for large lifting equipment. This electric lift speaker tower is purpose‑designed for line array speaker rigging and lightweight canopy framing, solving industry‑pain points including crane dependency, inconvenient height adjustments, and high‑risk work at height.

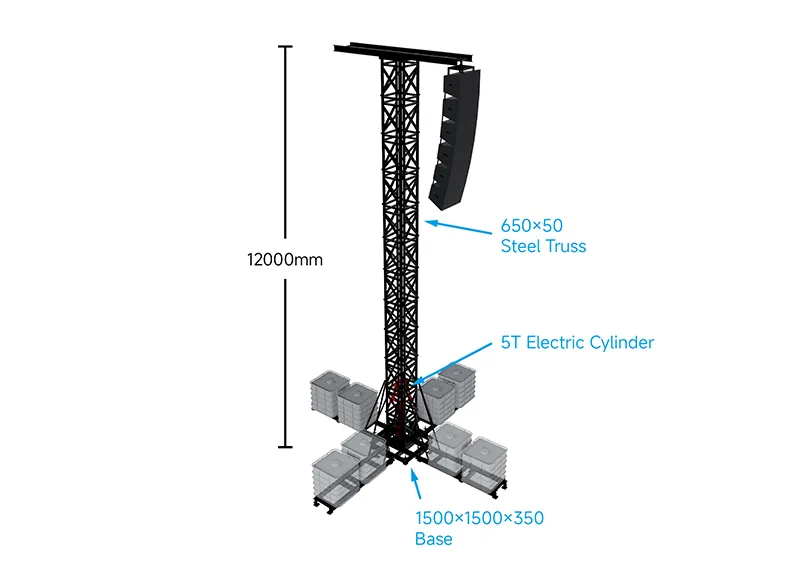

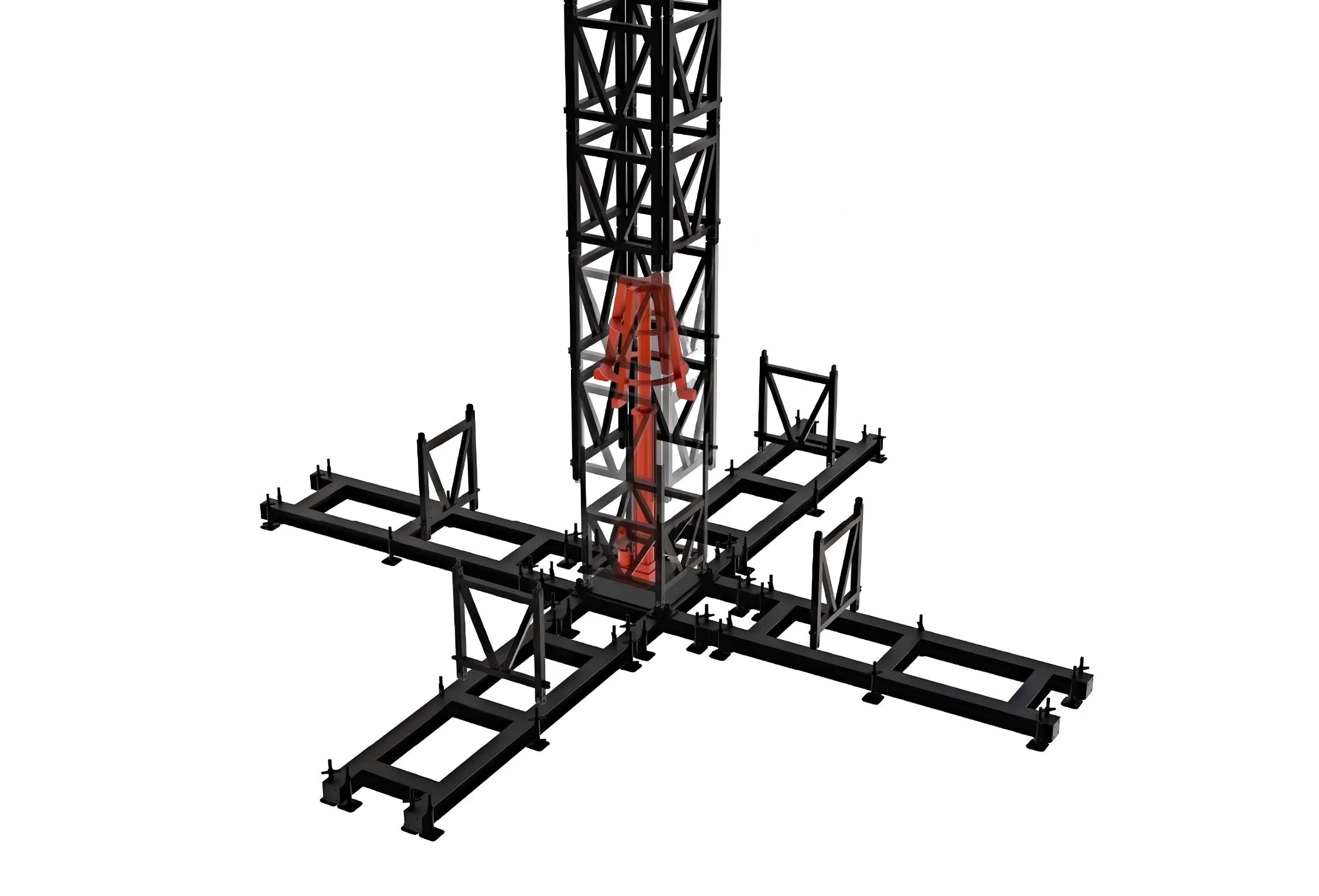

The main structure is fabricated from high‑strength Q355B steel truss sections, paired with a cross‑spread outrigger base that provides a large ground‑contact footprint for exceptional overturning resistance, ensuring robust stability even on outdoor sites. The unit is driven by an integrated electric cylinder hoist mechanism – eliminating the need for chain blocks or mobile cranes. After ground‑level assembly, the electrically controlled system enables smooth lifting and lowering of suspended loads, while also allowing precise height trimming of line array speakers to suit acoustic coverage requirements. This drastically reduces exposure to high-altitude work and significantly speeds up on‑site setup.

The modular quick‑assembly design features split‑section truss components for easy disassembly, transport, and storage. Beyond line array speaker suspension, the tower also accommodates lightweight lighting fixtures and simple temporary canopy frames, making it suitable for diverse applications such as outdoor roadshows, corporate events, small‑to‑medium music festivals, sports event sound reinforcement, and commercial launches.

Compared with conventional fixed towers, this electric‑lift solution allows speakers to be attached at ground level before being hoisted into position, greatly minimising rigging work at height. The cross‑spread base can be ballasted as needed, and deploys safely on both grass and hardstanding surfaces, offering high site compatibility. Combining load capacity with operational flexibility, this tower delivers a cost‑effective rigging solution for small‑to‑mid‑scale rental and production projects.
