【WTC】Spigot Truss TT104 Series

Spigot Truss TT104 Series


TT104 Truss Series


High-quality Raw Material

WTC firmly believes that the quality should be controlled from the raw materials, so we choose the national standard aluminum alloy EN-AW 6082 T6 as the raw material for TT104 truss produced in our aluminum truss factory, and it is designed by professional engineer to ensure the stability of the truss structure and the beautiful appearance, which help to present a grand visual experience.


Good Functional

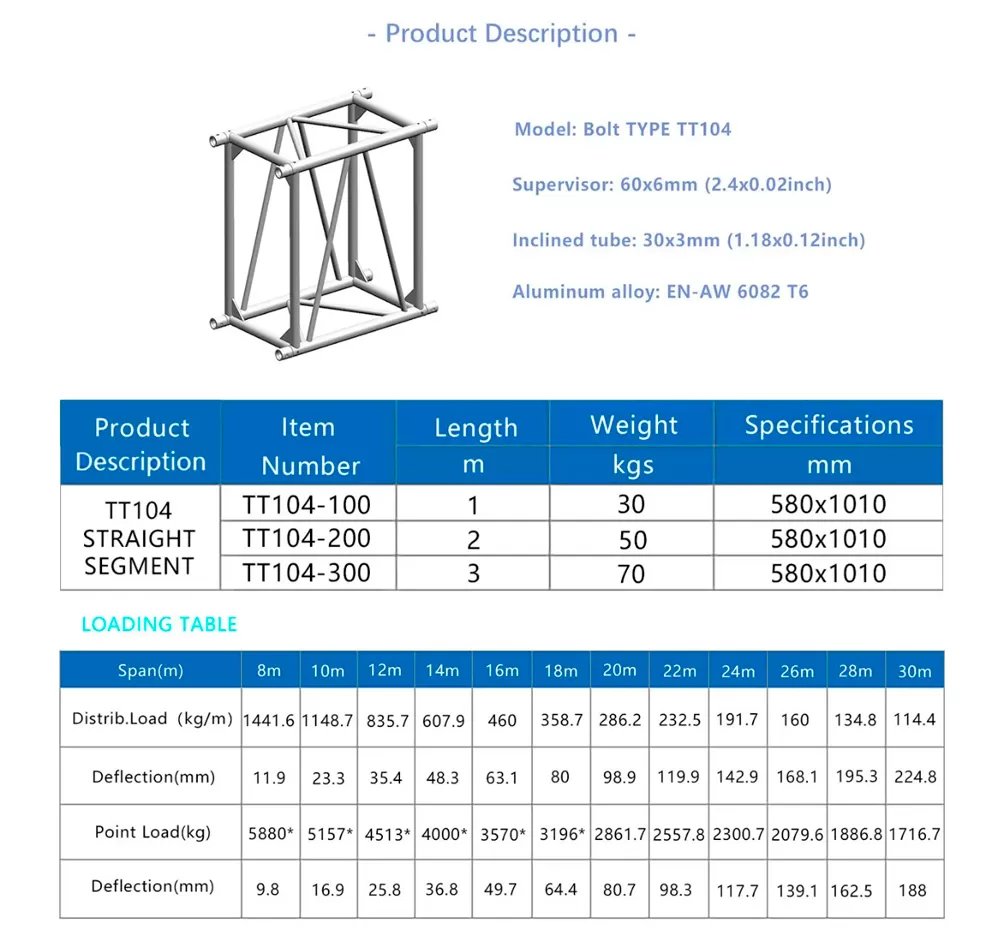

TT104 series is a heavy-duty truss system, and its scope of application for lighting show structure and large stage performance projects. Normally, the maximum span of the TT104 truss is 34 meters, average loading is about 84kg per meter, total loading is about 2,856kg, and the deformation is 290.2mm; the center point loading is about 1,428.4kg, the deformation is 245.7mm, and the overweight loading (1.5 times) is about 4,284kg.


Excellent Service

Our aluminium truss for sale has passed the safety tests from TÜV SÜD, which has significantly improved on organizational efficiency and product quality. We can provide a customized service to our clients, such as various RAL colors surface treatment and customized size, as well as different style and shape, etc.

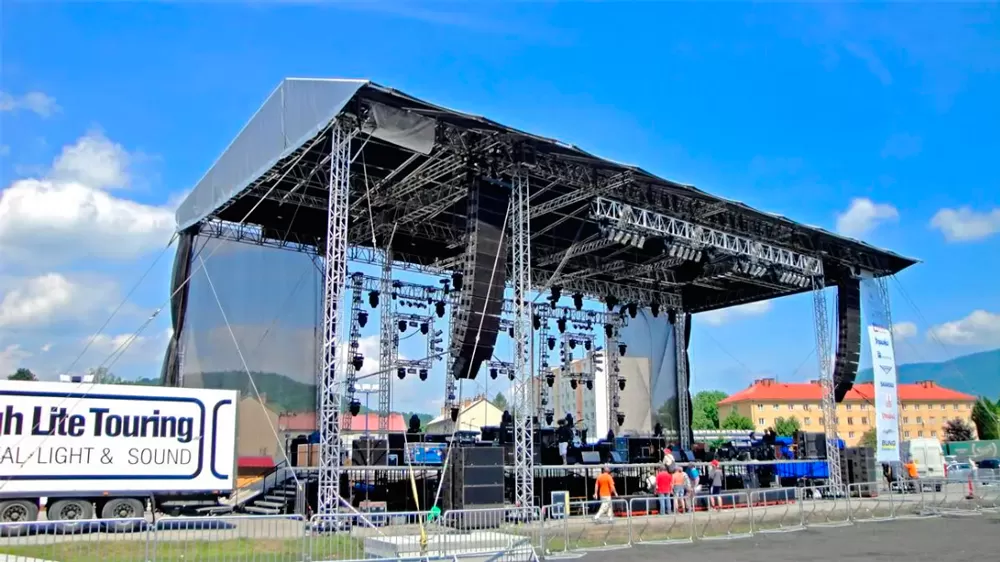

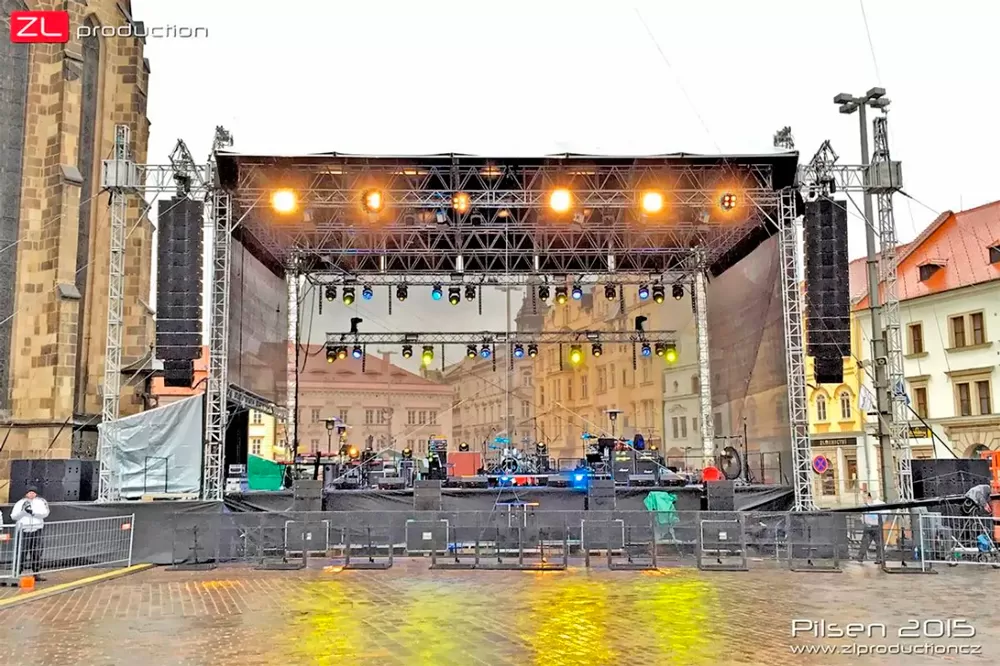

Examples of pictures


Spigot Truss TT104 Series


Spigot Truss TT104 Series
