It adopts TT45 & TS45 pin-type straight truss. Overall dimension 12×7×11 m, max load capacity 2000 kg, fits maximum 10×8 m LED screen, total construction weight 1000 kg.
-
- EN
-

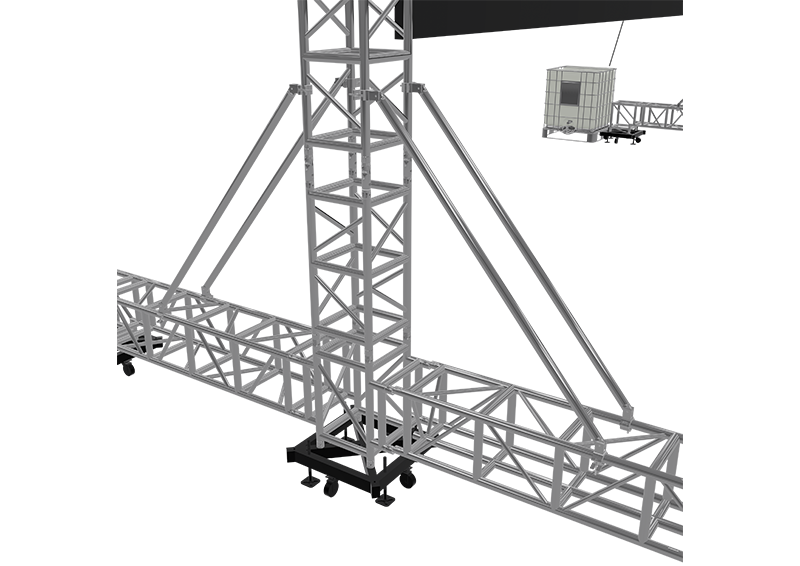

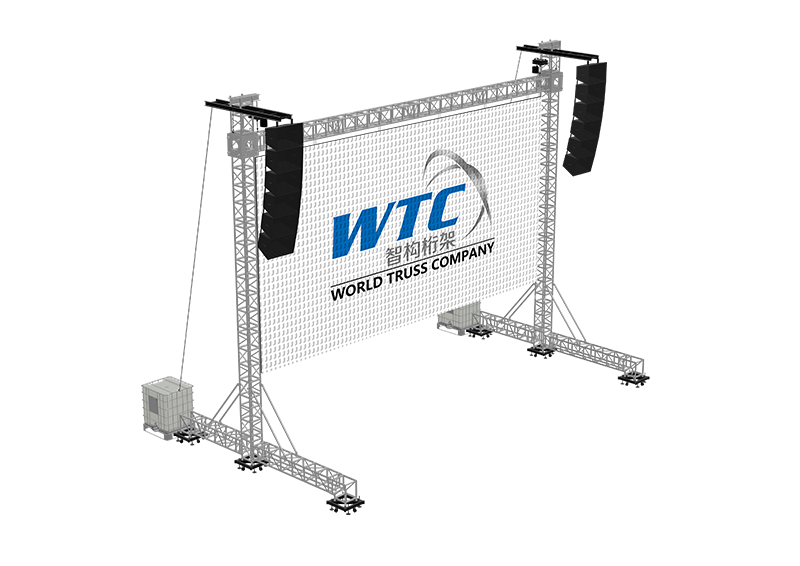

WTC LED Backdrop Truss System The WTC LED Backdrop Truss System has an overall dimension of 12m ( length) × 7m (width) × 11m ( height). Composed of bottom beams, columns, cross beams and roof columns, the WTC system adopts TT45 and TS45 series pin-type straight trusses, which are firmly connected, easy to assemble and suitable for temporary events requiring quick scene changes.
Specifications
| Max. Dimension | 6.35×4.62m |
| Max. LED Size | 5×3mm |
| Max. Height | 8.49m |
| Max. Load Capacity | 1200kg |
| Total Weight of construction | 650kg |
Welcome to our FAQ, we are so happy to have you here and as a client.
We have tried to answer the most common questions.
It adopts TT45 & TS45 pin-type straight truss. Overall dimension 12×7×11 m, max load capacity 2000 kg, fits maximum 10×8 m LED screen, total construction weight 1000 kg.

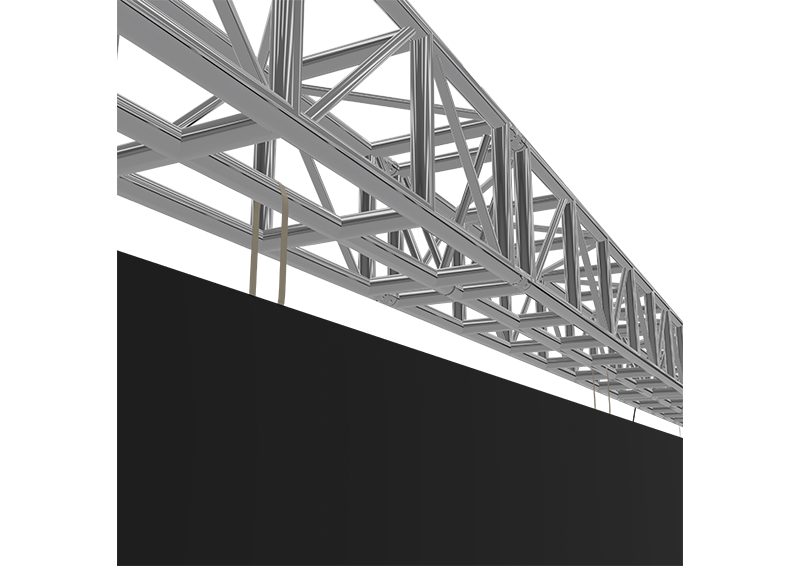

The beam is equipped with multiple built-in reinforced main tubes to greatly improve load capacity and bending resistance, reduce screen shaking and keep heavy LED displays flat and stable.

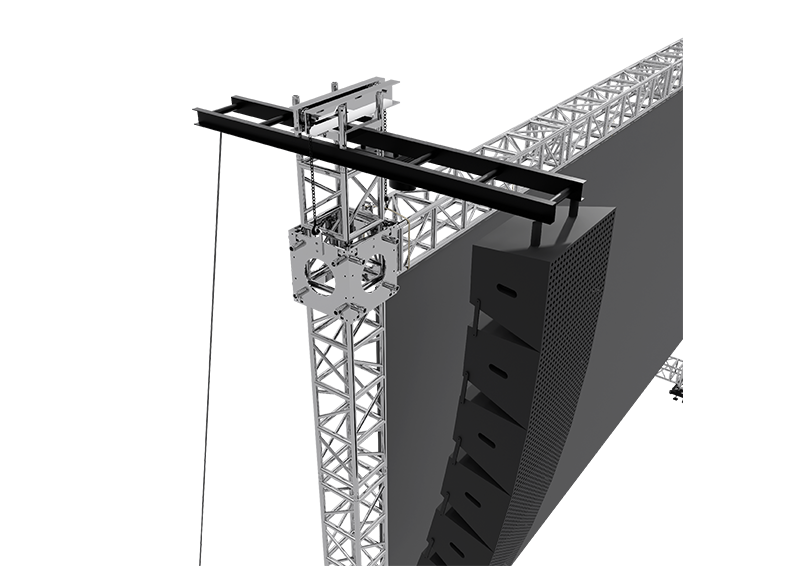

Yes. The beam is fitted with reinforced cross arms. Within rated load, it can hang LED screens and line array speakers simultaneously to realize integrated audio-visual rigging and optimize stage layout.
Large music festivals, mass commercial touring shows, stadium galas, large exhibition booths and enterprise summits for giant main LED backdrop construction.
We support truss wholesale for complete sets. Custom layout based on venue span & height is available. One-stop delivery with lifting towers and full series aluminium truss can be arranged.
