It is made of EN AW-6082 T6 aluminium alloy, main tube Φ50×3mm, brace tube Φ20×2mm, cross-section 290×290mm.
-
- EN
-

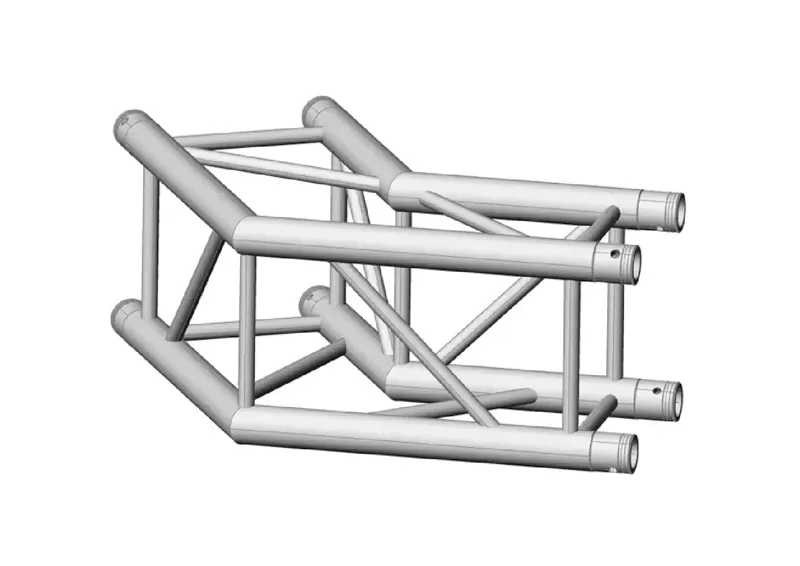

2-way 120° corner
| Length (L) | 0.5m (1.64ft) |
| Angle (A) | 2-way 120° corner |
| Weight (W) | 6.3kgs(13.89lbs) |
| Span(m) | 2m | 4m | 6m | 8m | 10m | 12m |
| Distrib.Load(kg/m) | 1420 | 707 | 344 | 193 | 121 | 82 |
| Deflection(mm) | 1.7 | 13.3 | 33.2 | 59.8 | 93.9 | 134.8 |
| Point Load(kg) | 2840 | 1544 | 1033 | 771 | 607 | 491 |
| Deflection(mm) | 2.7 | 11.7 | 26.7 | 48.3 | 76.2 | 110.1 |
Made of high-strength materials, lightweight, easy to assemble and stable in load-bearing. Suitable for exhibitions, stages, advertising, etc. Modular design for flexible size adjustment, wind-resistant and anti-deformation, practical and economical.
Welcome to our FAQ, we are so happy to have you here and as a client.
We have tried to answer the most common questions.
It is made of EN AW-6082 T6 aluminium alloy, main tube Φ50×3mm, brace tube Φ20×2mm, cross-section 290×290mm.
Standard lengths: 0.25/0.5/0.75/0.875/1/1.5/2/2.5/3/3.5/4/4.5m, maximum single length 4.5m.
Multi-angle corners HT34-C19/C20/C21/C22/C23/C30; multi-way cubes HT34-C41/C55/C60; T-joints HT34-T35/T42; cube module HT34-MCB; steel base plate HT34-BP.
Perfect for medium-small music festivals, touring shows, hotel banquets, exhibition booths and corporate summits. It can cooperate with lifting towers, manual & electric hoists, light carts to build integrated lighting & audio aluminium truss system.
We support large-volume truss wholesale for complete HT34 sets with all standard sizes in stock. Custom non-standard lengths are available, one-stop delivery matched with full series aluminium truss towers, hoists and light transport carts.
