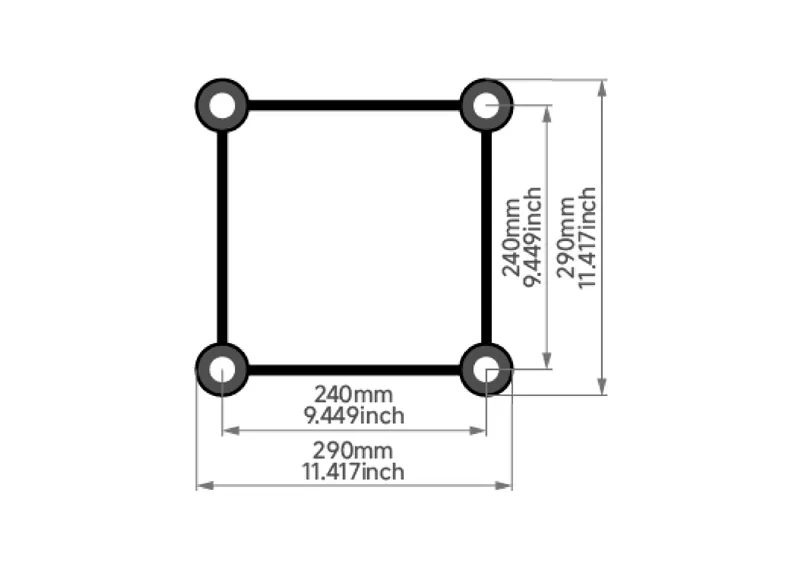

It is made of EN AW-6082 T6 aluminium alloy, main tube Φ50×3mm, brace tube Φ20×2mm, cross-section 290×290mm.
-
- EN
-

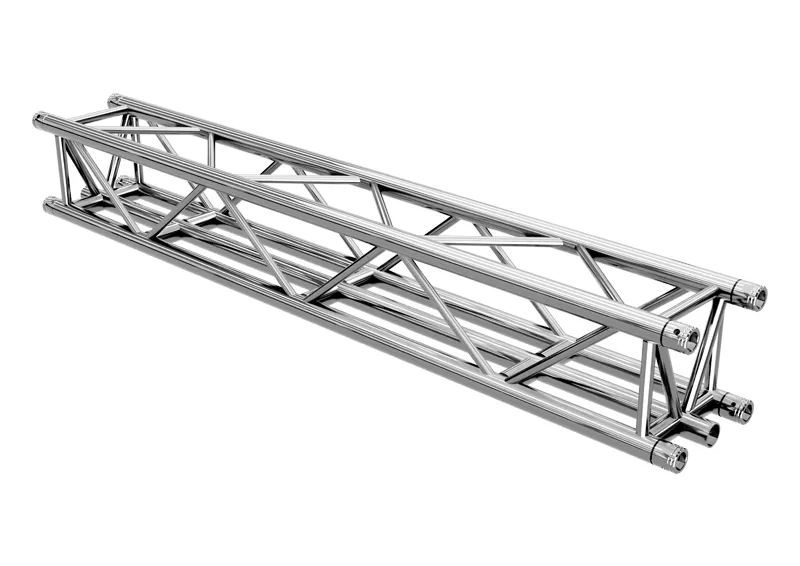

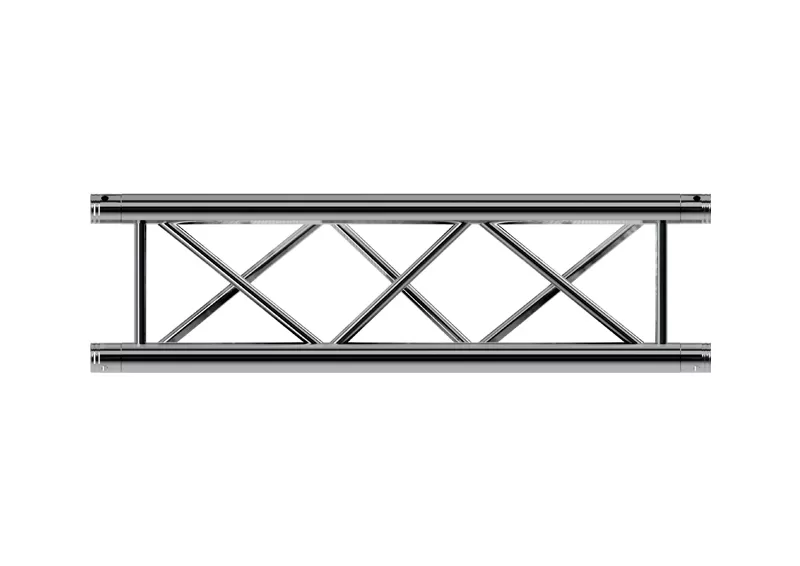

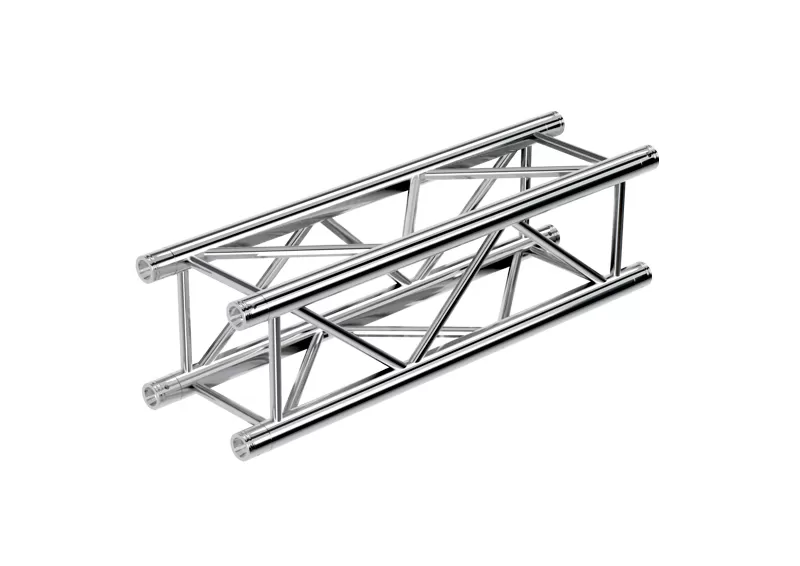

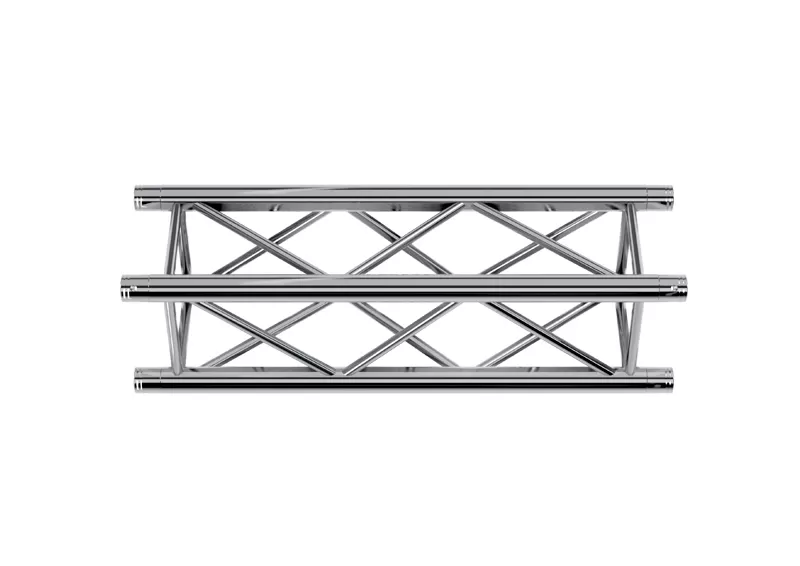

The HT34 Square Truss, crafted from high-strength aluminum alloy EN AW-6082 T6, features a 290 x 290 mm square profile ideal for versatile staging, lighting, and exhibition setups, representing the quality engineered by top square truss manufacturers. Its robust design ensures excellent load capacity, lightweight handling, and easy assembly—delivering reliable performance for demanding event and structural applications.
| Main tube | 50x3mm(2x0.12 inch) |
| Braces | 20x2mm(0.8x0.08 inch) |
| Alloy | EN-AW 6082-T6 |
| Span(m) | 2m | 4m | 6m | 8m | 10m | 12m |
| Distrib.Load(kg/m) | 1422 | 493 | 223 | 127 | 79 | 51 |
| Deflection(mm) | 2.4 | 13.7 | 31.8 | 58 | 90.5 | 126.4 |
| Point Load(kg) | 1919 | 987 | 670 | 507 | 394 | 308 |
| Deflection(mm) | 2.6 | 11 | 25.6 | 46.9 | 73.6 | 103.6 |
Made of high-strength materials, lightweight, easy to assemble and stable in load-bearing. Suitable for exhibitions, stages, advertising, etc. Modular design for flexible size adjustment, wind-resistant and anti-deformation, practical and economical.
Welcome to our FAQ, we are so happy to have you here and as a client.
We have tried to answer the most common questions.
It is made of EN AW-6082 T6 aluminium alloy, main tube Φ50×3mm, brace tube Φ20×2mm, cross-section 290×290mm.
Standard lengths: 0.25/0.5/0.75/0.875/1/1.5/2/2.5/3/3.5/4/4.5m, maximum single length 4.5m.
Multi-angle corners HT34-C19/C20/C21/C22/C23/C30; multi-way cubes HT34-C41/C55/C60; T-joints HT34-T35/T42; cube module HT34-MCB; steel base plate HT34-BP.
Perfect for medium-small music festivals, touring shows, hotel banquets, exhibition booths and corporate summits. It can cooperate with lifting towers, manual & electric hoists, light carts to build integrated lighting & audio aluminium truss system.
We support large-volume truss wholesale for complete HT34 sets with all standard sizes in stock. Custom non-standard lengths are available, one-stop delivery matched with full series aluminium truss towers, hoists and light transport carts.
