SPECIFICATIONS
| Main tube | 50x4mm(2x0.16 inch) |
| Vice tube | 50x4mm(2x0.16 inch) |
| Braces | 30x3mm(1.2x0.12 inch) |
| Alloy | EN-AW 6082-T6 |

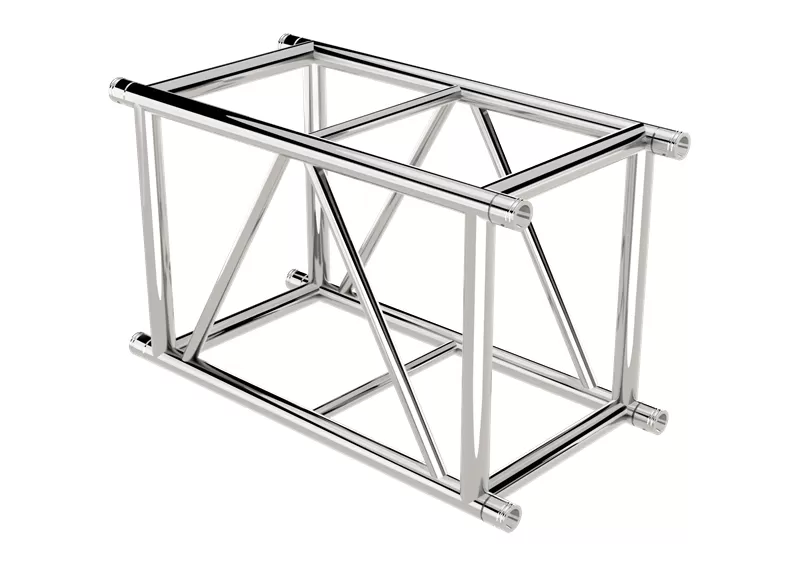

TT65 Straight Segment
| Span(m) | 6m | 8m | 10m | 12m | 14m | 16m | 18m | 20m | |||
| Distrib.Load(kg/m) | 864 | 560 | 345 | 237 | 167 | 108 | 69 | 52 | |||
| Deflection(mm) | 18.5 | 32 | 46 | 62.8 | 81.1 | 95.5 | 106.2 | 113 | |||
| Point Load(kg) | 1700 | 1520 | 1335 | 1205 | 1045 | 905 | 755 | 600 | |||
| Deflection(mm) | 10 | 18.9 | 30 | 46.5 | 65.4 | 83.2 | 100 | 116.6 | |||
1. Heavy-Duty Construction – 50×4 mm tubing ensures outstanding strength
2. High Load Capacity – Supports long spans (up to 20 m) with reliable load-bearing performance.
3. Fast & Secure Assembly – Utilizes a spigot connection system for quick, tool-free setup and breakdown.
4. Wide Application Range – Perfect for stages, roofs, exhibition grids, and touring event structures.
5. Lightweight, Durable Alloy – Made from EN‑AW 6082‑T6 aluminum, offering high strength-to-weight ratio and corrosion resistance.
6. Highly Reliable – Part of a system designed for professional-grade performance in demanding environments.
