It is manufactured from high-strength EN AW-6082 T6 aviation aluminum alloy. Main tube Φ50×2mm, diagonal brace tube Φ20×2mm, square outer profile size 290×290mm, a heavy-duty square aluminium truss.
-
- EN
-

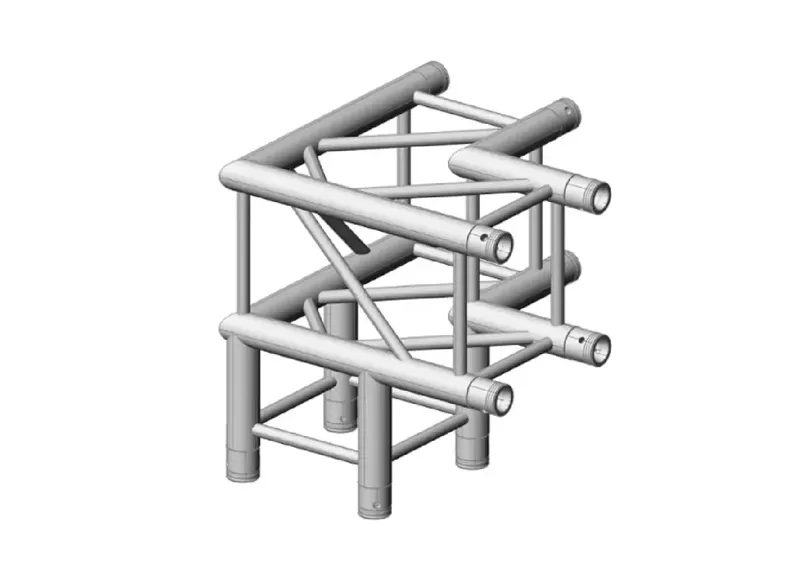

The F34-C30 3-way 90°corner is constructed from high-strength EN AW-6082 T6 aluminum, featuring 50 mm main tubes and 20 mm diagonal braces with a 2 mm wall thickness. Designed for 90° connections, it offers a 290 mm external dimension and supports up to 18-meter spans. Ideal for stages, exhibitions, and event structures, it provides quick assembly, modular flexibility, and reliable performance
| Length (L) | 0.5m (1.64ft) |
| Angle (A) | 3-way 90°corner |
| Weight (W) | 5.9kgs(13.01lbs) |
| Span(m) | 2m | 4m | 6m | 8m | 10m | 12m |
| Distrib.Load(kg/m) | 1422 | 493 | 223 | 127 | 79 | 51 |
| Deflection(mm) | 2.4 | 13.7 | 31.8 | 58 | 90.5 | 126.4 |
| Point Load(kg) | 1919 | 987 | 670 | 507 | 394 | 308 |
| Deflection(mm) | 2.6 | 11 | 25.6 | 46.9 | 73.6 | 103.6 |
Made of high-strength materials, lightweight, easy to assemble and stable in load-bearing. Suitable for exhibitions, stages, advertising, etc. Modular design for flexible size adjustment, wind-resistant and anti-deformation, practical and economical.
Welcome to our FAQ, we are so happy to have you here and as a client.
We have tried to answer the most common questions.
It is manufactured from high-strength EN AW-6082 T6 aviation aluminum alloy. Main tube Φ50×2mm, diagonal brace tube Φ20×2mm, square outer profile size 290×290mm, a heavy-duty square aluminium truss.
Available standard lengths: 0.25m, 0.5m, 0.75m, 1m, 1.5m, 2m, 2.5m, 3m, 3.5m, 4m, 4.5m. Unit weight ranges from 2.56kg to 22.76kg with heavy-duty high-strength design.
It is widely applied for large performance stages, music festival lighting & sound rigs, large exhibition booths, stadium hanging projects and commercial touring shows. Its maximum safe span reaches 12 meters with outstanding load capacity, complying with international safety standards as the core profile of professional event aluminum truss system.
It supports full series of matching fittings including corners, T-joints, cross connectors, curved truss F34-C and base plate F34-BP, such as F34-C19, F34-C20, F34-C21, F34-T35, F34-C60 and more. Equipped with original spigot connectors, it can be freely spliced to construct complete modular aluminium truss system.
We support global bulk truss wholesale with all sizes in stock. Custom special lengths and anodized surface colors are available, one-stop package delivery for full F34 truss and accessories. The products hold TÜV, ISO, CE multiple international safety certifications.
