It is manufactured from high-strength EN AW-6082 T6 aviation aluminum alloy. Main tube Φ50×2mm, diagonal brace tube Φ20×2mm, square outer profile size 290×290mm, a heavy-duty square aluminium truss.
-
- EN
-
Crafted from EN AW‑6082 T6 aluminum with 50 mm main tubes and 20 mm braces, the F34 C30 90° corner delivers robust support in a compact 290 mm profile. Certified for spans up to 18 m, it's ideal for stages, exhibitions, and shop fittings—ensuring precise alignment, quick connection with conical connectors, and professional structural integrity.
The F34 Square Truss Corner (C30 90°) streamlines structural joins with reliable strength and ease. Its sleek, precise design enhances installation speed and visual appeal—making it a staple in event staging, retail fixtures, and exhibition architecture. Seamlessly combining modularity with performance, this corner unit exemplifies structural elegance.
| Length (L) | 1m (3.28ft) |

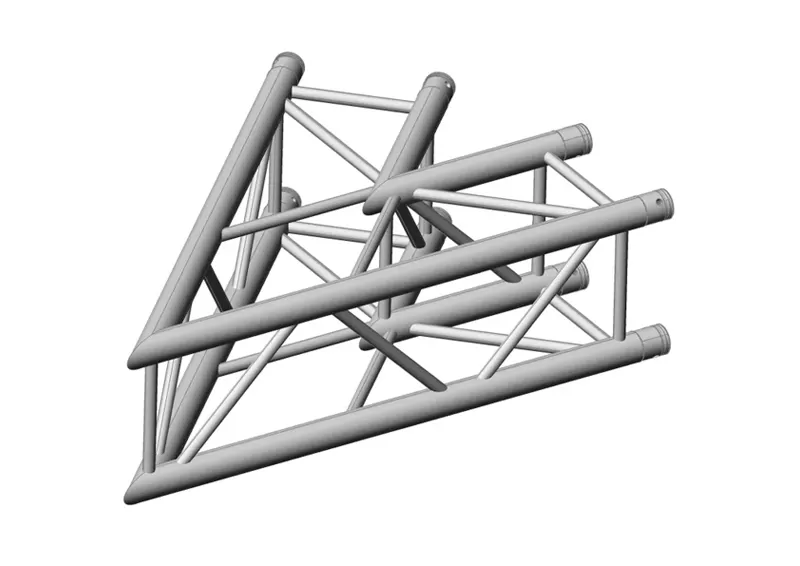

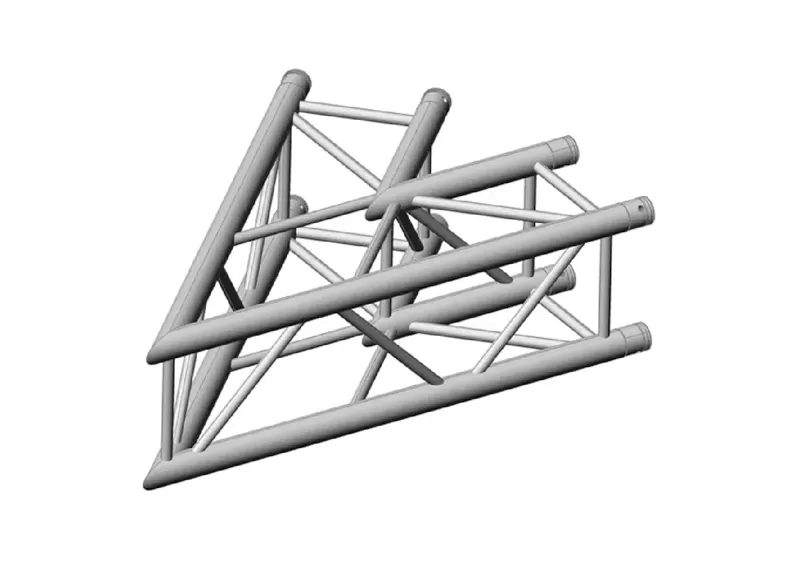

| Angle (A) | 2-way 45° corner |
| Weight (W) | 6.9kgs (15.21lbs) |
| Span(m) | 2m | 4m | 6m | 8m | 10m | 12m |
| Distrib.Load(kg/m) | 1422 | 493 | 223 | 127 | 79 | 51 |
| Deflection(mm) | 2.4 | 13.7 | 31.8 | 58 | 90.5 | 126.4 |
| Point Load(kg) | 1919 | 987 | 670 | 507 | 394 | 308 |
| Deflection(mm) | 2.6 | 11 | 25.6 | 46.9 | 73.6 | 103.6 |
Made of high-strength materials, lightweight, easy to assemble and stable in load-bearing. Suitable for exhibitions, stages, advertising, etc. Modular design for flexible size adjustment, wind-resistant and anti-deformation, practical and economical.
Welcome to our FAQ, we are so happy to have you here and as a client.
We have tried to answer the most common questions.
It is manufactured from high-strength EN AW-6082 T6 aviation aluminum alloy. Main tube Φ50×2mm, diagonal brace tube Φ20×2mm, square outer profile size 290×290mm, a heavy-duty square aluminium truss.
Available standard lengths: 0.25m, 0.5m, 0.75m, 1m, 1.5m, 2m, 2.5m, 3m, 3.5m, 4m, 4.5m. Unit weight ranges from 2.56kg to 22.76kg with heavy-duty high-strength design.
It is widely applied for large performance stages, music festival lighting & sound rigs, large exhibition booths, stadium hanging projects and commercial touring shows. Its maximum safe span reaches 12 meters with outstanding load capacity, complying with international safety standards as the core profile of professional event aluminum truss system.
It supports full series of matching fittings including corners, T-joints, cross connectors, curved truss F34-C and base plate F34-BP, such as F34-C19, F34-C20, F34-C21, F34-T35, F34-C60 and more. Equipped with original spigot connectors, it can be freely spliced to construct complete modular aluminium truss system.
We support global bulk truss wholesale with all sizes in stock. Custom special lengths and anodized surface colors are available, one-stop package delivery for full F34 truss and accessories. The products hold TÜV, ISO, CE multiple international safety certifications.
