It is made of high-strength aviation-grade EN AW-6082 T6 aluminum alloy. Main tube Φ35×2mm, brace Φ8mm, triangular profile size 195.2×220mm, a compact 220mm aluminium truss profile.
-
- EN
-

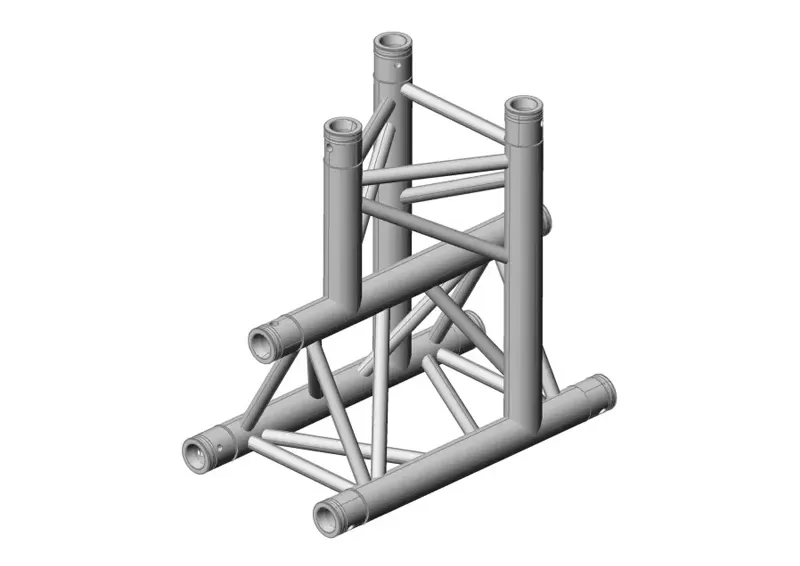

3-way vertical T-junction
| Length (L) | 0.5m (1.64ft) |
| Angle (A) | 3-way vertical T-junction |
| Weight (W) | 2.1kgs(4.63lbs) |
| Span(m) | 2m | 3m | 4m | 6m | 8m | 10m |
| Distrib.Load(kg/m) | 175 | 114 | 64 | 27 | 14 | 8 |
| Deflection(mm) | 1.5 | 4.9 | 8.9 | 20.1 | 36 | 56.8 |
| Point Load(kg) | 262 | 171 | 127 | 81 | 56 | 41 |
| Deflection(mm) | 1.8 | 4 | 7.2 | 16.5 | 30 | 48.3 |
Made of high-strength materials, lightweight, easy to assemble and stable in load-bearing. Suitable for exhibitions, stages, advertising, etc. Modular design for flexible size adjustment, wind-resistant and anti-deformation, practical and economical.
Welcome to our FAQ, we are so happy to have you here and as a client.
We have tried to answer the most common questions.
It is made of high-strength aviation-grade EN AW-6082 T6 aluminum alloy. Main tube Φ35×2mm, brace Φ8mm, triangular profile size 195.2×220mm, a compact 220mm aluminium truss profile.
Available standard lengths: 0.5m, 1m, 1.5m, 2m, 2.5m, 3m, 3.5m, 4m. Unit weight ranges from 2.2kg to 10.08kg, lightweight for easy carrying and stacking.
It fits light & medium duty structures including banner frames, retail display racks, exhibition booths, permanent lighting rigging and indoor decorative fixtures. Its maximum safe span reaches 10 meters, balancing functionality and elegant appearance.
General it is about 5-15 days.
Our company is located in Panyu, Guangzhou, where near Baiyun Airport and Guangzhou South Railway Station, with convenient transportation. Warmly welcome you to visit us! Yes, 1 year warranty, we'll free to send you the same products if our products is non-artificial damage in its warranty time in our next order.
We are not only manufacturer of high quality stage truss, also we have professional R&D team and engineers for create solutions for your needs.
Provides standard trusses in various specifications and required length, structure design, touring truss, stage equipments and accessories, etc.
