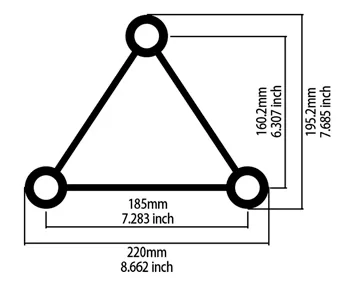

It is made of high-strength aviation-grade EN AW-6082 T6 aluminum alloy. Main tube Φ35×2mm, brace Φ8mm, triangular profile size 195.2×220mm, a compact 220mm aluminium truss profile.
-
- EN
-

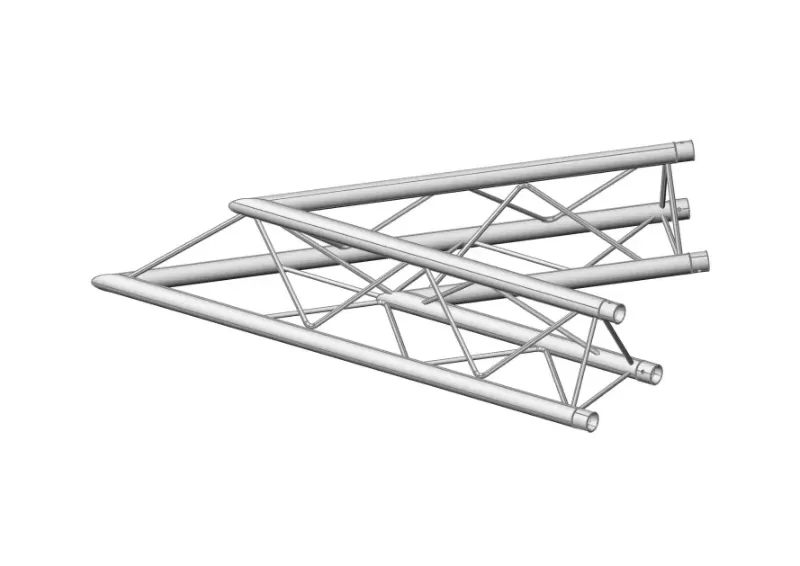

The F23 triangle truss corner is crafted from EN AW-6082 T6 aluminum alloy, main tube dimension in 35*2mm and brace in 8mm, specification in 220mm, ensuring strength and lightweight performance. Designed for precise 3-way or 4-way connections, it guarantees stability and seamless integration. Ideal for stages, exhibitions, and event structures, it enables versatile configurations, quick assembly, and reliable load-bearing for professional installations.
| Length (L) | 1m (3.28ft) |
| Angle (A) | 2-way 45° corner |
| Weight (W) | 2.6kgs (5.73lbs) |
| Span(m) | 2m | 3m | 4m | 6m | 8m | 10m |
| Distrib.Load(kg/m) | 175 | 114 | 64 | 27 | 14 | 8 |
| Deflection(mm) | 1.5 | 4.9 | 8.9 | 20.1 | 36 | 56.8 |
| Point Load(kg) | 262 | 171 | 127 | 81 | 56 | 41 |
| Deflection(mm) | 1.8 | 4 | 7.2 | 16.5 | 30 | 48.3 |
Made of high-strength materials, lightweight, easy to assemble and stable in load-bearing. Suitable for exhibitions, stages, advertising, etc. Modular design for flexible size adjustment, wind-resistant and anti-deformation, practical and economical.
Welcome to our FAQ, we are so happy to have you here and as a client.
We have tried to answer the most common questions.
It is made of high-strength aviation-grade EN AW-6082 T6 aluminum alloy. Main tube Φ35×2mm, brace Φ8mm, triangular profile size 195.2×220mm, a compact 220mm aluminium truss profile.
Available standard lengths: 0.5m, 1m, 1.5m, 2m, 2.5m, 3m, 3.5m, 4m. Unit weight ranges from 2.2kg to 10.08kg, lightweight for easy carrying and stacking.
It fits light & medium duty structures including banner frames, retail display racks, exhibition booths, permanent lighting rigging and indoor decorative fixtures. Its maximum safe span reaches 10 meters, balancing functionality and elegant appearance.
It adopts integrated conical spigot bolt connection design. Full matching spigot connectors are included in each piece, enabling quick assembly without extra tools, to build complete aluminum truss system freely.
We support large-volume truss wholesale with full sizes in stock. Custom special lengths and anodized surface colors are available on request, plus extended accessories like triangular corners and bases for matching.
