Spec: 1500×80×4000mm; Main & vice tube: 80×80×6mm, Brace: 60×60×4mm; Net weight: 214.8kg per piece.
-
- EN
-

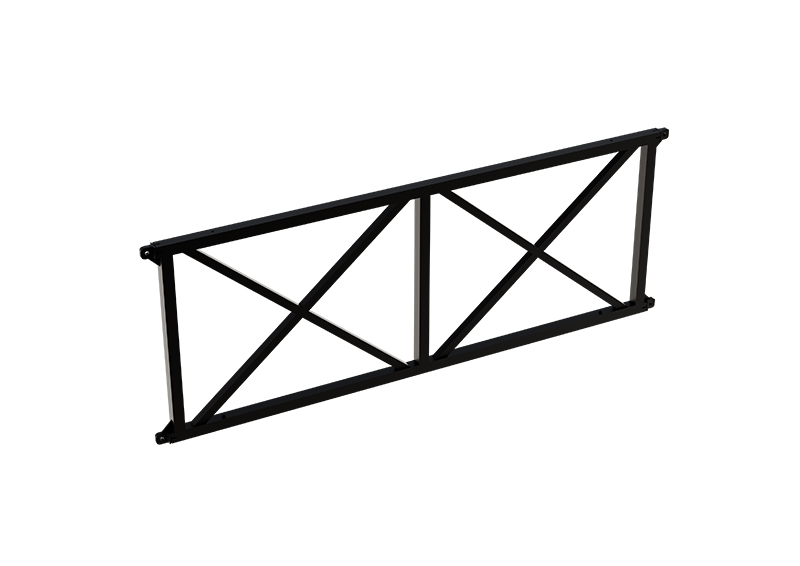

1500×80×4000mm extended heavy-duty Beam Single Piece truss, integrally welded with high-strength Q355B structural steel. Main tubes and vice tubes adopt thickened 80×80×6mm square pipes, cross braces use 60×60×4mm pipes, with a net weight of 214.8kg per piece. Double groups of X cross braces greatly enhance bending resistance for long-span structures. As an extended horizontal load-bearing component for heavy combined truss, multiple pieces can be spliced to form ultra-wide large beam frames, widely applied in outdoor music festivals, commercial performances, large exhibition booths and heavy load lighting & sound rigging in stadiums. As professional truss manufacturers, we offer direct factory supply and truss wholesale bulk orders. It can be matched with matching column single pieces and 5T base to assemble complete heavy truss systems. Full welding process delivers stable structure and outstanding anti-deformation load capacity, with modular design for easy assembly, suitable for all indoor & outdoor large overhead heavy-load rigging projects.
| Item | Spec | Main Tube | Vice Tube | Brace | Weight |
| Beam Single Piece | 1500×80×4000mm | 80×80×6mm-Q355B | 80×80×6mm-Q355B | 60×60×4mm-Q355B | 214.8kg |
Leveraging the high structural strength of steel, standardized modular quick-assembly design and outstanding cost-effectiveness, steel trusses are widely used in diverse scenarios including stage lighting support for performances, main structure construction for exhibition booths, outdoor advertising display frames, temporary construction protection, and warehouse material support.
Welcome to our FAQ, we are so happy to have you here and as a client.
We have tried to answer the most common questions.
Spec: 1500×80×4000mm; Main & vice tube: 80×80×6mm, Brace: 60×60×4mm; Net weight: 214.8kg per piece.
All pipes are Q355B high-strength structural steel. Combined with double X braces and 6mm thick main tubes, it resists bending well for long horizontal spans with higher safety factor under heavy loads.
Main and vice tubes have 6mm wall thickness, braces have 4mm wall thickness, balancing structural strength and unit weight.
We support large-volume truss wholesale with sufficient stock, custom sizes and anti-rust surface coating are available on request.
It can be combined with matching column single pieces and 5T base to form full heavy truss systems, used for outdoor music festivals, commercial performance stages, large exhibition booths, overhead lighting & sound rigging in stadiums.
