Spec:1500×80×2000mm; Main/Vice tube:80×80×6mm, Brace:60×60×4mm; Net weight:123.3kg per piece.
-
- EN
-

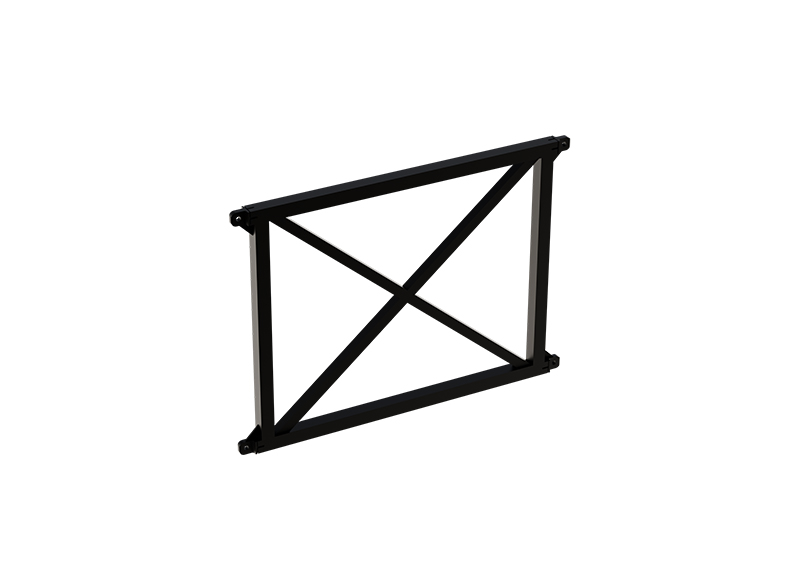

1500×80×2000mm heavy-duty Beam Single Piece truss, fully welded with high-strength Q355B structural steel. Main tubes and vice tubes adopt thickened 80×80×6mm square pipes, cross braces use 60×60×4mm pipes, with a net weight of 123.3kg per piece. The X cross brace greatly improves horizontal bending resistance. As the core horizontal load-bearing accessory for heavy combined truss, multiple pieces can be spliced to build large-span beam frames, widely used for large stages, music festival lighting & sound rigging, exhibition booths and high-altitude heavy-load construction projects. As professional truss manufacturers, we provide truss wholesale bulk supply service. It can be matched with matching column single pieces and 5T base to assemble complete load-bearing truss systems, featuring solid welding, strong anti-deformation load capacity and modular easy assembly, suitable for all indoor and outdoor large rigging projects.
| Item | Spec | Main Tube | Vice Tube | Brace | Weight |
| Beam Single Piece | 1500×80×2000mm | 80×80×6mm-Q355B | 80×80×6mm-Q355B | 60×60×4mm-Q355B | 123.3kg |
Leveraging the high structural strength of steel, standardized modular quick-assembly design and outstanding cost-effectiveness, steel trusses are widely used in diverse scenarios including stage lighting support for performances, main structure construction for exhibition booths, outdoor advertising display frames, temporary construction protection, and warehouse material support.
Welcome to our FAQ, we are so happy to have you here and as a client.
We have tried to answer the most common questions.
Spec:1500×80×2000mm; Main/Vice tube:80×80×6mm, Brace:60×60×4mm; Net weight:123.3kg per piece.
All pipes are high-strength Q355B structural steel, with better tensile & compression resistance than ordinary steel, ideal for heavy-load large-span construction.
Main & vice tubes have 6mm wall thickness, braces 4mm, balancing structural strength and unit weight.
We support large-volume truss wholesale with sufficient stock, custom sizes and surface coating available on demand.
It can be combined with matching column single pieces and 5T base to form full truss systems, applied for large performance stages, outdoor music festivals, heavy exhibition rigging, gym lighting & sound frames.
We are not only manufacturer of high quality stage truss, also we have professional R&D team and engineers for create solutions for your needs.
Provides standard trusses in various specifications and required length, structure design, touring truss, stage equipments and accessories, etc.
Support and Account Management teams provide the best service in the industry, We're here to provide you with more information, answers to your questions and create solutions for your needs.
