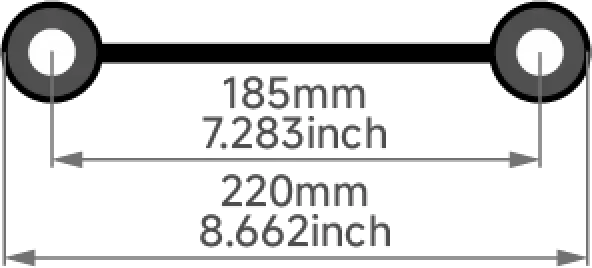

It is made of EN AW-6082 T6 aluminum alloy; main tube Φ35×2mm, brace Φ8mm, profile size 220×35mm.
-
- EN
-

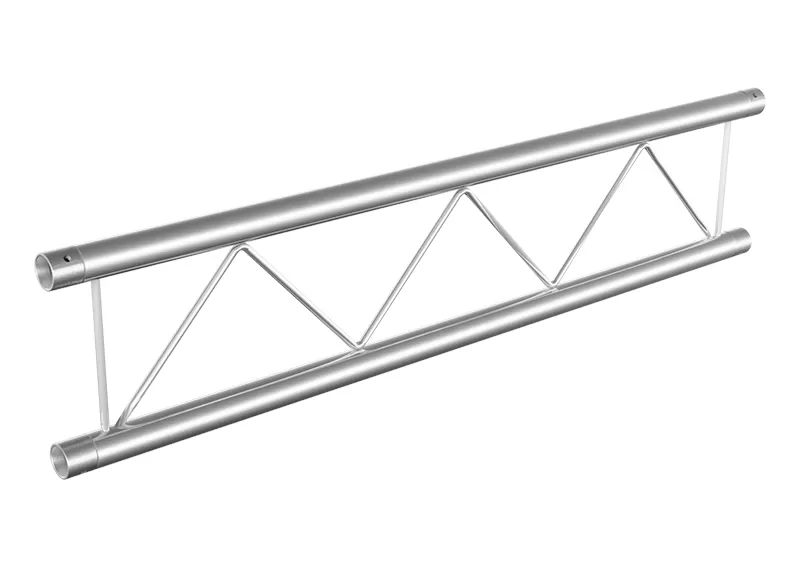

The F22 series ladder truss is made from high-strength EN AW-6082 T6 aluminum alloy, main tube dimension in 35*2mm and brace in 8mm, ensuring lightweight durability and corrosion resistance. With a specification 220mm profile, it offers stability for lighting hanging, decorative frames, and exhibition booths, establishing it as a reliable aluminum ladder truss for flexible setups. Depends on bolted connection design, with advantage of easy assembly, transport efficiency, and compate with various event structures.
| Main tube | 35x2mm(1.4x0.08 inch) |
| Braces | Φ8mm(0.3 inch) |
| Alloy | EN-AW 6082-T6 |
| Span(m) | 2m | 3m | 4m | 6m | 8m | 10m |
| Distrib.Load(kg/m) | 101 | 67 | 48 | 21 | 11 | 7 |
| Deflection(mm) | 0.9 | 2.9 | 6.6 | 15.5 | 27.7 | 43.6 |
| Point Load(kg) | 196 | 129 | 96 | 63 | 44 | 33 |
| Deflection(mm) | 1.3 | 3 | 5.4 | 12.6 | 22.9 | 36.7 |
Made of high-strength materials, lightweight, easy to assemble and stable in load-bearing. Suitable for exhibitions, stages, advertising, etc. Modular design for flexible size adjustment, wind-resistant and anti-deformation, practical and economical.
Welcome to our FAQ, we are so happy to have you here and as a client.
We have tried to answer the most common questions.
It is made of EN AW-6082 T6 aluminum alloy; main tube Φ35×2mm, brace Φ8mm, profile size 220×35mm.
Available lengths: 0.5m/1m/1.5m/2m/2.5m/3m/3.5m/4m; unit weight ranges from 0.96kg to 5.59kg.
Small stage lighting rigging, exhibition booth frames, event decorative shapes, roadshows, wedding temporary lightweight overhead rigging.
We support large-volume truss wholesale with full sizes in stock, custom anodized colors and custom lengths are available.

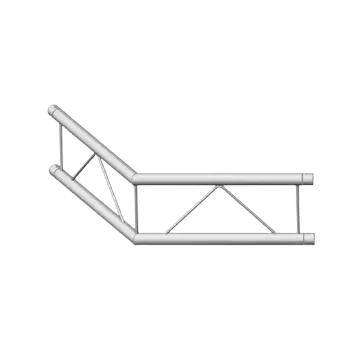

It adopts spigot bolt connection, complete matching connectors are included. It can be matched with F22 corner fittings to build 3D aluminum truss system.
We are not only manufacturer of high quality stage truss, also we have professional R&D team and engineers for create solutions for your needs.
Provides standard trusses in various specifications and required length, structure design, touring truss, stage equipments and accessories, etc.
