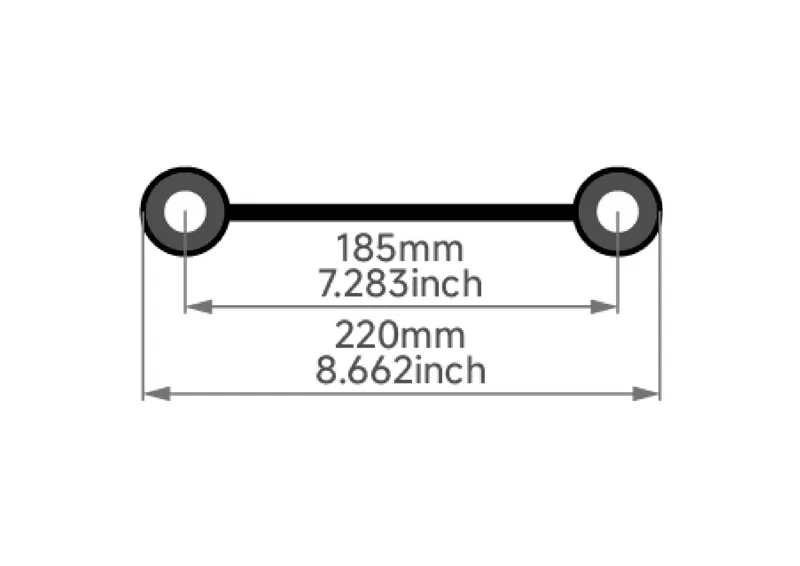

It is made of EN AW-6082 T6 aluminum alloy; main tube Φ35×2mm, brace Φ8mm, profile size 220×35mm.
-
- EN
-
2-way 45° corner vertical
| Length (L) | 1m (3.28ft) |
| Angle (A) | 2-way 45° corner vertical |
| Weight (W) | 2.1kgs(4.63lbs) |
| Span(m) | 2m | 3m | 4m | 6m | 8m | 10m |
| Distrib.Load(kg/m) | 101 | 67 | 48 | 21 | 11 | 7 |
| Deflection(mm) | 0.9 | 2.9 | 6.6 | 15.5 | 27.7 | 43.6 |
| Point Load(kg) | 196 | 129 | 96 | 63 | 44 | 33 |
| Deflection(mm) | 1.3 | 3 | 5.4 | 12.6 | 22.9 | 36.7 |
Made of high-strength materials, lightweight, easy to assemble and stable in load-bearing. Suitable for exhibitions, stages, advertising, etc. Modular design for flexible size adjustment, wind-resistant and anti-deformation, practical and economical.
Welcome to our FAQ, we are so happy to have you here and as a client.
We have tried to answer the most common questions.
It is made of EN AW-6082 T6 aluminum alloy; main tube Φ35×2mm, brace Φ8mm, profile size 220×35mm.
Available lengths: 0.5m/1m/1.5m/2m/2.5m/3m/3.5m/4m; unit weight ranges from 0.96kg to 5.59kg.
Small stage lighting rigging, exhibition booth frames, event decorative shapes, roadshows, wedding temporary lightweight overhead rigging.
We support large-volume truss wholesale with full sizes in stock, custom anodized colors and custom lengths are available.
It adopts spigot bolt connection, complete matching connectors are included. It can be matched with F22 corner fittings to build 3D aluminum truss system.
