WTC C-Body Mobile Light Array Truss Aluminum Alloy
WTC C-Body Mobile Light Array Truss Aluminum Alloy
WTC C-Body Mobile Light Array Truss Aluminum Alloy
WTC C-Body Mobile Light Array Truss Aluminum Alloy
WTC C-Body Mobile Light Array Truss Aluminum Alloy

WTC C-Body Mobile Light Array Truss Aluminum Alloy

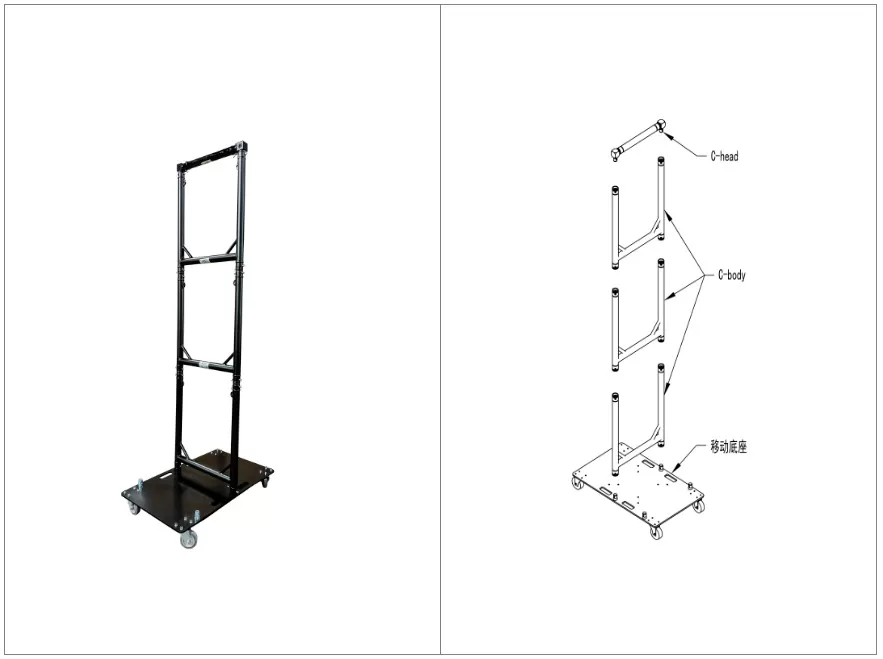

The U-Frame C-Body Mobile Light Array is a versatile, modular lighting support system constructed from high-strength aluminum alloys, such as EN AW-6082 T6, ensuring durability and lightweight performance. These frames typically feature dimensions of 600mm (width) x 760mm (height) and are designed for quick assembly using conical connectors. They are ideal for creating dynamic lighting setups in various event environments, including concerts, exhibitions, and festivals. The system allows for flexible configurations, enabling the suspension of multiple lighting fixtures in a compact footprint.

SPECIFICATIONS

Main tube50x2mm

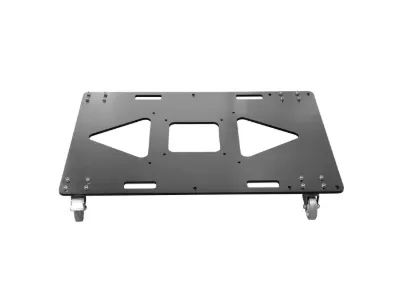

Movbale base600x1000x10mm
AlloyEN-AW 6082-T6
Spec600x750mm


Advantages of C-Body Mobile Light Array Truss

One Base, Multiple Configurations—Lower Cost, Higher Efficiency One Base, Multiple Configurations—Lower Cost, Higher Efficiency
One Base, Multiple Configurations—Lower Cost, Higher Efficiency
The same standard C-BODY base unit can be assembled into standard light arrays, fan-shaped light arrays, hanging light arrays, and other configurations, reducing equipment procurement and storage pres...
Ground Assembly—Avoiding Working-at-Height Risks Ground Assembly—Avoiding Working-at-Height Risks
Ground Assembly—Avoiding Working-at-Height Risks
The entire build and fixture mounting process is completed on the ground, greatly reducing overhead rigging operations, lowering on-site safety hazards, and shortening setup and strike cycles to suit ...
Caster Base—Flexible Lighting Position Adjustment Caster Base—Flexible Lighting Position Adjustment
Caster Base—Flexible Lighting Position Adjustment
Standard braked swivel caster bases allow easy rolling during rehearsal for quick lighting position adjustment. Locking the casters ensures stable positioning, and transport requires no secondary disa...
Performance-Grade High-Strength Material—Durable and Tough Performance-Grade High-Strength Material—Durable and Tough
Performance-Grade High-Strength Material—Durable and Tough
Made of high-strength aluminum alloy with stable load-bearing performance, meeting stage performance truss safety standards and withstanding repeated assembly and disassembly as well as long-distance ...
Universal Mounting—Compatible with Mainstream Fixtures Universal Mounting—Compatible with Mainstream Fixtures
Universal Mounting—Compatible with Mainstream Fixtures
Standardized mounting points are compatible with most professional stage lighting fixtures on the market, including moving head beam lights, PAR lights, and LED effect lights, and can also interface w...
Highly Adaptable—Modular and Combinable Highly Adaptable—Modular and Combinable
Highly Adaptable—Modular and Combinable
It can be used independently as mobile lighting carts for dispersed lighting or integrated into a large main truss system for overall stage design, adapting from small roadshows to large-scale music f...

C-Body Mobile Light Array Truss Details

In music festivals, touring roadshows, and various commercial performances, lighting setup is often constrained by venue rigging points, ceiling height, build schedules, and working-at-height risks. Traditional truss solutions are mostly fixed in form—adjusting lighting positions means re-planning the entire rigging system. C-BODY, however, uses a standardized base unit to derive multiple independent lighting configurations, achieving "one set of equipment, multiple applications" and providing stage design teams with a more flexible and efficient ground-based lighting solution.

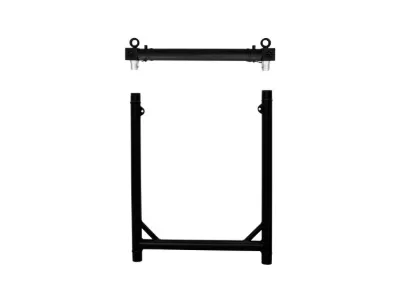

1. Standard Light Array
The base units are stacked upward layer by layer and paired with a braked swivel caster base to form an independent mobile light column. It is suitable for mounting moving head beam lights and effect lights, used as stage side light or fixed-position effect light. All assembly is completed on the ground without the need for overhead rigging. Once in position, the casters can be locked for stable use. During rehearsal, the column can be easily rolled to adjust lighting positions; after the performance, it can be rolled directly for transport. One person can complete both setup and strike.

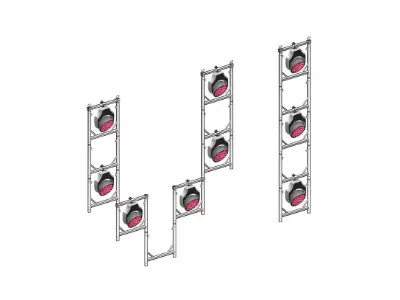

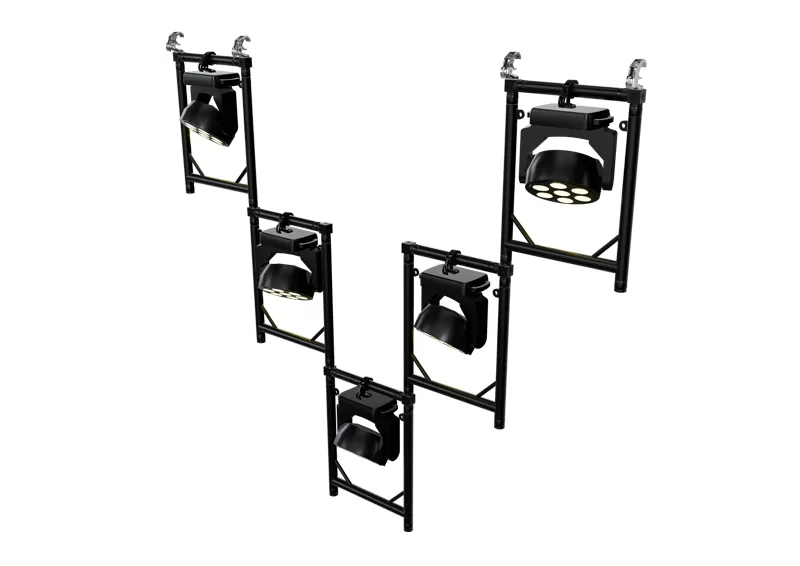

2. Fan-Shaped Light Array
The base units can be spliced outward and expanded into a fan-shaped light array, mounted with multiple PAR lights and LED face lights to form a neat lighting matrix. It is suitable for close-range uniform wash lighting and pixel ambient light arrays, and is highly compatible with small-scale special performances, indoor product launches, and studio broadcast scenarios. Without building tall goalpost trusses, it can deliver large-area uniform soft light and quickly establish the visual tone of the stage.

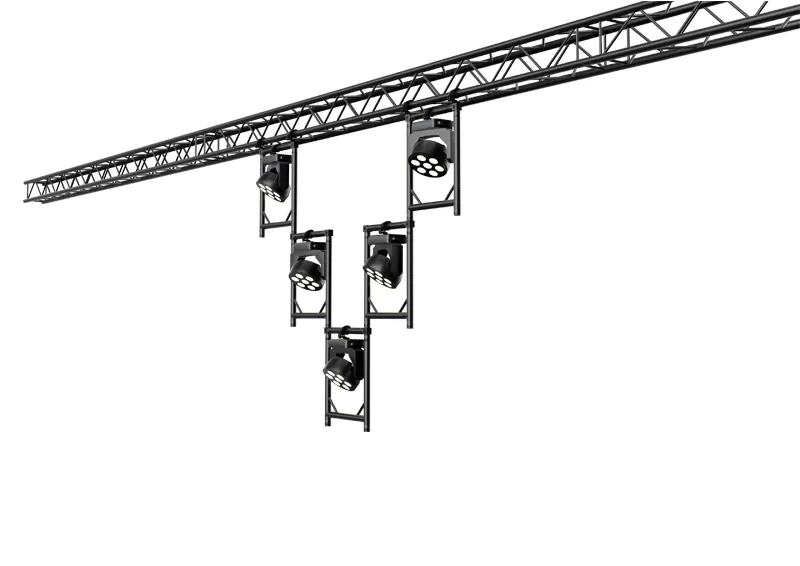

3. Hanging Light Array
It can be used alone as dispersed independent lighting cart positions, or connected to the main stage truss goalpost as a modular fill-light unit. Multiple units can be linked and spliced to form a small lighting portal frame and integrated into the overall large-scale stage design system. In outdoor concerts and large music festivals, it can operate as a standalone system or coordinate with conventional bolt trusses and Layher scaffolding, integrating into the overall lighting plan.




Key Advantages

  • One base unit for multiple configurations, cutting inventory and investment cost

  • Ground assembly, minimizing high‑level rigging work and shortening setup & strike time

  • Lockable swivel casters enable quick adjustment of lighting positions

  • High‑strength aviation aluminum, built for heavy touring and frequent assembly

  • Universal mounting points compatible with most professional stage luminaires

  • Flexible standalone or integrated use, suitable for events of all sizes




Application Scenarios

Whether for a large outdoor music festival with tens of thousands of attendees, a large concert, an indoor special performance, a brand roadshow, a product launch, or a live broadcast studio, C-BODY can be deployed flexibly. As shown in on-site photos: it can serve as independent light columns on both sides of the stage to create atmosphere, or merge into a massive main truss lighting system as a precisely controllable lighting unit within the overall stage design. Break free from the constraints of rigging points—let lighting extend beyond the overhead. The C-BODY mobile lighting array truss releases lighting creativity from fixed rigging solutions, shaping layered lighting expression for every performance with a fast, safe, and versatile form.


Products Associated with C-Body Mobile Light Array Truss

Multi-Purpose Cart
/
Lights Pole
/
New Upgrade Extended C-Body Moving Light Truss
Multi-Purpose Cart
New Upgrade Extended C-Body Moving Light Truss
600mm×800mmmm
Pre-Rig Truss-3
Multi-Purpose Cart
Pre-Rig Truss-3
609mm×356mm×1425mm
Pre-Rig Truss-5
Multi-Purpose Cart
Pre-Rig Truss-5
610mm×358mm×2400mm
CP Rack
Multi-Purpose Cart
CP Rack
1524mm×609mm×356 mm
Light Porter
Multi-Purpose Cart
Light Porter
1524 × 609 × 356 mm
Multi-Purpose Cart-1
Multi-Purpose Cart
Multi-Purpose Cart-1
1600mm×800mm×1930 mm
Multi-Purpose Cart-3
Multi-Purpose Cart
Multi-Purpose Cart-3
1600mm×800mm×1933 mm
Modular Drop Arm System
Lights Pole
Modular Drop Arm System
660×600×10mm
Double Layers T-Bar Lights Pole
Multi-Purpose Cart
Double Layers T-Bar Lights Pole
600mm×1000mmmm

Touring Truss | Multi-Scenario Efficient Stage Load-Bearing Frame

Widely applied in concert tours, music festivals, roadshows and brand launches. Modular quick-lock design enables fast assembly & disassembly. High-strength aluminum delivers stable load capacity with multi safety structures for frequent cross-venue touring.

Request a Wholesale Quote Today
Concerts
Concerts
Festivals
Festivals
Exhibitions
Exhibitions
Outdoor Events
Outdoor Events

Can't Find a Suitable Product?

Click to View Other Products!
Small Truss
Small Truss
100mm-305mm
Medium Truss
Medium Truss
400mm-529mm
Large Truss
Large Truss
600mm-1010mm

FAQ

Welcome to our FAQ, we are so happy to have you here and as a client.

We have tried to answer the most common questions.


Q
What is the C-Body Mobile Light Array Truss, and what scenarios is it designed for?
-
+

The C-Body Mobile Light Array Truss (classic model) is a vertical mobile lighting mounting structure that belongs to a modular aluminum truss system. It is specially built for vertical arrangement of stage lighting fixtures, and is widely used in live concerts, exhibition events, theater performances, commercial activities and temporary shows. It can work as a standalone lighting tower, or be flexibly matched with other stage truss structures to build diversified lighting layouts.

Q
What material is this light array truss made of, and what are its material merits?
-
+

This product is made of high-grade EN AW-6082 T6 aluminum alloy, which is the mainstream high-performance material for professional aluminum Truss. The 6082 T6 aluminum alloy features excellent structural strength, corrosion resistance and high strength-to-weight ratio, ensuring reliable load-bearing performance while keeping the structure lightweight for convenient transportation and on-site assembly.

Q
What are the core dimensional specifications of this classic mobile light truss?
-
+

The main tube of the truss has a specification of Φ50 × 2 mm. The dedicated mobile base measures 600 × 1000 × 10 mm. The single truss frame section has an internal width of 500 mm and a total height of 750 mm, with a standardized modular design that supports flexible combination of multiple lighting units according to actual on-site demands.

Q
Can professional truss manufacturers provide customized services for this product?
-
+

Yes, professional truss manufacturers can provide targeted customization solutions for the C-Body Mobile Light Array Truss. Available custom options include adjusting truss height and load grade, modifying base specifications, adding matching fixture mounting accessories, and customizing surface treatment, to fully adapt to different project scenarios and personalized requirements.

Q
Does this product support truss wholesale, and who is suitable for bulk purchase?
-
+

This C-Body Mobile Light Array Truss fully supports truss wholesale. It is an ideal choice for bulk purchase by event rental companies, stage engineering contractors, audio-visual system integrators and trading distributors. Bulk orders can enjoy preferential wholesale pricing, complete supporting accessory services, and unified quality assurance for the whole batch.

Q
Can this light array truss be integrated with my existing aluminum truss system?
-
+

Absolutely. The C-Body Mobile Light Array Truss adopts a standard truss connection design, which can be seamlessly compatible with conventional aluminum truss systems on the market. It can be hoisted under horizontal truss beams, combined in multiple sets for array layout, or used as independent vertical lighting towers, to flexibly expand your existing stage truss setup.

Q
What advantages does this mobile aluminum truss light cart have over ordinary fixed light stands?
-
+

Compared with traditional fixed light stands, this aluminum truss light cart integrates the high structural rigidity of professional truss and the flexibility of a mobile base. Its caster-equipped base allows quick position adjustment without disassembly; the modular truss structure supports flexible expansion of the number of lighting fixtures; and the 6082 T6 aluminum alloy material guarantees long service life even under frequent disassembly, transportation and touring scenarios.
