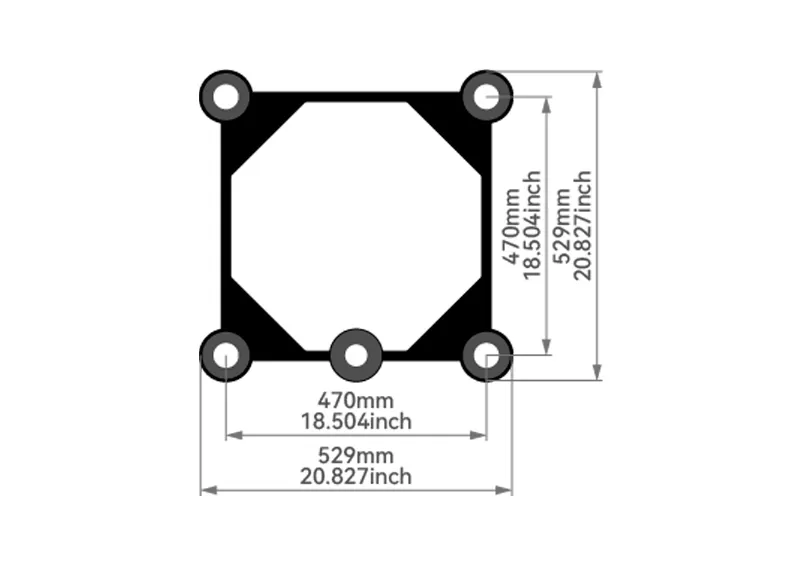

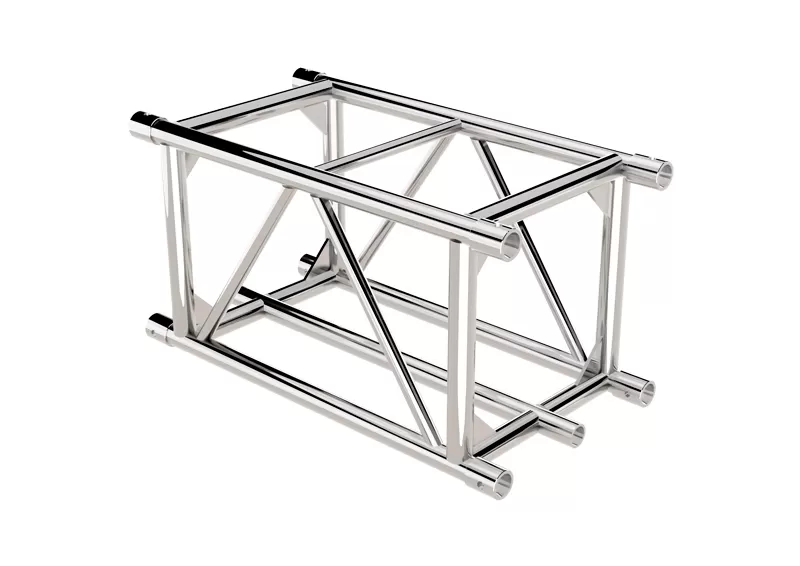

TS54 is a reliable aluminium truss from professional truss manufacturers. Made of EN-AW 6082-T6 aluminum alloy, it offers optional main tube and vice tube specifications of 50×4mm or 50×3mm, with 30×3mm braces. As a modular aluminum truss system adopting spigot connection, it enables fast assembly and disassembly. Widely used for stage rigging, exhibition frames, lighting suspension and event roof systems, this truss is available for truss wholesale to meet diverse temporary event construction demands.
| Main Tube | 50x4mm(2x0.16 inch) |
| 50x3mm(2x0.16 inch) | |
| Vice Tube | 50x4mm(2x0.16 inch) |
| 50x3mm(2x0.16 inch) | |
| Braces | 30x3mm(1x1.18 inch) |
| Alloy | EN-AW 6082-T6 |
| Span(m) | 6m | 8m | 10m | 12m | 14m | 16m | 18m | 20m |
| Distrib.Load(kg/m) | 729 | 409 | 259 | 177 | 128 | 93 | 69 | 52 |
| Deflection(mm) | 16.9 | 30.3 | 47.9 | 69.8 | 95.9 | 123.3 | 153.5 | 186.6 |
| Point Load(kg) | 2188 | 1635 | 1296 | 1065 | 895 | 741 | 618 | 517 |
| Deflection(mm) | 14.1 | 25.3 | 40 | 58.1 | 79.9 | 102.7 | 128 | 155.5 |
Made of high-strength materials, lightweight, easy to assemble and stable in load-bearing. Suitable for exhibitions, stages, advertising, etc. Modular design for flexible size adjustment, wind-resistant and anti-deformation, practical and economical.
Welcome to our FAQ, we are so happy to have you here and as a client.
We have tried to answer the most common questions.
Yes, we are factory.
Yes. Our goods had passed loading test and we had got the TUV/CE certificates. You can see the related certificates in our catalogue. Sure, if you need we can send a copy certificates for your reference.
Of course, we can provide samples for customers to check the quality. In our next order, we will return sample fee to you.
General it is about 5-15 days.
Our company is located in Panyu, Guangzhou, where near Baiyun Airport and Guangzhou South Railway Station, with convenient transportation. Warmly welcome you to visit us! Yes, 1 year warranty, we'll free to send you the same products if our products is non-artificial damage in its warranty time in our next order.
We are not only manufacturer of high quality stage truss, also we have professional R&D team and engineers for create solutions for your needs.
Provides standard trusses in various specifications and required length, structure design, touring truss, stage equipments and accessories, etc.
Support and Account Management teams provide the best service in the industry, We're here to provide you with more information, answers to your questions and create solutions for your needs.
