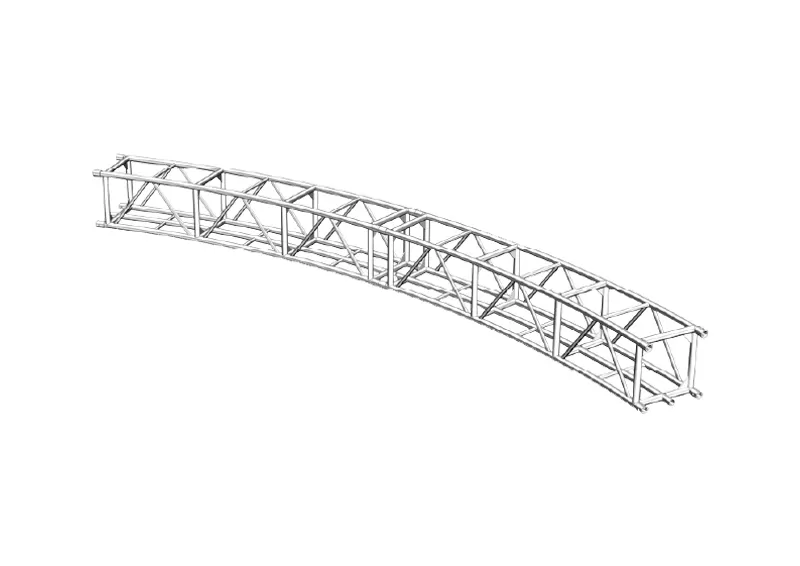

TS54-C
TS54-C

TS54-C

TS54-C

Main Tube50x4mm(2x0.16 inch)
50x3mm(2x0.16 inch)
Vice Tube50x4mm(2x0.16 inch)
50x3mm(2x0.16 inch)
Braces30x3mm(1x1.18 inch)
AlloyEN-AW 6082-T6


Advantages of TS54-C Series

Premium Material Premium Material
Premium Material
Made from high-strength EN AW-6082 T6 aluminum for excellent durability and corrosion resistance.
Heavy-Duty Load Capacity Heavy-Duty Load Capacity
Heavy-Duty Load Capacity
Designed to support substantial weights and long spans with safety and stability.
Quick Assembly Quick Assembly
Quick Assembly
Innovative quick-lock system enables fast, tool-free setup and teardown.
Versatile Applications Versatile Applications
Versatile Applications
Perfect for stages, exhibitions, trade shows, and large event structures.
Modular Design Modular Design
Modular Design
Compatible with various accessories and components for flexible configurations.
Certified Safety Certified Safety
Certified Safety
Meets international safety standards, ensuring reliable performance.

Loading Table of TS54

Span(m)6m8m10m12m14m16m18m20m
Distrib.Load(kg/m)729409259177128936952
Deflection(mm)16.930.347.969.895.9123.3153.5186.6
Point Load(kg)2188163512961065895741618517
Deflection(mm)14.125.34058.179.9102.7128155.5


Products Associated with TS54-C

Square Truss
/

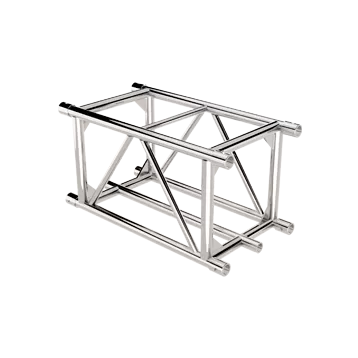

TS54
Square Truss
TS54
529mm×529mm

Application of Medium Truss

Made of high-strength materials, lightweight, easy to assemble and stable in load-bearing. Suitable for exhibitions, stages, advertising, etc. Modular design for flexible size adjustment, wind-resistant and anti-deformation, practical and economical.
