This aluminium truss is manufactured from premium EN AW-6082 T6 aluminum alloy by professional truss manufacturers, delivering outstanding strength-to-weight ratio for the aluminum truss system.
-
- EN
-

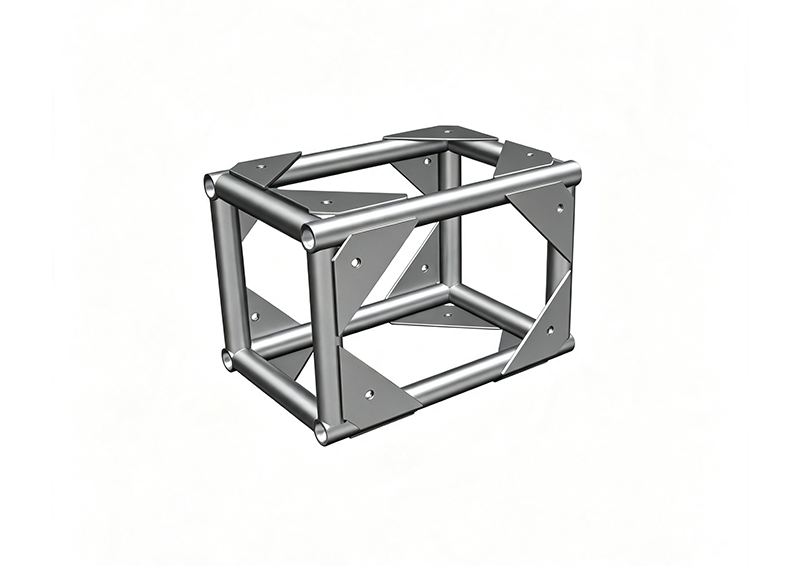

HT6040-MCB-4 connection box, crafted from premium EN AW-6082 T6 aluminum alloy, is a alternative to square truss, specification of 400mm*600mm, offering optimized performance from strength to weight . Its rectangular profile allow greater flexibility and creativeness for special structure designs, making it ideal for stages, LED screen support, exhibition booths, and architectural installations. Available in lengths customized, it ensures superior loading capacity and stability while maintaining easy transport and quick assembly. Perfect for unique dimensions projects design and quick installation, and provide reliable structural integrity.
| Length (L) | 0.6m |
| Angle (A) | Connection Box multiple ways |
| Span(m) | 6m | 8m | 10m | 12m | 13m | 14m | 15m | 16m | 17m | 18m | 19m | 20m | |||
| Distrib.Load(kg/m) | 424.9 | 250.5 | 172.5 | 131.1 | 113 | 94.3 | 80.1 | 66.1 | 53.1 | 37.7 | 30 | 21.2 | |||
| Deflection(mm) | 113 | 29 | 45 | 65 | 75 | 85 | 95 | 105 | 115 | 125 | 135 | 145 | |||
| Point Load(kg) | 1529.7 | 1051.9 | 862.6 | 786.7 | 734.6 | 660.2 | 600.7 | 528.4 | 451 | 339.3 | 284.7 | 212.1 | |||
Made of high-strength materials, lightweight, easy to assemble and stable in load-bearing. Suitable for exhibitions, stages, advertising, etc. Modular design for flexible size adjustment, wind-resistant and anti-deformation, practical and economical.
Welcome to our FAQ, we are so happy to have you here and as a client.
We have tried to answer the most common questions.
This aluminium truss is manufactured from premium EN AW-6082 T6 aluminum alloy by professional truss manufacturers, delivering outstanding strength-to-weight ratio for the aluminum truss system.
The rectangular bolted truss features a 400mm600mm profile. Standard length is 0.6m, and customized lengths are supported for truss wholesale orders.
The aluminium truss works perfectly for stage frameworks, LED screen support, exhibition booths and architectural installations. Its rectangular shape brings more design flexibility for special structures.
As an alternative to square truss, this truss adopts rectangular profile. It supports multi-angle connection via connection box, ensures great loading capacity, convenient transportation and fast assembly.
Yes. We provide truss wholesale service for HT6040-MCB-4 bolted aluminium truss. Customized length and technical support are available for bulk orders of this aluminum truss system.
