FTB-M-CB-6 Bolted Truss
FTB-M-CB-6 Bolted Truss
FTB-M-CB-6 Bolted Truss
FTB-M-CB-6 Bolted Truss

FTB-M-CB-6 Bolted Truss

FTB-M-CB-6 connection box is manufactured from high-strength EN AW-6082 T6 aluminum, ensuring durability and stability. Specification of 520mm*520mm, available in multiple ways connection options, it offers excellent load-bearing capacity for large spans. Ideal for stages, exhibitions, and event structures, its modular design allows easy assembly, straight but stable when connecting in long spans, and reliable performance for various scenes applications.

Angle (A)Connection Box multiple ways
Weight (W)18.16kgs(40lb)


Advantages of FTB-M-CB-6

Higher Load Capacity Higher Load Capacity
Higher Load Capacity
Designed to support heavier equipment and longer spans.
Greater Structural Stability Greater Structural Stability
Greater Structural Stability
Enhanced durability for demanding stage and roof systems.
Wide Application Range Wide Application Range
Wide Application Range
Suitable for concerts, LED screen support, and large event structures.
Reinforced Bolted Design Reinforced Bolted Design
Reinforced Bolted Design
Provides strong connections for increased safety.
Longer Span Capability Longer Span Capability
Longer Span Capability
Can cover larger areas without additional supports.
Professional Appearance Professional Appearance
Professional Appearance
Ideal for high-end projects requiring both strength and aesthetics.

Loading Table of FTB-M-CB-6

Span(m)1.52m3.05m4.57m6.1m7.6m9.14m12.2m
Distrib.Load(kg/m)2324115069438223916284
Deflection(mm)0.226.211.117.324.944.8
Point Load(kg)2879225115851166912739512
Deflection(mm)0.42.45.710.115.922.941.2


Products Associated with FTB-M

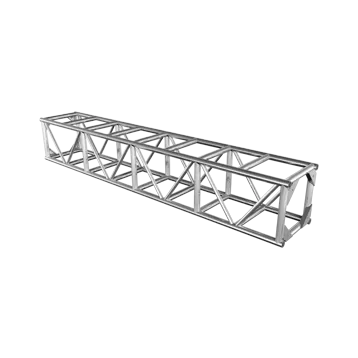

Bolted Truss
/
FTB-M
Bolted Truss
FTB-M
520mm×520mm

Application of Medium Truss

Made of high-strength materials, lightweight, easy to assemble and stable in load-bearing. Suitable for exhibitions, stages, advertising, etc. Modular design for flexible size adjustment, wind-resistant and anti-deformation, practical and economical.

Request a Wholesale Quote Today
Stage Construction
Stage Construction
Celebration Decoration
Celebration Decoration
Exhibition Support
Exhibition Support
Promotion Booth
Promotion Booth

Can't Find a Suitable Product?

Click to View Other Products!

FAQ

Welcome to our FAQ, we are so happy to have you here and as a client.

We have tried to answer the most common questions.


Q
What material and specification does FTB-M-CB-6 connection box adopt?
-
+

FTB-M-CB-6 aluminium truss connection box is manufactured from high-strength EN AW-6082 T6 aluminum alloy. Its section size is 520mm520mm, weight reaches 18.16kgs (40lb). It is supplied by truss manufacturers and available for truss wholesale.

Q
What are the characteristics of FTB-M-CB-6 connection box?
-
+

This connection box belongs to aluminum truss system accessories, supporting multiple connection options. It has excellent load-bearing capacity for large spans. The modular design allows easy assembly, keeps straight and stable during long-span connection with reliable performance in different scenarios.

Q
What application scenarios is FTB-M-CB-6 suitable for?
-
+

FTB-M-CB-6 connection box is ideal for stages, exhibitions, and all kinds of event structures, widely used for large-span truss construction projects.

Q
What is the main function of FTB-M-CB-6?
-
+

FTB-M-CB-6 is a bolted truss connection box. It is used to connect aluminium truss segments and build multi-angle complex truss structures, ensuring structural stability for large-span projects.

Q
What is the production lead time if I place an order for FTB-M-CB-6?
-
+

Normally, the production lead time of FTB-M-CB-6 is about 5-15 days.

Q
Can I buy FTB-M-CB-6 in bulk?
-
+

Yes. As professional truss manufacturers, we provide truss wholesale service for FTB-M-CB-6 bolted truss connection box, you can apply for wholesale quotation.
