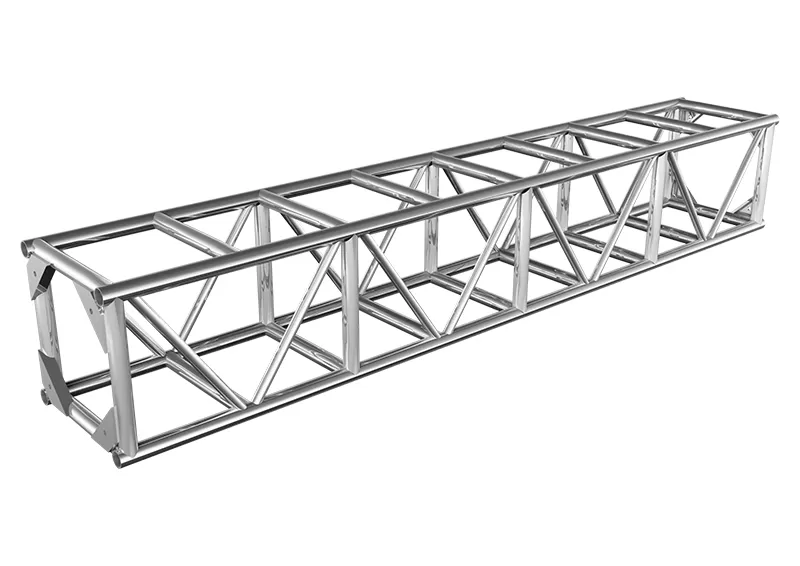

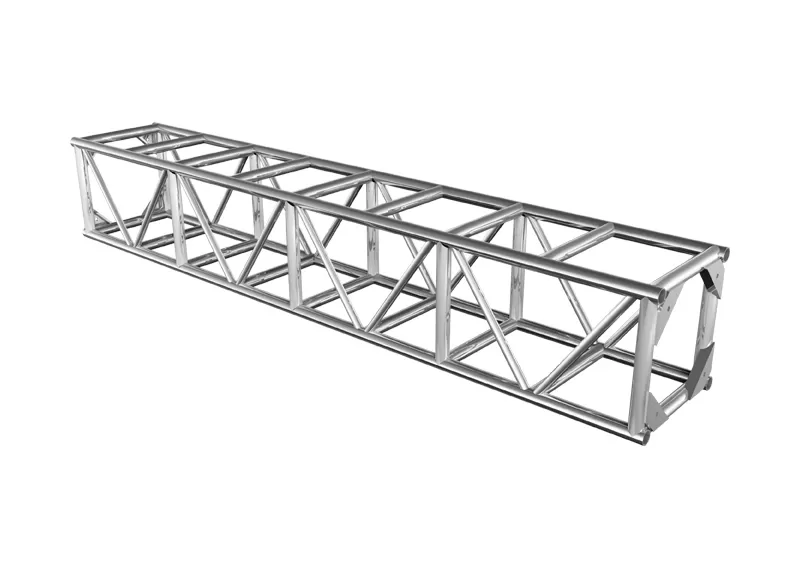

FTB-M series square bolted truss is manufactured from high-strength EN AW-6082 T6 aluminum alloy, ensuring durability and stability. Specification of 520mm*520mm, available in various length and connection options, it offers excellent loading capacity for large spans. Good choice for stages, exhibitions, and event structures, its modular design allows easy assembly, straight but stable when connecting in long spans, and reliable performance for various scenes applications.
| Main tube | 50x3mm(2x0.12 inch) |
| Vice tube | 50x3mm(2x0.12 inch) |
| Braces | 25x3mm(1x0.12 inch) |
| Alloy | EN-AW 6082-T6 |
| Span(m) | 1.52m | 3.05m | 4.57m | 6.1m | 7.6m | 9.14m | 12.2m |
| Distrib.Load(kg/m) | 2324 | 1150 | 694 | 382 | 239 | 162 | 84 |
| Deflection(mm) | 0.2 | 2 | 6.2 | 11.1 | 17.3 | 24.9 | 44.8 |
| Point Load(kg) | 2879 | 2251 | 1585 | 1166 | 912 | 739 | 512 |
| Deflection(mm) | 0.4 | 2.4 | 5.7 | 10.1 | 15.9 | 22.9 | 41.2 |
Made of high-strength materials, lightweight, easy to assemble and stable in load-bearing. Suitable for exhibitions, stages, advertising, etc. Modular design for flexible size adjustment, wind-resistant and anti-deformation, practical and economical.
Welcome to our FAQ, we are so happy to have you here and as a client.
We have tried to answer the most common questions.
FTB-M aluminium truss is made of high-strength EN AW-6082 T6 aluminum alloy. The main tube and vice tube are both 50×3mm, braces are 25×3mm. Its section size is 520mm520mm. It is supplied by truss manufacturers and available for truss wholesale.
This aluminum truss system is square bolted modular truss. It has excellent loading capacity for large spans, multiple optional lengths and connection options. It features easy assembly, keeps straight and stable for long-span connection and delivers reliable performance in diverse scenes.
FTB-M bolted truss is suitable for stages, exhibitions and other event structures, widely used for various scene applications.
Yes. FTB-M square bolted truss has various length and connection options to meet different large-span construction demands.
Yes. As professional truss manufacturers, we provide truss wholesale service for FTB-M series bolted truss, you can apply for wholesale quotation.
We are not only manufacturer of high quality stage truss, also we have professional R&D team and engineers for create solutions for your needs.
Provides standard trusses in various specifications and required length, structure design, touring truss, stage equipments and accessories, etc.
Support and Account Management teams provide the best service in the industry, We're here to provide you with more information, answers to your questions and create solutions for your needs.
