It adopts EN AW-6082 T6 aluminium alloy, main tube Φ50×2mm, brace tube Φ25×3mm, cross-section 400×50mm.
-
- EN
-

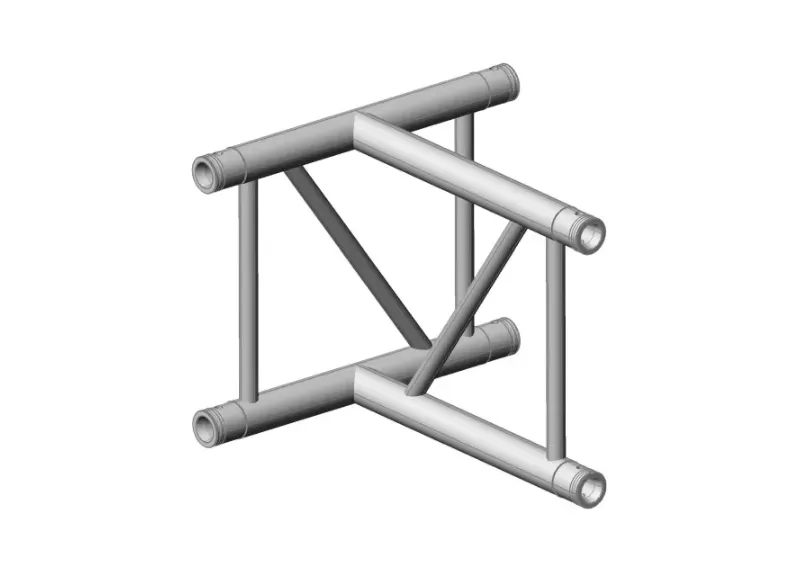

3-way vertical T-junction
| Length (L) | 0.5m (1.64ft) |
| Angle (A) | 3-way vertical T-junction |
| Weight (W) | 3.8kgs(8.38lbs) |
| Span(m) | 2m | 4m | 6m | 8m | 10m | 12m | 14m | 16m |
| Distrib.Load(kg/m) | 756 | 243 | 109 | 61 | 39 | 27 | 19 | 14 |
| Deflection(mm) | 1.2 | 6.4 | 14.7 | 26.7 | 42.7 | 63 | 87.8 | 115.3 |
| Point Load(kg) | 756 | 486 | 327 | 245 | 195 | 161 | 135 | 113 |
| Deflection(mm) | 1 | 5.1 | 11.8 | 21.6 | 34.8 | 51.8 | 72.9 | 96.7 |
Made of high-strength materials, lightweight, easy to assemble and stable in load-bearing. Suitable for exhibitions, stages, advertising, etc. Modular design for flexible size adjustment, wind-resistant and anti-deformation, practical and economical.
Welcome to our FAQ, we are so happy to have you here and as a client.
We have tried to answer the most common questions.
It adopts EN AW-6082 T6 aluminium alloy, main tube Φ50×2mm, brace tube Φ25×3mm, cross-section 400×50mm.
Standard lengths: 0.5 / 1 / 1.5 / 2 / 2.5 / 3 / 3.5 / 4 / 4.5 / 5 m, maximum single length 5 m.
F42-C19-V vertical corner, F42-C23-V vertical corner, F42-C41-V 4-way connector.
Ideal for medium-small commercial shows, roadshows, exhibition booths, hotel banquet lighting and LED screen frames. It can cooperate with lifting towers, manual & electric hoists to build integrated aluminium truss rigging system.
We support large-volume truss wholesale for complete F42 sets with standard sizes in stock. Custom non-standard lengths are available, with one-stop delivery matched with full series aluminium truss accessories, towers and hoists.
