It adopts EN AW-6082 T6 aluminium alloy, main tube Φ50×2mm, brace tube Φ25×3mm, cross-section 400×50mm.
-
- EN
-

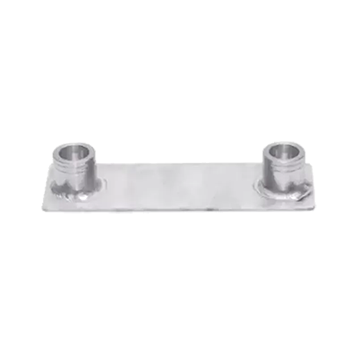

F24-BP Spigot Truss Base Plate is a foundational load-bearing accessory specially matched for the F24 flat spigot aluminium truss series. Precision integrally fabricated from high-strength aluminium alloy with anti-corrosion oxidation surface finish, it serves as the core load-supporting connector between ground and vertical flat truss masts. Fitted with two standard tapered positioning studs, the plate fast locks the bottom joint of F24 flat truss, evenly distributing vertical loads of the whole frame and greatly improving anti-tipping stability of the complete aluminum truss system.
It is widely adopted for temporary stage lighting rigging, exhibition booth construction, outdoor roadshows, commercial live events and indoor small backdrop truss towers. It adapts to slightly uneven ground and delivers stable anchoring benchmark, complying with international truss load and safety standards. As professional truss manufacturers, we provide truss wholesale bulk supply. With outstanding durability and perfect fitting performance, it is an essential bottom support fitting for all event structures built with flat aluminium truss.
| Spec | 400mm (16 inch) |
| Alloy | EN-AW 6082-T6 |
| Span(m) | 2m | 4m | 6m | 8m | 10m | 12m | 14m | 16m |
| Distrib.Load(kg/m) | 756 | 243 | 109 | 61 | 39 | 27 | 19 | 14 |
| Deflection(mm) | 1.2 | 6.4 | 14.7 | 26.7 | 42.7 | 63 | 87.8 | 115.3 |
| Point Load(kg) | 756 | 486 | 327 | 245 | 195 | 161 | 135 | 113 |
| Deflection(mm) | 1 | 5.1 | 11.8 | 21.6 | 34.8 | 51.8 | 72.9 | 96.7 |
Made of high-strength materials, lightweight, easy to assemble and stable in load-bearing. Suitable for exhibitions, stages, advertising, etc. Modular design for flexible size adjustment, wind-resistant and anti-deformation, practical and economical.
Welcome to our FAQ, we are so happy to have you here and as a client.
We have tried to answer the most common questions.
It adopts EN AW-6082 T6 aluminium alloy, main tube Φ50×2mm, brace tube Φ25×3mm, cross-section 400×50mm.
Standard lengths: 0.5 / 1 / 1.5 / 2 / 2.5 / 3 / 3.5 / 4 / 4.5 / 5 m, maximum single length 5 m.
F42-C19-V vertical corner, F42-C23-V vertical corner, F42-C41-V 4-way connector.
Ideal for medium-small commercial shows, roadshows, exhibition booths, hotel banquet lighting and LED screen frames. It can cooperate with lifting towers, manual & electric hoists to build integrated aluminium truss rigging system.
