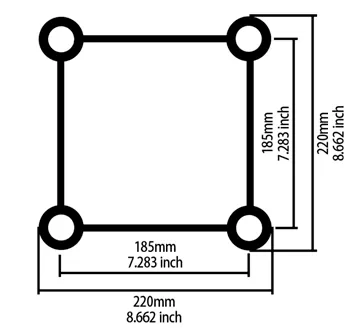

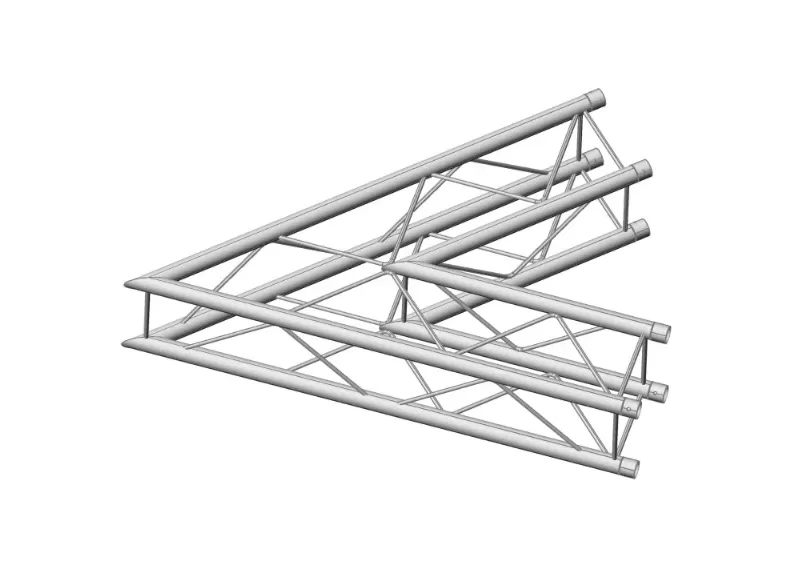

The F24-C19 2-Way 45° Corner is a lightweight aluminum alloy truss component designed for the F24 system. Constructed from EN AW‑6082 T6 aluminum, it features 35 mm main tubes with a 1.6 mm wall thickness and 8 mm diagonal braces. With an external dimension of 22 cm, it supports spans up to 10 meters. Ideal for exhibitions, retail displays, and event structures, it offers quick assembly and modular flexibility.
| Length (L) | 1m (3.28ft) |
| Angle (A) | 2-way 45° corner |
| Weight (W) | 3.5kgs (7.72lbs) |
| Span(m) | 2m | 4m | 6m | 8m | 10m | 12m |
| Distrib.Load(kg/m) | 202 | 134 | 100 | 65 | 35 | 21 |
| Deflection(mm) | 0.9 | 2.9 | 6.9 | 23.1 | 41.3 | 64.8 |
| Point Load(kg) | 405 | 354 | 286 | 195 | 141 | 107 |
| Deflection(mm) | 1.4 | 4.1 | 7.9 | 18.7 | 33.7 | 53.6 |
Made of high-strength materials, lightweight, easy to assemble and stable in load-bearing. Suitable for exhibitions, stages, advertising, etc. Modular design for flexible size adjustment, wind-resistant and anti-deformation, practical and economical.
