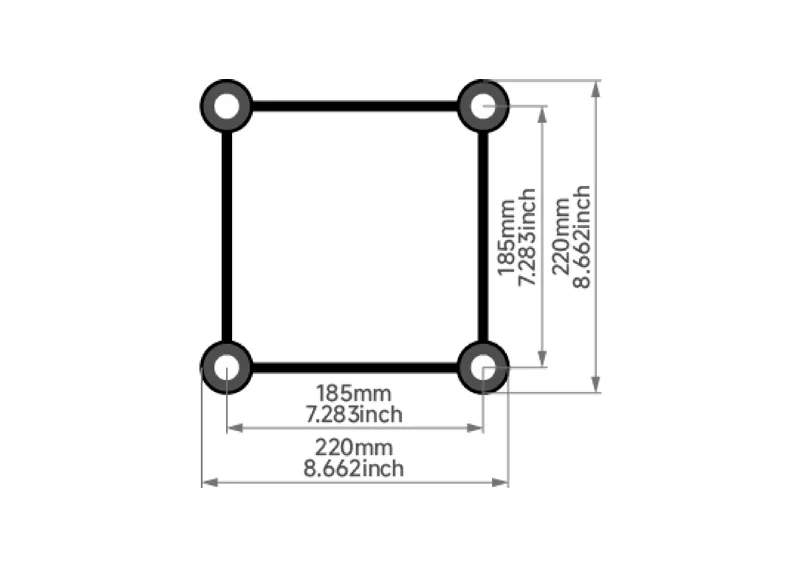

It is made of high-grade EN AW-6082 T6 aviation aluminum alloy. Main tube Φ35×2mm, diagonal brace tube Φ8mm, square outer profile 220×220mm, a compact square aluminium truss profile.
-
- EN
-
The F24-T42 4-way 90°corner is a lightweight aluminum alloy truss component designed for the F24 system. Constructed from EN AW‑6082 T6 aluminum, it features 35 mm main tubes with a 1.6 mm wall thickness and 8 mm diagonal braces. With an external dimension of 22 cm, it supports spans up to 10 meters. Ideal for exhibitions, retail displays, and event structures, it offers quick assembly and modular flexibility.
| Length (L) | 0.5m (1.64ft) |
| Angle (A) | 4-way 90°corner |
| Weight (W) | 3.5kgs(7.72lbs) |
| Span(m) | 2m | 4m | 6m | 8m | 10m | 12m |
| Distrib.Load(kg/m) | 202 | 134 | 100 | 65 | 35 | 21 |
| Deflection(mm) | 0.9 | 2.9 | 6.9 | 23.1 | 41.3 | 64.8 |
| Point Load(kg) | 405 | 354 | 286 | 195 | 141 | 107 |
| Deflection(mm) | 1.4 | 4.1 | 7.9 | 18.7 | 33.7 | 53.6 |
Made of high-strength materials, lightweight, easy to assemble and stable in load-bearing. Suitable for exhibitions, stages, advertising, etc. Modular design for flexible size adjustment, wind-resistant and anti-deformation, practical and economical.
Welcome to our FAQ, we are so happy to have you here and as a client.
We have tried to answer the most common questions.
It is made of high-grade EN AW-6082 T6 aviation aluminum alloy. Main tube Φ35×2mm, diagonal brace tube Φ8mm, square outer profile 220×220mm, a compact square aluminium truss profile.
Yes. Our goods had passed loading test and we had got the TUV/CE certificates. You can see the related certificates in our catalogue. Sure, if you need we can send a copy certificates for your reference.
It fits exhibition booths, retail display racks, lighting grid rigs, popup events, banner frames and small indoor performances. The max safe span reaches 10 meters with TÜV certification for structural safety.

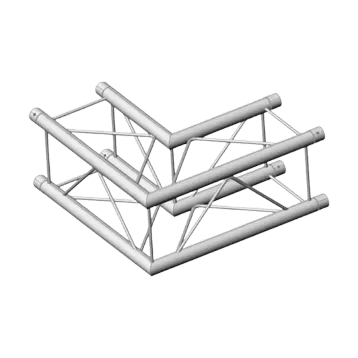

It adopts integrated conical spigot connectors included in each package for tool-free fast assembly. Matched with F24-C21 corner, F24-T35 T-joint, F24-MCB square block and other fittings, it can be freely spliced to build full modular aluminum truss system.
We support global bulk truss wholesale with full sizes in stock. Custom special lengths and anodized coating colors are available, plus one-stop supply of full series extensions including corners, T-joints and bases.
