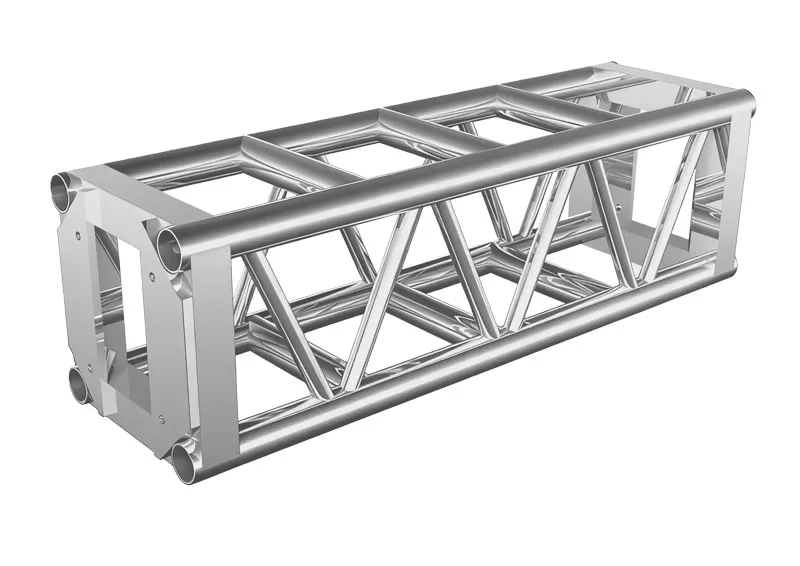

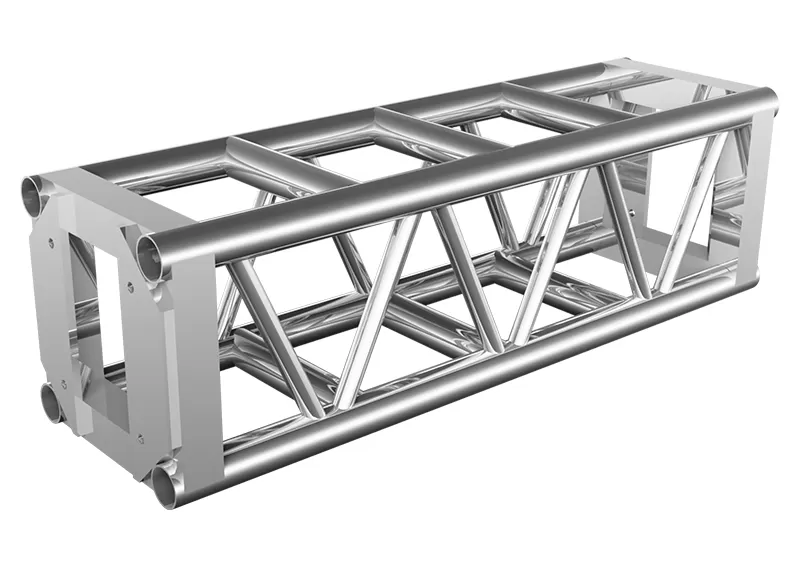

FTB-L Series Bolted Truss

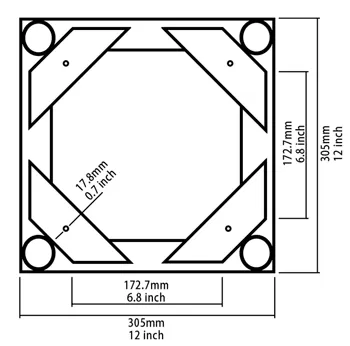

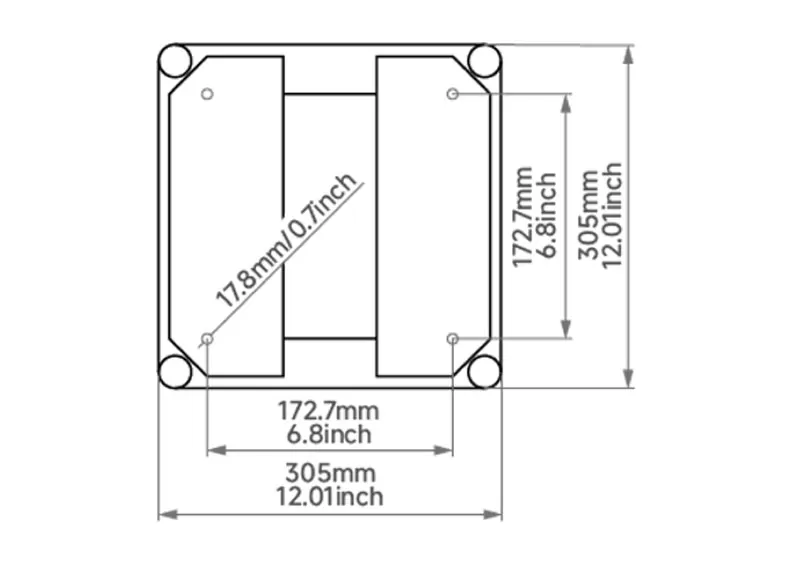

FTB-L series Series square bolted truss is manufactured from high-strength EN AW-6082 T6 aluminum alloy, ensuring durability and stability. Specification of 305mm*305mm, available in various length and connection options, it offers excellent loading capacity for large spans. Good choice for stages, exhibitions, and event structures, its modular design allows easy assembly, straight but stable when connecting in long spans, and reliable performance for various scenes applications.

Main tube50x3mm(2x0.12 inch)
Braces25x3mm(1x0.12 inch)
AlloyEN-AW 6082-T6




Advantages of FTB-L Series

Lightweight Construction Lightweight Construction
Lightweight Construction
Easier handling and transport, reducing labor costs.
Cost-Effective Cost-Effective
Cost-Effective
Lower material cost makes it ideal for budget-conscious projects.
Easy Assembly Easy Assembly
Easy Assembly
Quick installation due to smaller components and bolted design.
Versatile for Small Projects Versatile for Small Projects
Versatile for Small Projects
Perfect for exhibition booths, trade shows, and decorative structures.
Compact Storage Compact Storage
Compact Storage
Detachable components save space during storage and shipping.
Flexibility Flexibility
Flexibility
Ideal for short spans and simple setups without excessive load requirements.

Loading Table of FTB-L Series

Span(m)1.52m3.05m4.57m6.1m7.6m9.14m12.2m
Distrib.Load(kg/m)15126053421871163847
Deflection(mm)0.63,610.618.929.642.877
Point Load(kg)1149922782571442353234
Deflection(mm)0.53.39.717.327.239.371.1




Products Associated with FTB-L

Bolted Truss
/

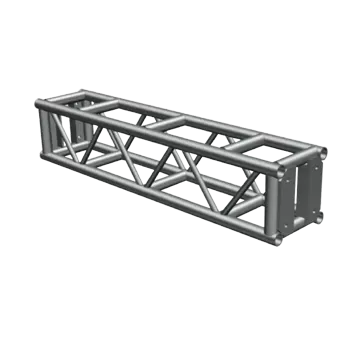

FTB-L-CB-6
Bolted Truss
FTB-L-CB-6
305×305mm

Small Truss - Lightweight & Stable

Made of high-strength materials, lightweight, easy to assemble and stable in load-bearing. Suitable for exhibitions, stages, advertising, etc. Modular design for flexible size adjustment, wind-resistant and anti-deformation, practical and economical.

Request a Wholesale Quote Today
Acuivity Construction
Acuivity Construction
Equipment Support
Equipment Support
Building Assistance
Building Assistance
Decorative Structure
Decorative Structure

Can't Find a Suitable Product?

Click to View Other Products!

FAQ

Welcome to our FAQ, we are so happy to have you here and as a client.

We have tried to answer the most common questions.


Q
What material and tube specifications does FTB-L bolted truss use?
-
+

FTB-L aluminium truss is manufactured from high-strength EN AW-6082 T6 aluminum alloy. Its main tube is 50×3mm, braces are 25×3mm, and the section size is 305mm305mm. It is supplied by truss manufacturers and available for truss wholesale.

Q
What are the main features of FTB-L bolted truss?
-
+

This aluminum truss system adopts square bolted modular design. It has excellent large-span loading capacity, multiple optional lengths and connection types. It is easy to assemble and remains straight and stable for long-span connection with stable performance.

Q
What scenarios can FTB-L bolted truss be applied to?
-
+

FTB-L bolted truss is widely used for stages, exhibitions and various event structures, suitable for various scene applications.

Q
Does FTB-L truss support different length options?
-
+

Yes. FTB-L square bolted truss has various length and connection options to satisfy different construction requirements.

Q
Is truss wholesale available for FTB-L bolted truss?
-
+

Yes. As professional truss manufacturers, we provide truss wholesale service for FTB-L series bolted truss, you can request a wholesale quote.
