Adjustable Multi-purpose Aluminium Profile Lights Cart

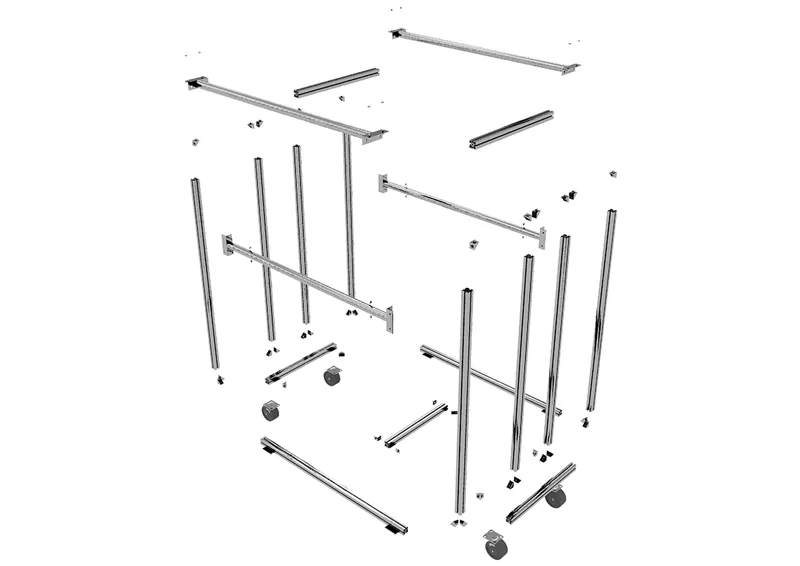

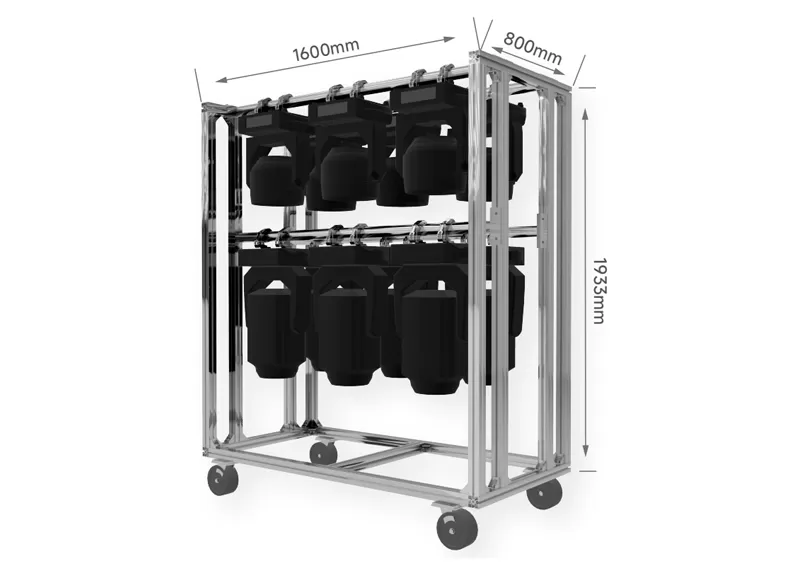

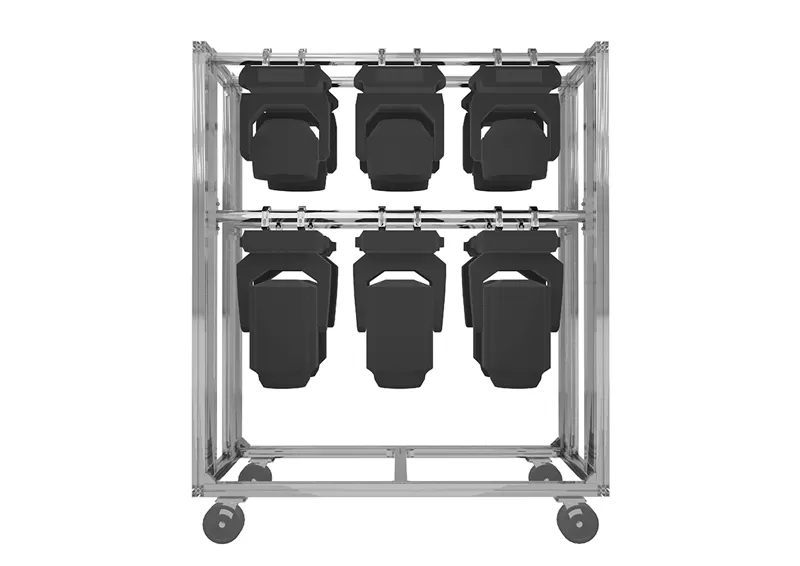

The lighting cart in overall dimensions of 1600 × 800 × 1933 mm. Square frame is made of lightweight slotted aluminum square profiles, and adapt with round suspension rods which mounted with screws. While slotted profile used, the adjustable rods allows flexible yet precise distance adjustments. It supports rigging multiple lighting fixtures of different specifications at the same time that allows lights in free-rigging options. Enabling a highly flexible and easy way to lights storage and transportation. The cart is lightweight yet stable, easy to transport, and allows users to freely increase or reduce the number of suspension rods. And closely calculate the overall dimension, and with moving caster, the cart can whole loading in container, convenient for touring events the no need to unload the lightings. According to actual scene and lighting rigging demands, it can be flexibly assembly and combined in multiple modular layers, greatly enhancing adaptability and performance in lighting setups.
| Size (L×W×H) | 1600×800×1933mm |
| Aluminum Profile Square Tube | 45×45×2mm |
| Adjustable Tube | φ50×2mm |
| Self Weight | 62.2kg |
| Max.SWL | 600kg |
| Lights Bar Load | 150kg |
| Caster Size | 6inch |
| Single Castor Load | 250kg |
| Package Size (L×W×H) | 1620×250×300mm |
| Package CBM 0.122m³ | |
