It adopts EN AW-6082 T6 aluminium alloy, main tube Φ50×2mm, brace tube Φ20×2mm, triangular cross-section 257.8×290mm.
-
- EN
-

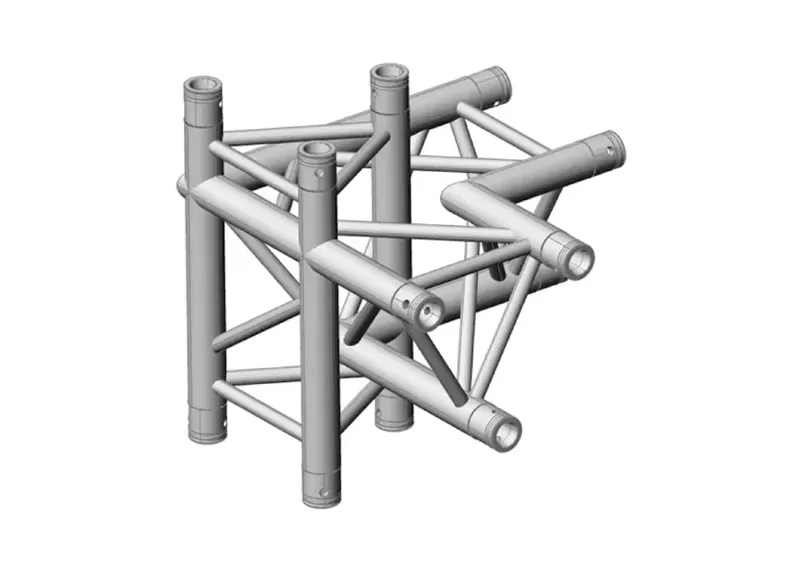

4-way 90° corner right
| Length (L) | 0.5m (1.64ft) |
| Angle (A) | 4-way 90°corner right |
| Weight (W) | 6.5kgs(14.33lbs) |
| Span(m) | 2m | 4m | 6m | 8m | 10m | 12m |
| Distrib.Load(kg/m) | 761 | 206 | 92 | 51 | 31 | 20 |
| Deflection(mm) | 2.6 | 11.5 | 26.8 | 48.8 | 75.2 | 105.6 |
| Point Load(kg) | 761 | 412 | 277 | 206 | 154 | 117 |
| Deflection(mm) | 2.1 | 9.3 | 21.7 | 39.8 | 62 | 88.3 |
Made of high-strength materials, lightweight, easy to assemble and stable in load-bearing. Suitable for exhibitions, stages, advertising, etc. Modular design for flexible size adjustment, wind-resistant and anti-deformation, practical and economical.
Welcome to our FAQ, we are so happy to have you here and as a client.
We have tried to answer the most common questions.
It adopts EN AW-6082 T6 aluminium alloy, main tube Φ50×2mm, brace tube Φ20×2mm, triangular cross-section 257.8×290mm.
Standard lengths: 0.5 / 1 / 1.5 / 2 / 2.5 / 3 / 3.5 / 4 / 4.5 / 5 m, maximum single length 5 m.
It includes various corners & cube joints: F33-C21, F33-C33, F33-C41, F33-C44, F33-C52, F33-C53; multi-way T-joints: F33-T35, F33-T39, F33-T42, F33-T43, F33-T45, F33-T51, F33-T61.
Ideal for medium-small music festivals, touring shows, exhibition booths, hotel banquet lighting and line array rigging. It can cooperate with lifting towers, manual & electric hoists to build integrated aluminium truss rigging system.
We support large-volume truss wholesale for complete F33 sets with standard sizes in stock. Custom non-standard lengths are available, with one-stop delivery matched with full series aluminium truss accessories, towers and hoists.
We are not only manufacturer of high quality stage truss, also we have professional R&D team and engineers for create solutions for your needs.
Provides standard trusses in various specifications and required length, structure design, touring truss, stage equipments and accessories, etc.
