It is made of high-grade EN AW-6082 T6 aviation aluminum alloy. Main tube Φ35×2mm, diagonal brace tube Φ8mm, square outer profile 220×220mm, a compact square aluminium truss profile.
-
- EN
-
Constructed from high-grade EN AW‑6082 T6 aluminum, the F24 Square Truss features 35 mm main tubes (1.6 mm wall) and 8 mm diagonal braces. With a compact 220 mm profile and spans up to 10 m, it delivers reliable performance in exhibitions, retail displays, lighting grids, and small event structures. TÜV-certified, it enables tool‑free assembly, modular configurations, and lightweight handling. The F24 Square Truss is designed for lightweight but durable structures where logistics and speed are essential. Its small footprint makes it ideal for retail displays, shop installations, popup events, banner frameworks, and compact exhibition stands. The included conical connectors and TÜV certification ensure ease of use and structural reliability.
| Span(m) | 2m | 4m | 6m | 8m | 10m | 12m |
| Distrib.Load(kg/m) | 202 | 134 | 100 | 65 | 35 | 21 |
| Deflection(mm) | 0.9 | 2.9 | 6.9 | 23.1 | 41.3 | 64.8 |
| Point Load(kg) | 405 | 354 | 286 | 195 | 141 | 107 |
| Deflection(mm) | 1.4 | 4.1 | 7.9 | 18.7 | 33.7 | 53.6 |
Made of high-strength materials, lightweight, easy to assemble and stable in load-bearing. Suitable for exhibitions, stages, advertising, etc. Modular design for flexible size adjustment, wind-resistant and anti-deformation, practical and economical.
Welcome to our FAQ, we are so happy to have you here and as a client.
We have tried to answer the most common questions.
It is made of high-grade EN AW-6082 T6 aviation aluminum alloy. Main tube Φ35×2mm, diagonal brace tube Φ8mm, square outer profile 220×220mm, a compact square aluminium truss profile.
Available standard lengths: 0.5m, 1m, 1.5m, 2m, 2.5m, 3m, 3.5m. Unit weight ranges from 2.62kg to 12.00kg. Lightweight design cuts labor and logistics cost.
It fits exhibition booths, retail display racks, lighting grid rigs, popup events, banner frames and small indoor performances. The max safe span reaches 10 meters with TÜV certification for structural safety.
It adopts integrated conical spigot connectors included in each package for tool-free fast assembly. Matched with F24-C21 corner, F24-T35 T-joint, F24-MCB square block and other fittings, it can be freely spliced to build full modular aluminum truss system.

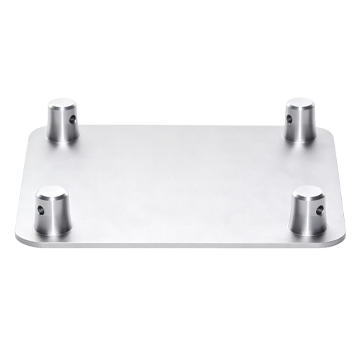

We support global bulk truss wholesale with full sizes in stock. Custom special lengths and anodized coating colors are available, plus one-stop supply of full series extensions including corners, T-joints and bases.
