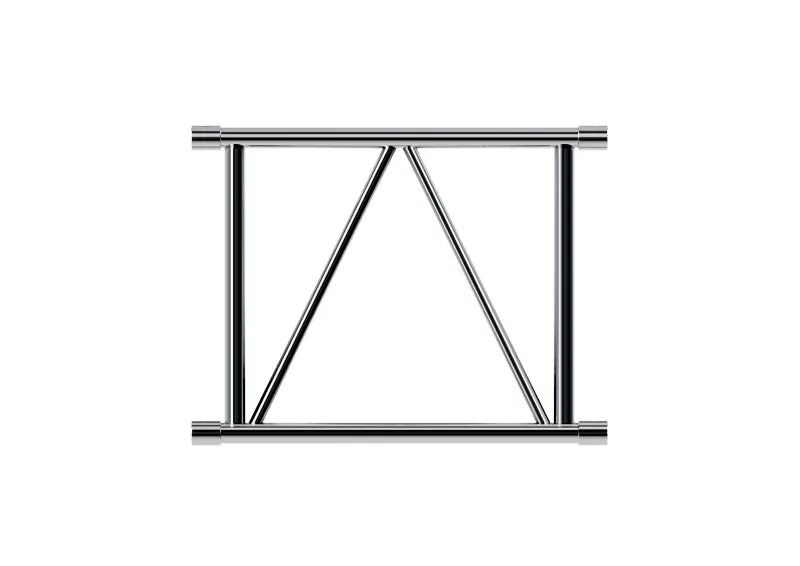

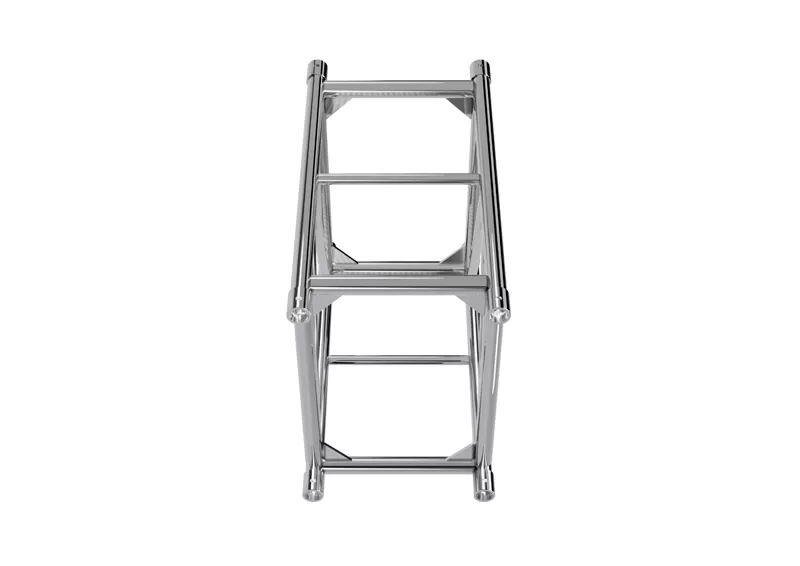

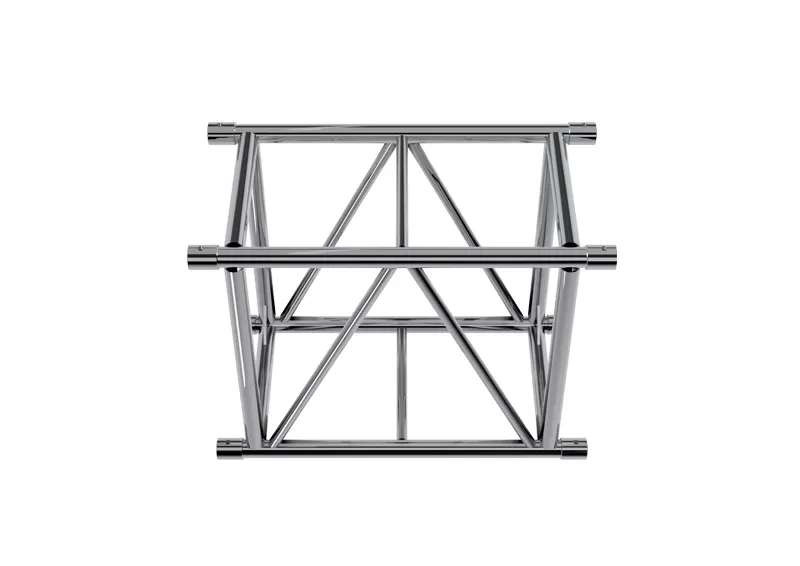

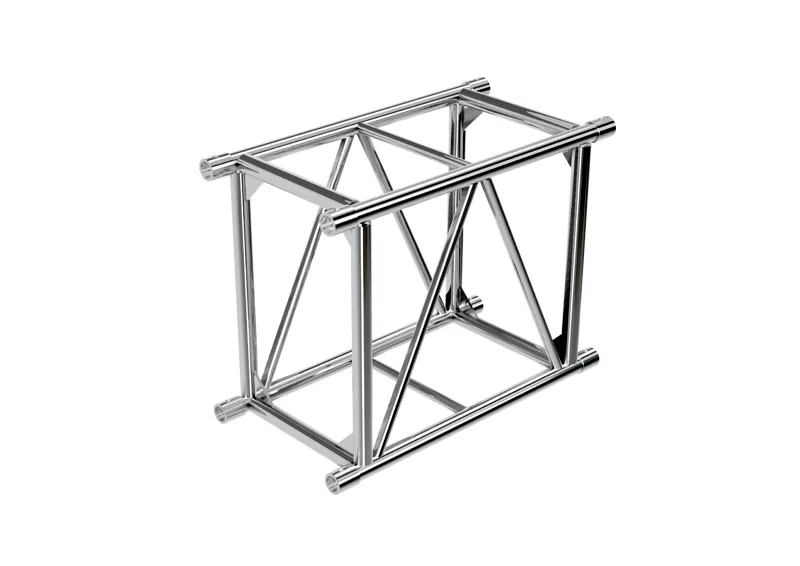

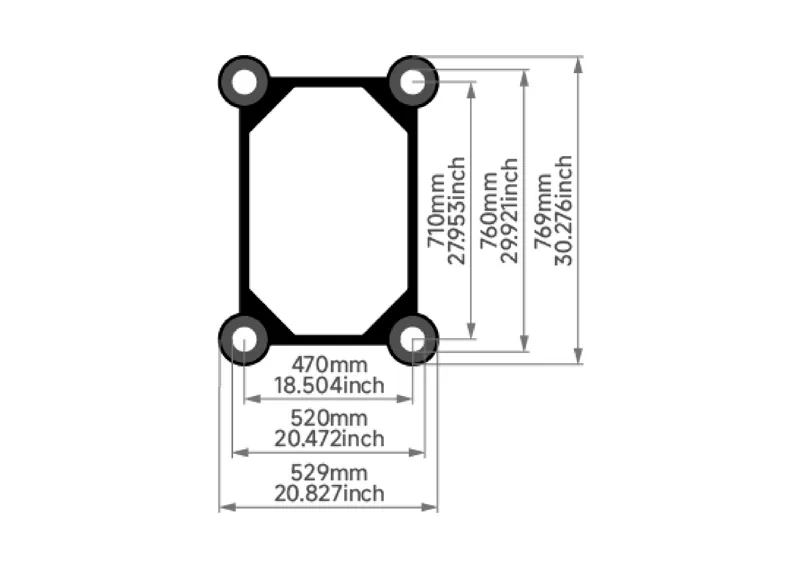

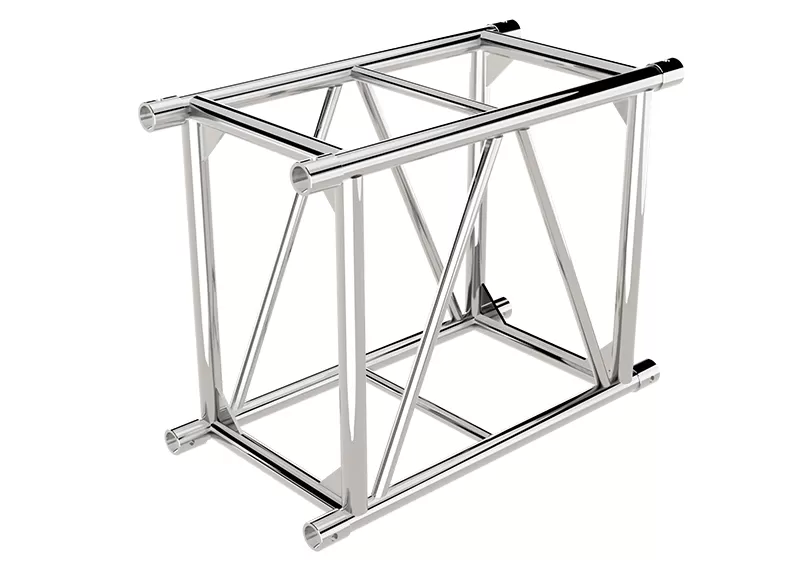

The TT74 is a heavy-duty rectangular truss system designed for large-scale applications. Constructed from high-strength EN AW-6082 T6 aluminum, it features 50×4 mm main tubes and 30×3 mm braces. With external dimensions of 520×760 mm, it supports spans up to 44 meters and is suitable for both indoor and outdoor installations. The truss utilizes a Quicklock connection system for fast assembly and is compatible with various clamps and accessories. Its robust design makes it ideal for roof systems, grid networks, and other heavy-duty structures.

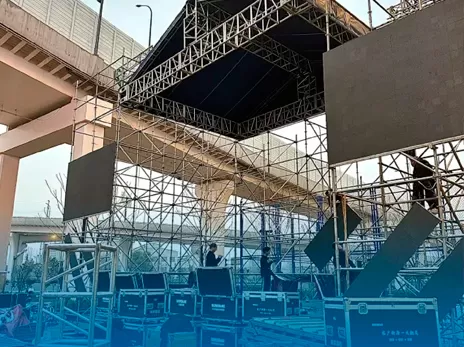

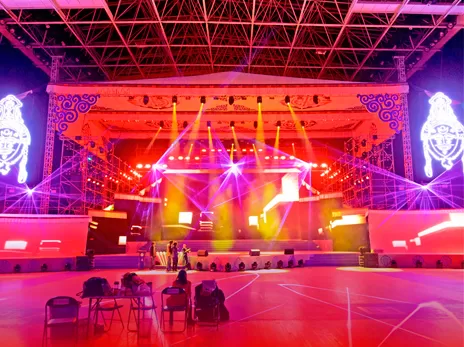

The TT74 truss system is engineered to meet the demands of professional event setups. Its robust design and compatibility with various configurations make it a reliable choice for creating stable and secure structures. Whether you're constructing a temporary stage, a complex exhibition structure, or a large-scale roof system, the TT74 provides the flexibility and strength needed for successful installations.
| Main tube | 50x4mm(2x0.16 inch) |
| Vice tube | 50x4mm(2x0.16 inch) |
| Braces | 30x3mm(1.2x0.12 inch) |
| Alloy | EN-AW 6082-T6 |
| Span(m) | 6m | 8m | 10m | 12m | 14m | 16m | 18m | 20m |
| Distrib.Load(kg/m) | 913 | 530 | 394 | 270 | 195 | 146 | 112 | 88 |
| Deflection(mm) | 7.3 | 17.3 | 31.7 | 46.1 | 63.4 | 83.6 | 106.6 | 132.6 |
| Point Load(kg) | 3116 | 2478 | 1968 | 1620 | 1365 | 1168 | 1009 | 877 |
| Deflection(mm) | 8.8 | 16.7 | 26.4 | 38.5 | 52.8 | 69.6 | 88.8 | 110.5 |
Made of high-strength materials, lightweight, easy to assemble and stable in load-bearing. Suitable for exhibitions, stages, advertising, etc. Modular design for flexible size adjustment, wind-resistant and anti-deformation, practical and economical.
