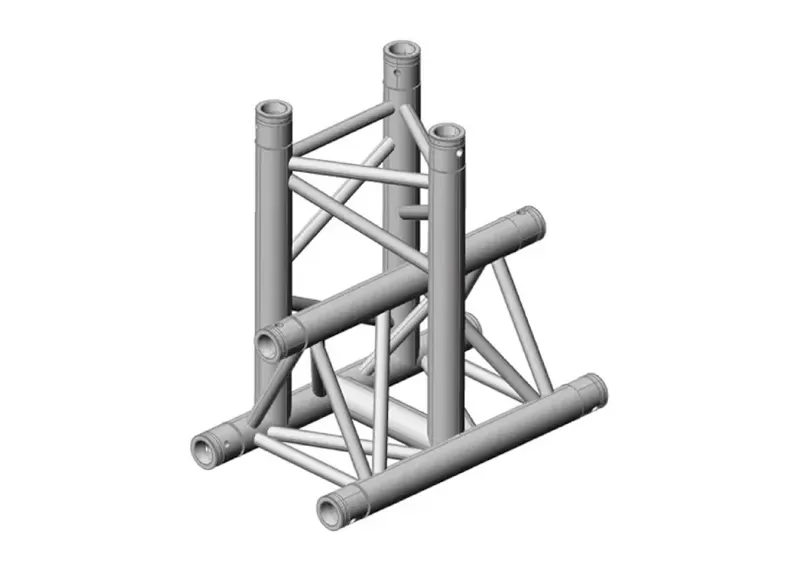

F33-T35 3-Way Vertical T-Junction Apex Down
WTC Spigot Truss F33 Truss Aluminum Alloy Cross Sectional View

F33-T35 3-Way Vertical T-Junction Apex Down

3-way vertical T-junction apex down


Length (L)0.5m (1.64ft)
Angle (A)3-way vertical T-junction apex down
Weight (W)5.3kgs(11.68lbs)


Advantages of F33-T35 3-Way Vertical T-Junction Apex Down

High-Quality Material High-Quality Material
High-Quality Material
Manufactured from EN AW-6082 T6 aluminum for exceptional strength and durability.
Lightweight Design Lightweight Design
Lightweight Design
Easy to transport and handle without compromising load capacity.
Quick Assembly Quick Assembly
Quick Assembly
Spigot connection system allows fast and secure setup.
Excellent Load Capacity Excellent Load Capacity
Excellent Load Capacity
Ideal for medium-small music festivals, touring shows, exhibition booths, hotel banquet lighting and line array rigging. It can cooperate with lifting towers, manual & electric hoists to build int...
Versatile Configuration Versatile Configuration
Versatile Configuration
Compatible with multiple truss elements for flexible design options.
Professional Finish Professional Finish
Professional Finish
Smooth, polished surface suitable for high-visibility installations.

Loading Table of F33

Span(m)2m4m6m8m10m12m
Distrib.Load(kg/m)76120692513120
Deflection(mm)2.611.526.848.875.2105.6
Point Load(kg)761412277206154117
Deflection(mm)2.19.321.739.86288.3


Products Associated with F33-T35

Corner Triangle Truss
/
Triangle Truss
/
Circular Trangle Truss
/
Component
/
F33-C19
Triangle Truss
F33-C19
​2-Way 45° Corner
F33-C20
Triangle Truss
F33-C20
2-Way 60° Corner
F33-C21
Triangle Truss
F33-C21
2-Way 90° Corner
F33-C22
Triangle Truss
F33-C22
​2-Way 120° Corner
F33-C23
Triangle Truss
F33-C23
2-Way 135° Corner
F33-C24
Triangle Truss
F33-C24
2-WAY 90° Corner Apex Out
F33-C25
Triangle Truss
F33-C25
2-WAY 90° Corner Apex In
F33-C31
Triangle Truss
F33-C31
3-Way 90°Corner Apex Up Right
F33
Triangle Truss
F33
257.8mm×290mm
F33-C1
Circular Truss
F33-C1
290mm×257.8mm
F33-C2
Circular Truss
F33-C2
290mm×257.8mm
3026&3029 F33 Male
Base Plate
3026&3029 F33 Male
257.8mm×290mm
3032&3035 F33 Female
Base Plate
3032&3035 F33 Female
257.8mm×290mm

Small Truss - Lightweight & Stable

Made of high-strength materials, lightweight, easy to assemble and stable in load-bearing. Suitable for exhibitions, stages, advertising, etc. Modular design for flexible size adjustment, wind-resistant and anti-deformation, practical and economical.

Request a Wholesale Quote Today
Acuivity Construction
Acuivity Construction
Building Assistance
Building Assistance
Equipment Support
Equipment Support
Decorative Structure
Decorative Structure

Can't Find a Suitable Product?

Click to View Other Products!

FAQ

Welcome to our FAQ, we are so happy to have you here and as a client.

We have tried to answer the most common questions.


Q
What tube specifications, alloy material and cross-section size does F33 truss adopt?
-
+

It adopts EN AW-6082 T6 aluminium alloy, main tube Φ50×2mm, brace tube Φ20×2mm, triangular cross-section 257.8×290mm.

Q
What standard lengths are available for F33 straight truss, what is the maximum single length?
-
+

Standard lengths: 0.5 / 1 / 1.5 / 2 / 2.5 / 3 / 3.5 / 4 / 4.5 / 5 m, maximum single length 5 m.

Q
What types of connector accessories are shown for F33 truss?
-
+

It includes various corners & cube joints: F33-C21, F33-C33, F33-C41, F33-C44, F33-C52, F33-C53; multi-way T-joints: F33-T35, F33-T39, F33-T42, F33-T43, F33-T45, F33-T51, F33-T61.

Q
What event scenarios fit F33 triangular truss, can it match lifting towers and electric hoists to build complete aluminum truss system?
-
+

Ideal for medium-small music festivals, touring shows, exhibition booths, hotel banquet lighting and line array rigging. It can cooperate with lifting towers, manual & electric hoists to build integrated aluminium truss rigging system.

Q
As professional truss manufacturers, do you support truss wholesale bulk orders for F33 truss, and can non-standard lengths be customized?
-
+

We support large-volume truss wholesale for complete F33 sets with standard sizes in stock. Custom non-standard lengths are available, with one-stop delivery matched with full series aluminium truss accessories, towers and hoists.
