Technical Specifications
| Type | HSZ-1D2 | HSZ-2D2 |
| Rated Load (kg) | 1000 | 2000 |
| Lifting Height (m) | 3 | 3 |
| Number of Load Chain Rows | 1 | 1 |
| Hand Pull Force at Full Load (N) | 305 | 340 |
| Test Load (kg) | 1500 | 3000 |
| Load Chain Specification (mm) | 6×18 | 8×24 |
| Hand Chain Specification (mm) | 5×25 | 5×25 |
| Net Weight (kg) | 12 | 18 |
| Weight After Packaging (kg) | 12.5 | 19.6 |
| Weight of Load Chain per Meter (kg/m) | 0.77 | 1.36 |
| Weight of Hand Chain per Meter (kg/m) | 0.9 | 0.9 |

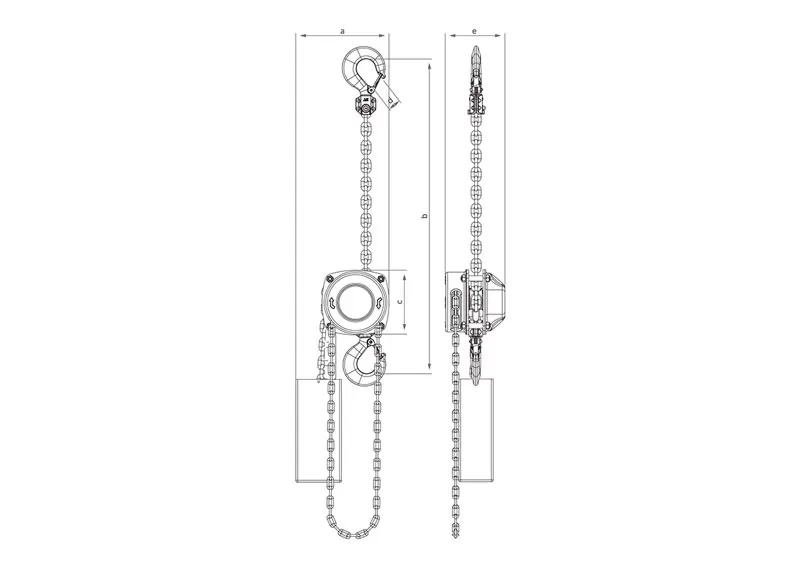

| a (mm) | 182 | 206 |
| e (mm) | 145 | 157 |
| d (mm) | 35 | 40 |
| Hmin (mm) | 361 | 413 |
