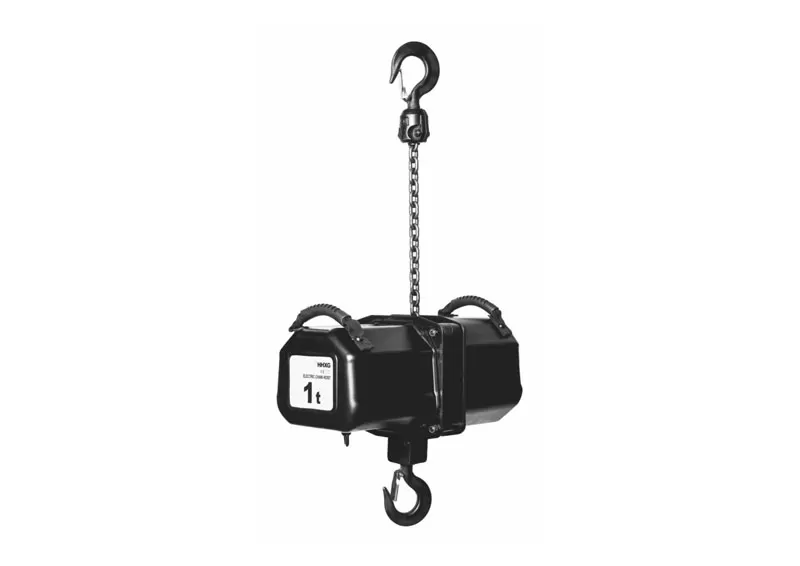

Technical Specifications
| Type | Rated Load (t) | Lifting Speed (m/min) | Power (kw) | Working Class (FEM/ISO) | Lifting Chain | Protection Level | Net Weight (kg) |
| S6-05 | 0.5 | 5.8 | 0.8 | 1Am/M4 | Φ7.1×15 | IP56 | 38 |
| S6-10 | 1 | 4.3 | 1.1 | 1Am/M4 | Φ7.1×15 | IP56 | 39 |

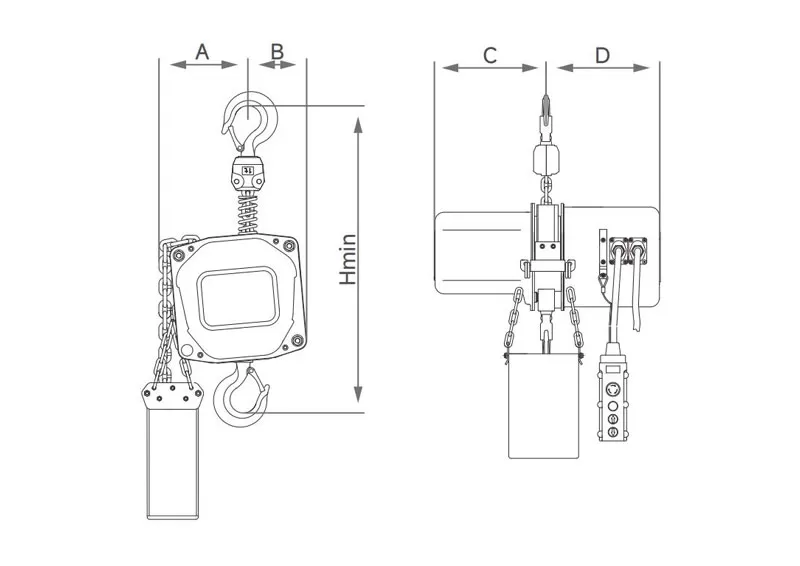

Size Chart
| Type | Rated Load (t) | H/min | A | B | C | D |
| S6-05 | 0.5 | 550 | 168 | 112 | 245 | 250 |
| S6-10 | 1 | 590 | 168 | 112 | 245 | 250 |
