F31 Single Tube Truss Spigot Truss Series
F31 Single Tube Truss Spigot Truss Series Cross-Sectional View

WTC F31 Series Single Tube Spigot Truss

F31 series single truss is made from high-strength EN AW-6082 T6 aluminum alloy, main tube dimension in 50*2mm, for durability and lightweight handling. Available in different lengths and angles, it is commonly used for display frames, lighting fixtures, and structures reinforcements. Its simplicity, modular design, and corrosion resistance make it ideal for exhibitions, retail setups, and decorative installations no matter outdoor and indoor scene.


Main tube50x2mm(2x0.08 inch)
AlloyEN-AW 6082-T6


Advantages of F31 Series

Excellent Stability Excellent Stability
Excellent Stability
Provides reliable support for lighting and decorative elements.
Premium Material Premium Material
Premium Material
EN AW-6082 T6 aluminum ensures strength and longevity.
Multiple Sizes Available Multiple Sizes Available
Multiple Sizes Available
Suitable for various structural requirements.
Smooth, Professional Finish Smooth, Professional Finish
Smooth, Professional Finish
Enhances visual appeal in event setups.
Quick Assembly Quick Assembly
Quick Assembly
Modular design simplifies installation.
High Load Capacity for Size High Load Capacity for Size
High Load Capacity for Size
Supports loads up to 10 m spans despite compact dimensions.

Loading Table of F31

Span(m)1m2m3m4m
Distrib.Load(kg/m)4381094927
Deflection(mm)9.437.484.2149.7
Point Load(kg)2191097355
Deflection(mm)7.529.967.4119.8


Products Associated with F31

Corner Single Truss
/
Component
/

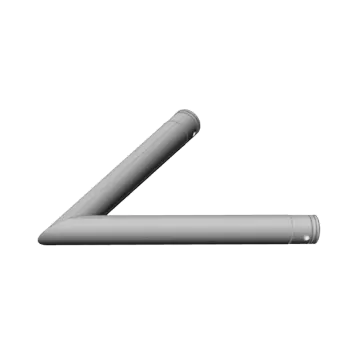

F31-C19
Single Truss
F31-C19
2-Way 45° Corner
F31-C20
Single Truss
F31-C20
2-way 60°corner
F31-C21
Single Truss
F31-C21
2-Way 90°Corner
F31-C22
Single Truss
F31-C22
2-way 120°corner
F31-C23
Single Truss
F31-C23
2-Way 135°Corner

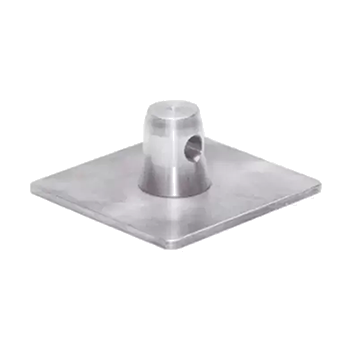

3024&3027 F31 Male
Base Plate
3024&3027 F31 Male
Φ50mm

Small Truss - Lightweight & Stable

Made of high-strength materials, lightweight, easy to assemble and stable in load-bearing. Suitable for exhibitions, stages, advertising, etc. Modular design for flexible size adjustment, wind-resistant and anti-deformation, practical and economical.

Request a Wholesale Quote Today
Acuivity Construction
Acuivity Construction
Equipment Support
Equipment Support
Building Assistance
Building Assistance
Decorative Structure
Decorative Structure

Can't Find a Suitable Product?

Click to View Other Products!

FAQ

Welcome to our FAQ, we are so happy to have you here and as a client.

We have tried to answer the most common questions.


Q
What tube specs, alloy material and cross-section dimension does F31 truss adopt?
-
+

It adopts EN AW-6082 T6 aluminium alloy, main tube Φ50×2mm, single round tube structure with diameter Φ50mm.

Q
What standard lengths are available for F31 straight truss, what is the maximum single length?
-
+

Standard lengths: 0.5 / 1 / 1.5 / 2 / 2.5 / 3 m, maximum single length 3 m.

Q
Which matching accessory models of F31 are shown on the drawing?
-
+

F31-C21 corner, F31-C20 corner, CJS-5011Y support bracket, LB-F30 tube clamp.

Q
What event scenarios fit F31 single tube truss, can it match base plates to build lightweight aluminum truss system?
-
+

Ideal for live streaming lighting, simple light stands for small roadshows, partial exhibition supports, wedding light poles and corporate event lighting frames. It can work with F31-BP base plate to build complete lightweight aluminium truss pole system.

Q
As professional truss manufacturers, do you support truss wholesale bulk orders of F31 truss, and can non-standard lengths be customized?
-
+

We support large-volume truss wholesale for complete F31 sets with standard sizes in stock. Custom non-standard lengths are available, one-stop delivery matched with F31 base plates and all kinds of connectors.
