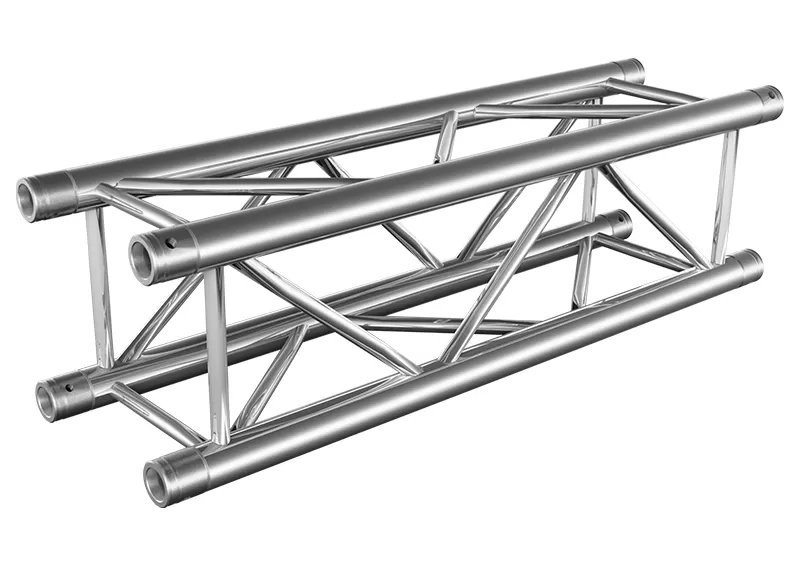

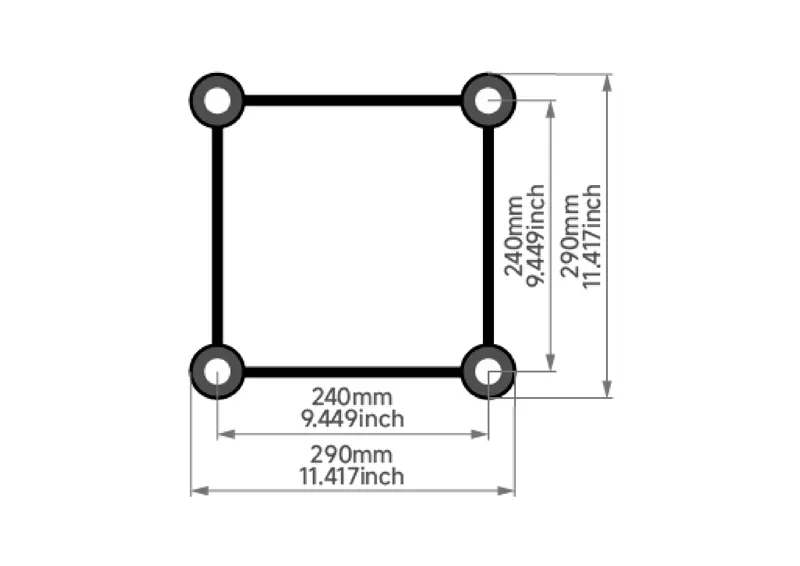

Constructed from high-strength EN AW-6082 T6 aluminum, the F34 Square Truss features 50 mm main tubes and 20 mm braces with a 290 mm external dimension. Designed for spans up to 18 meters, it offers excellent load capacity and stability. Ideal for stages, exhibitions, and event structures, it provides quick assembly, modular flexibility, and reliable performance.
SPECIFICATIONS
| Main tube | 50x2mm(2x0.08 inch) |
| Braces | 20x2mm(0.8x0.08 inch) |
| Alloy | EN-AW 6082-T6 |
F34 BOX STRAIGHT SEGMENT
| Span(m) | 2m | 4m | 6m | 8m | 10m | 12m | |||
| Distrib.Load(kg/m) | 1422 | 493 | 223 | 127 | 79 | 51 | |||
| Deflection(mm) | 2.4 | 13.7 | 31.8 | 58 | 90.5 | 126.4 | |||
| Point Load(kg) | 1919 | 987 | 670 | 507 | 394 | 308 | |||
| Deflection(mm) | 2.6 | 11 | 25.6 | 46.9 | 73.6 | 103.6 | |||
Advantages of F34 Square Truss
1. Premium Material – Made from durable EN AW-6082 T6 aluminum for long-lasting strength and corrosion resistance.
2. Robust Load Capacity – Engineered to support heavy loads and wide spans safely.
3. Efficient Assembly – Quick-lock connection system allows fast, tool-free setup and dismantling.
4. Versatile Applications – Ideal for stages, exhibitions, lighting rigs, and event structures.
5. Modular Design – Compatible with a wide range of accessories and components for flexible configurations.
6. Lightweight & Portable – Easy to transport and handle without compromising stability.
7. Certified Safety – Meets international safety standards for peace of mind.
