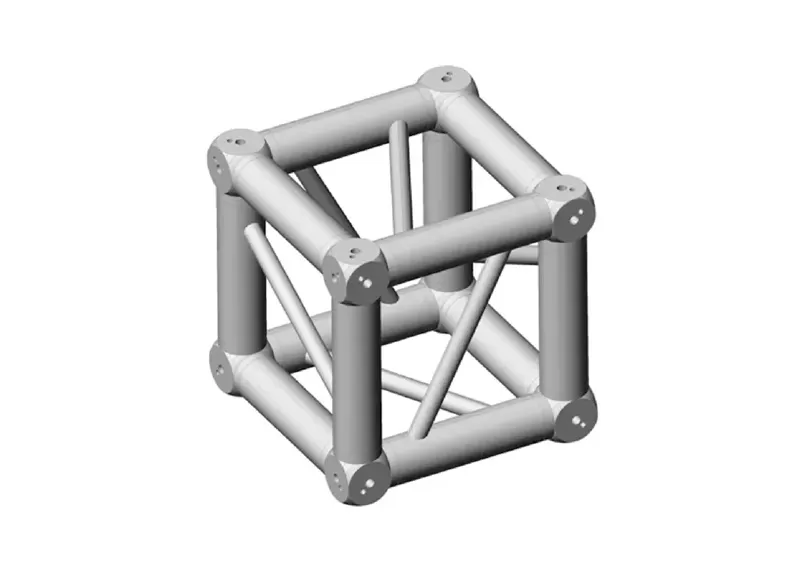

The HT34-MCB is a heavy-duty aluminum multi-connection box designed for the HT34 truss system. Constructed from EN AW-6082 T6 aluminum, it features a 290 mm external dimension and supports up to six connection points. Ideal for creating complex truss configurations in stages, exhibitions, and event structures, it offers quick assembly, modular flexibility, and reliable performance.
SPECIFICATIONS
| Length (L) | 0.29m (0.95ft) |
| Angle (A) | Universal block |
| Weight (W) | 8.07kgs(17.8lbs) |
| Includes 2 connection sets for two ways | |
HT34 BOX STRAIGHT SEGMENT
| Span(m) | 2m | 4m | 6m | 8m | 10m | 12m | |||
| Distrib.Load(kg/m) | 1420 | 707 | 344 | 193 | 121 | 82 | |||
| Deflection(mm) | 1.7 | 13.3 | 33.2 | 59.8 | 93.9 | 134.8 | |||
| Point Load(kg) | 2840 | 1544 | 1033 | 771 | 607 | 491 | |||
| Deflection(mm) | 2.7 | 11.7 | 26.7 | 48.3 | 76.2 | 110.1 | |||
1. Heavy-Duty Construction – Manufactured from EN AW-6082 T6 aluminum for enhanced durability and corrosion resistance.
2. High Load Capacity – Supports multiple connection points, facilitating complex truss configurations without compromising structural integrity.
3. Modular Flexibility – Compatible with various HT34 truss components, allowing for customizable setups.
4. Quick Assembly – Features a Quicklock connection system for fast, tool-free setup and teardown.
5. Versatile Applications – Suitable for stages, exhibitions, lighting rigs, and large-scale event structures.
6. Compact Design – 290 mm external dimension ensures compatibility with spaces requiring compact structural solutions.
7. Certified Safety – Tested and certified by TÜV SÜD, meeting international safety standards.
