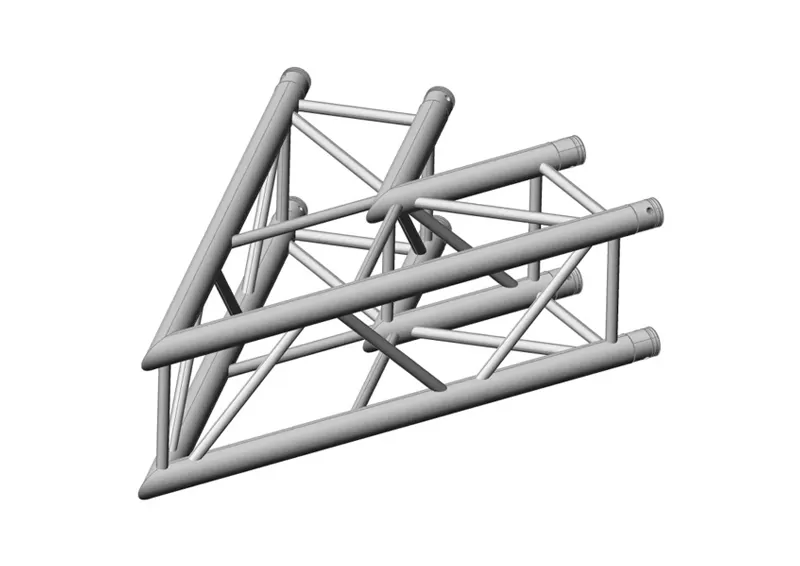

Made from EN AW‑6082 T6 aluminum, the HT34 Square Truss Corner features 50 × 3 mm tubes and 20 × 2 mm braces in a 290 mm square form. Available in multiple angles (e.g., 2-way 90°), it excels in stages, exhibition grids, and booth layouts-offering durable structural joins, TÜV-certified reliability, and quick-lock assembly.
The HT34 Square Truss Corner integrates strength, versatility, and simplicity. Its multiple angle options and compact design make it ideal for complex staging, exhibition booths, and support structures. Designed for rapid setup and high safety standards, this corner element enhances both efficiency and structural integrity in professional installations.
SPECIFICATIONS
| Length (L) | 1m (3.28ft) |

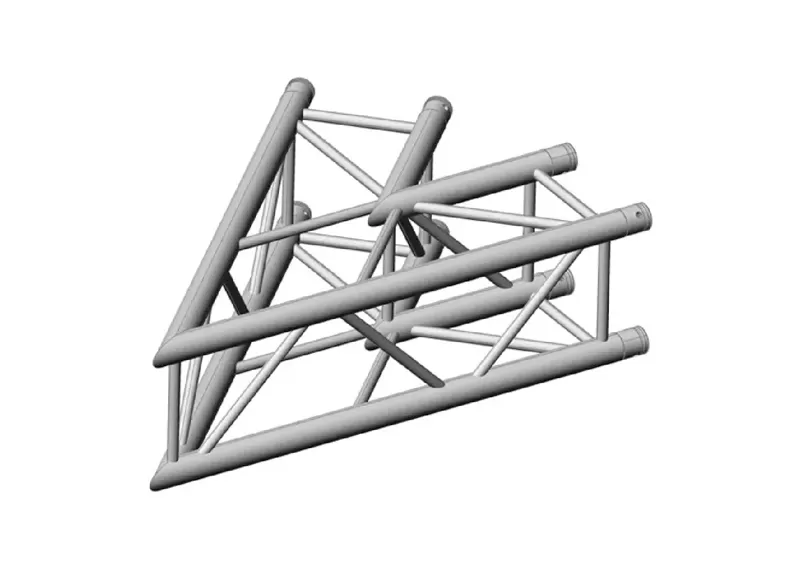

| Angle (A) | 2-way 45° corner |
| Weight (W) | 9kgs (19.84lbs) |

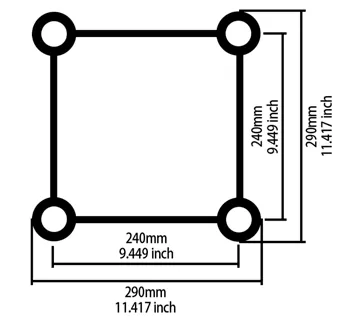

HT34 BOX STRAIGHT SEGMENT
| Span(m) | 2m | 4m | 6m | 8m | 10m | 12m | |||
| Distrib.Load(kg/m) | 1420 | 707 | 344 | 193 | 121 | 82 | |||
| Deflection(mm) | 1.7 | 13.3 | 33.2 | 59.8 | 93.9 | 134.8 | |||
| Point Load(kg) | 2840 | 1544 | 1033 | 771 | 607 | 491 | |||
| Deflection(mm) | 2.7 | 11.7 | 26.7 | 48.3 | 76.2 | 110.1 | |||
1. Heavy-Duty Construction – Robust tubing and braces deliver exceptional strength and durability.

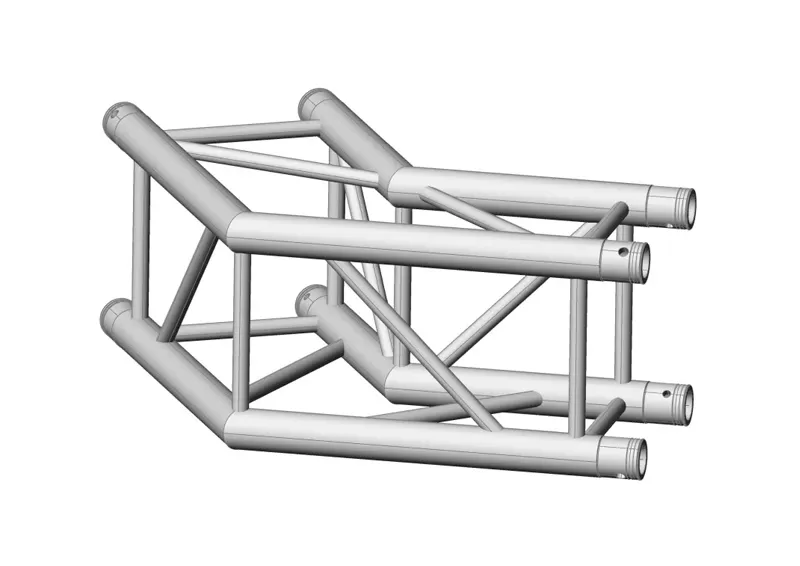

2. Versatile Angles – Available in 45°, 90°, 120°, and more for adaptable structure design.
3. Fast Assembly – Includes quick-lock connector kit for secure, tool-free installation.
4. Compact Profile – The 290 mm dimension balances portability with robust load-bearing capacity.
5. Certified Safety – TÜV SÜD tested for spans up to 12 m, ensuring industry compliance.
6. Indoor & Outdoor Use – Perfect for versatile applications in varying environments.
