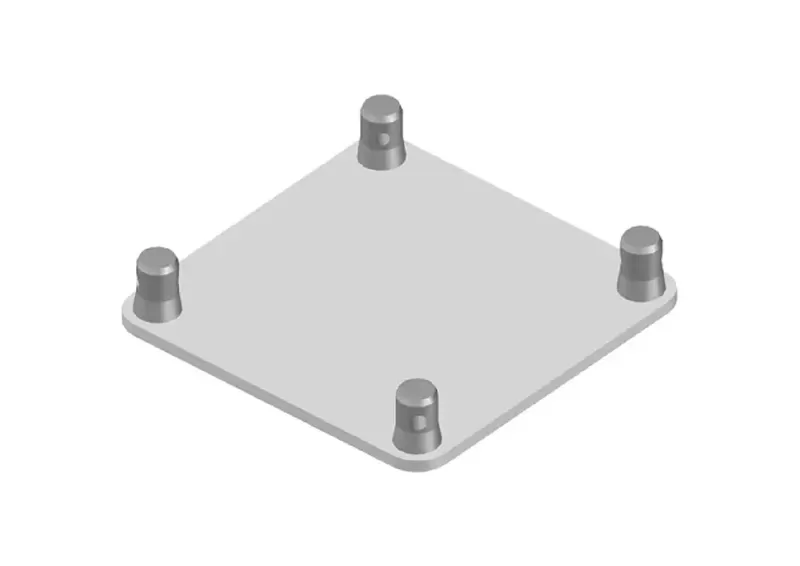

Crafted from heavy-duty steel or aluminum, the HT34 Base Plate features a robust 500 × 500 mm footprint suited for 290 mm square truss systems. Ideal for supporting towers, masts, and stage legs, it ensures stable, level foundations and facilitates safe, precise installation in varied environments.
The HT34 Base Plate forms the cornerstone of solid truss installations. Engineered for heavy-duty performance, it ensures essential foundational support-especially in demanding stage, exhibition, or display applications. Compatible with the HT34 series and available in steel or aluminum, it offers both reliability and flexibility.
SPECIFICATIONS
| Length (L) | Base Plate |
| Angle (A) | Various diameters |
HT34 BOX STRAIGHT SEGMENT
| Span(m) | 2m | 4m | 6m | 8m | 10m | 12m | |||
| Distrib.Load(kg/m) | 1420 | 707 | 344 | 193 | 121 | 82 | |||
| Deflection(mm) | 1.7 | 13.3 | 33.2 | 59.8 | 93.9 | 134.8 | |||
| Point Load(kg) | 2840 | 1544 | 1033 | 771 | 607 | 491 | |||
| Deflection(mm) | 2.7 | 11.7 | 26.7 | 48.3 | 76.2 | 110.1 | |||
1. Robust Foundation – Made from durable steel or aluminum, delivering exceptional structural stability.
2. Optimal Footprint – The 500 × 500 mm base offers a well-balanced support area for enhanced safety.
3. Quick and Secure Setup – Designed for fast, sturdy installation with standard HT34 truss components.
4. Compatible with Standard Truss – Tailored to integrate seamlessly with HT34 (290 mm square) systems.
5. Versatile Applications – Perfect for stabilizing towers, staging legs, totems, and exhibition structures.
6. Suitable for All Surfaces – Ideal on varied terrains and flooring types used in venues and outdoor setups.
