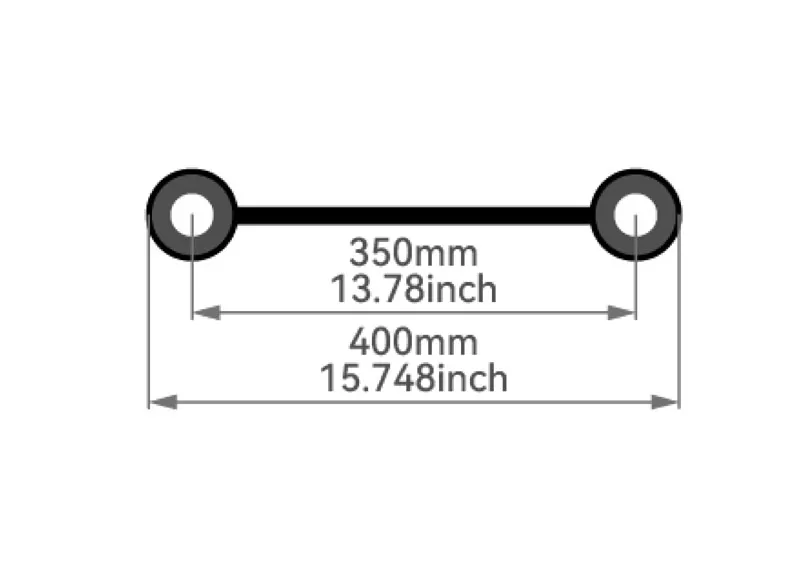

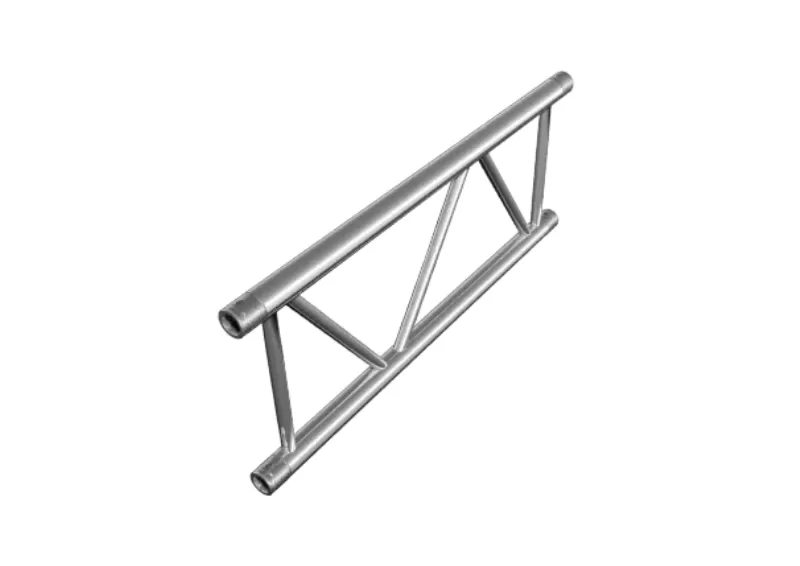

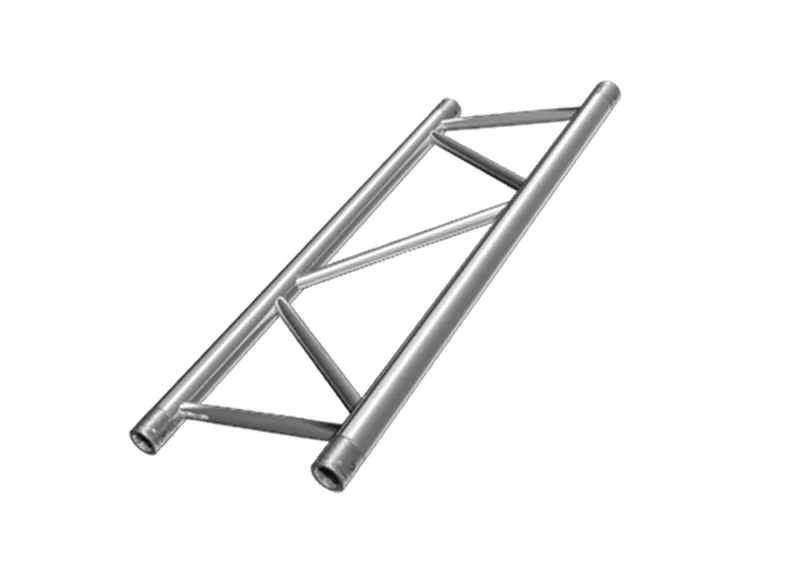

The F42 series ladder truss is made of high-quality EN AW-6082 T6 aluminum alloy, which for strength and durability. Featuring a 400mm specification profile and spigot connection, main tube dimension in 50*2mm and brace in 25*3mm, for enhanced truss structure stability and load capacity. Its spigot connection system ensures quick and convenient assembly, making it ideal for large lighting rigging, special exhibition structures, large span project, and stage frameworks setups. Lightweight yet durable, with the advantage of easy handling, storage space saving and high transport efficiency.
SPECIFICATIONS
| Main tube | 50x2mm(2x0.08 inch) |
| Braces | 25x3mm(1x0.12 inch) |
| Alloy | EN-AW 6082-T6 |
F42 STRAIGHT SEGMENT
| Span(m) | 2m | 4m | 6m | 8m | 10m | 12m | 14m | 16m | |||
| Distrib.Load(kg/m) | 756 | 243 | 109 | 61 | 39 | 27 | 19 | 14 | |||
| Deflection(mm) | 1.2 | 6.4 | 14.7 | 26.7 | 42.7 | 63 | 87.8 | 115.3 | |||
| Point Load(kg) | 756 | 486 | 327 | 245 | 195 | 161 | 135 | 113 | |||
| Deflection(mm) | 1 | 5.1 | 11.8 | 21.6 | 34.8 | 51.8 | 72.9 | 96.7 | |||
1. Premium Aluminum Alloy – Manufactured from EN AW-6082 T6 for maximum strength and corrosion resistance.
2. Large 400mm Profile – Offers excellent stability and high load capacity for demanding applications.
3. Spigot Connection System – Enables quick, tool-free assembly and disassembly for time efficiency.
4. Versatile Applications – Perfect for stage structures, lighting grids, and exhibition setups.
5. Lightweight Yet Strong – Easy to transport and handle while ensuring structural integrity.
6. Modular and Compatible – Works seamlessly with other truss components for flexible configurations.
