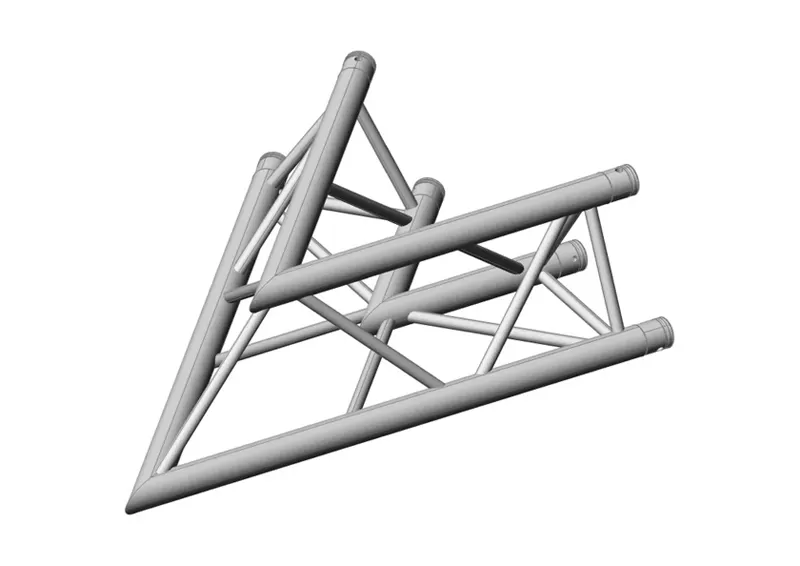

The HT33 Triangle Truss Corner is precision-engineered from EN AW‑6082 T6 aluminum, matching the heavy-duty 290 mm equilateral HT33 truss. Available in angles from 45° to 135° with integrated quick-lock kits, it ensures rigid, modular jointing. Ideal for stage roofs, exhibition frames, and event rigging, it offers seamless alignment, rapid assembly, TÜV-certified safety, and dependable load-bearing performance.
SPECIFICATIONS
| Length (L) | 1m (3.28ft) |
| Angle (A) | 2-way 45° corner |
| Weight (W) | 6.4kgs (14.11lbs) |

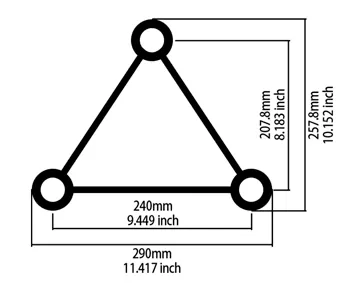

HT33 TRIANGLE STRAIGHT SEGMENT
| Span(m) | 2m | 4m | 6m | 8m | 10m | 12m | |||
| Distrib.Load(kg/m) | 1231 | 338 | 150 | 81 | 50 | 32 | |||
| Deflection(mm) | 2.9 | 12.8 | 29.4 | 51.7 | 80.6 | 112.7 | |||
| Point Load(kg) | 1321 | 675 | 450 | 324 | 249 | 190 | |||
| Deflection(mm) | 2.5 | 10.3 | 23.7 | 42.1 | 66.1 | 93.5 | |||
1. Robust Construction – Crafted from EN AW-6082 T6 aluminum for reliability.
2. Precision Angles – Provides accurate 2-way, 3-way, or 4-way connections.
3. Seamless Integration – Perfectly aligns with HT33 straight truss for stable joints.
4. Quick Installation – Spigot or quick-lock system allows efficient setup.
5. Enhanced Rigidity – Improves overall structure stability at connection points.
6. Flexible Design Options – Available in various angles for custom structures.
7. Wide Application – Ideal for stage roofs, exhibition frames, and complex event setups.
