FTI44 series square bolted truss is manufactured from high-strength EN AW-6082 T6 aluminum alloy, ensuring durability and stability. Specification of 400mm*400mm, available in various length and connection options, it offers excellent loading capacity for large spans. Good choice for stages, exhibitions, and event structures, its modular design allows easy assembly, straight but stable when connecting in long spans, and reliable performance for various scenes applications.
| Main tube | 50x3mm |
| Vice tube | 30x3mm |
| Braces | 25x3mm |
| Alloy | EN-AW 6082-T6 |

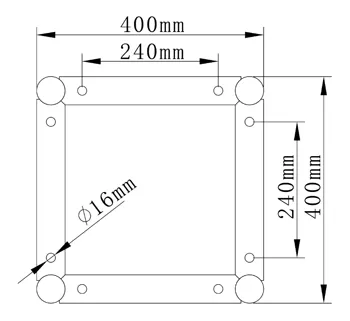

FTI44 STRAIGHT SEGMENT
| Span(m) | 4m | 6m | 8m | 10m | 12m | 14m | ||||
| Distrib.Load(kg/m) | 480 | 321 | 175 | 114 | 78 | 29 | ||||
| Deflection(mm) | 15 | 22 | 40 | 62 | 88 | 115 | ||||
| Point Load(kg) | 1500 | 1160 | 890 | 666 | 518 | 175 | ||||
| Deflection(mm) | 32 | 57 | 75 | 90 | 110 | 139 | ||||
Advantage list for the FTI44 Series Bolted Truss:
1. Heavy-Duty Strength – Provides excellent load-bearing capacity for medium to large-scale structures.
2. High-Quality Material – Constructed from EN AW-6082 T6 aluminum for durability and corrosion resistance.
3. 400mm Square Profile – Offers enhanced stability for longer spans and larger stage setups.
4. Bolted Connection Design – Ensures precise alignment, secure joints, and easy replacement of components.
5. Versatile Application – Suitable for stage roofs, LED screens, lighting rigs, and event structures.
6. Modular System – Allows flexible configuration and efficient transport/storage.
7. Professional Finish – Clean, robust appearance for high-end indoor and outdoor events.
