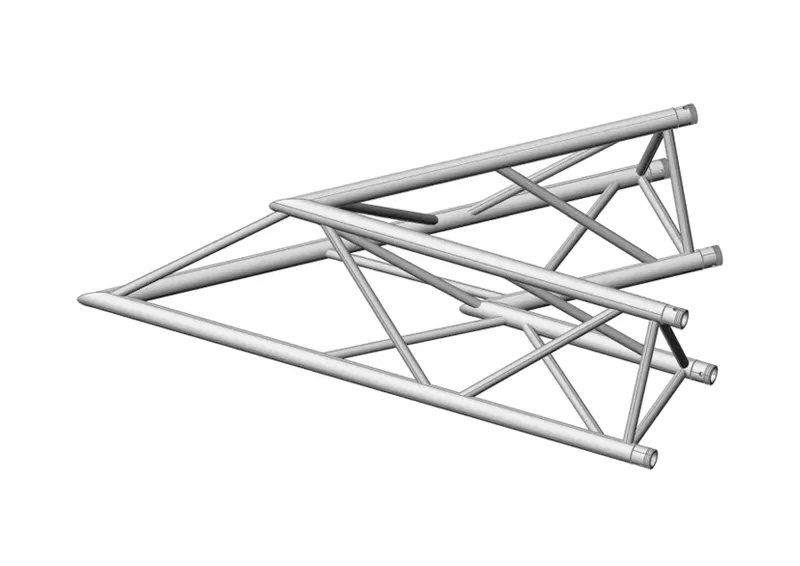

Constructed from high-grade EN AW-6082 T6 aluminum, the F43 Triangle Corner Truss features 50 mm main tubes and 25 mm braces. Designed for precise 3-point connections, it guarantees robust stability and seamless integration with F43 straight truss. Ideal for staging, exhibitions, and event structures, it offers fast, tool-free assembly, excellent load-bearing capacity, and flexible modular design for professional applications.
SPECIFICATIONS
| Length (L) | 1m (4.92ft) |
| Angle (A) | 2-way 45° corner |
| Weight (W) | 5.9kgs (5.73lbs) |

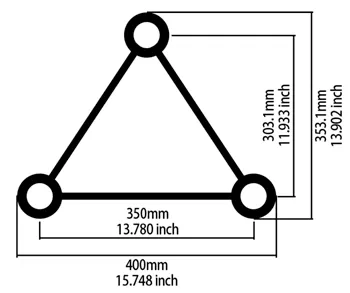

F43 TRIANGLE STRAIGHT SEGMENT
| Span(m) | 2m | 4m | 6m | 8m | 10m | 12m | 14m | 16m | |||
| Distrib.Load(kg/m) | 779 | 272 | 124 | 70 | 45 | 31 | 21 | 15 | |||
| Deflection(mm) | 1.3 | 7.2 | 16.9 | 31.3 | 50.9 | 70.6 | 100.8 | 133.3 | |||
| Point Load(kg) | 779 | 544 | 371 | 282 | 225 | 184 | 144 | 1211 | |||
| Deflection(mm) | 1 | 5.8 | 13.6 | 25.5 | 41.8 | 62.8 | 84.9 | 116.1 | |||
1. High-Quality Material – Made from durable EN AW-6082 T6 aluminum for long-lasting strength.
2. Precision Engineering – Ensures accurate 3-point connections for stable structural integrity.
3. Seamless Integration – Perfectly compatible with F43 straight trusses for flexible designs.
4. Quick Assembly – Tool-free spigot or quick-lock system enables fast setup and dismantling.
5. Robust Load Capacity – Designed to handle heavy loads safely in complex structures.
6. Versatile Applications – Ideal for stages, exhibitions, and event structures requiring angled connections.
7. Lightweight & Portable – Easy to transport and maneuver on site without sacrificing strength.
