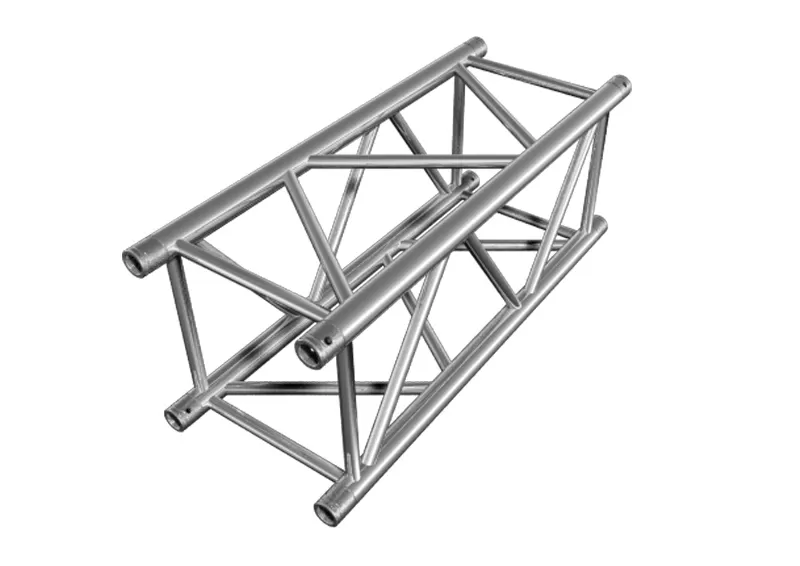

Constructed from high-strength EN AW‑6082 T6 aluminum with 50 mm main tubes (2 mm wall) and 25 mm braces (3 mm wall), the F44 Square Truss features a 400 mm external profile. TÜV-approved and engineered for spans up to 20 m, it excels in concert stages, exhibitions, AV farms, and permanent installations, offering outstanding load capacity, low deflection, fast assembly with conical connectors, and sleek powder-coated finishes.
The F44 Square Truss stands out in heavy-duty event and architectural scenarios. Its substantial profile and structural performance make it a preferred solution when extended spans and high load capacities are required. If you'd like, I can also help design corner, junction, or tower components to complement the system.
SPECIFICATIONS
| Main tube | 50x2mm(2x0.08 inch) |
| Braces | 25x3mm(1x0.12 inch) |
| Alloy | EN-AW 6082-T6 |

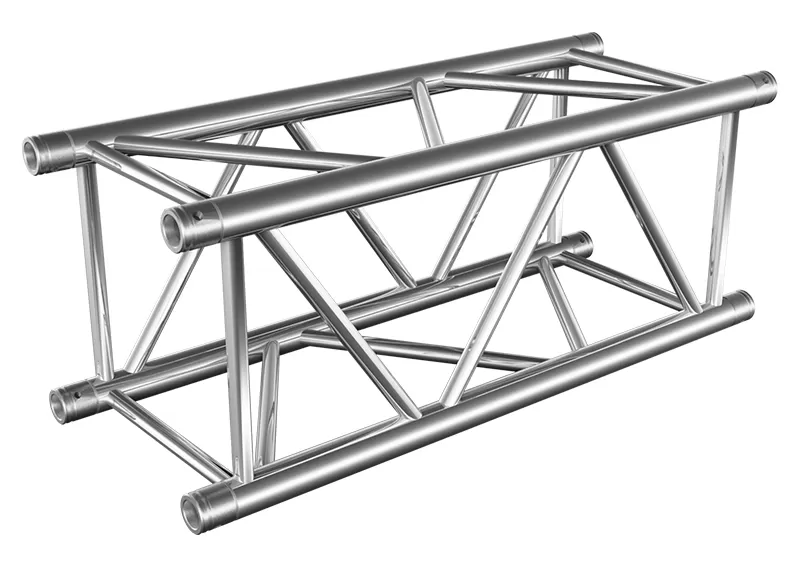

F44 BOX STRAIGHT SEGMENT
| Span(m) | 2m | 4m | 6m | 8m | 10m | 12m | 14m | 16m | |||
| Distrib.Load(kg/m) | 1805 | 595 | 274 | 163 | 106 | 73 | 52 | 38 | |||
| Deflection(mm) | 1.5 | 7.8 | 18.4 | 35.2 | 57.3 | 83.5 | 114.9 | 151.1 | |||
| Point Load(kg) | 1805 | 1190 | 823 | 653 | 532 | 436 | 364 | 304 | |||
| Deflection(mm) | 1.2 | 6.2 | 14.8 | 28.5 | 46.6 | 68.4 | 94.7 | 124.5 | |||
1. Heavy-Duty Build – Made with durable EN AW‑6082 T6 aluminum, 50 mm tubing and 25 mm braces handle demanding loads.
2. Exceptional Structural Performance – TÜV-approved for spans up to 20 m with minimal deflection under load.
3. Efficient Assembly – Conical connector system enables fast, secure setup without tools.
4. Versatile Application – Ideal for stages, exhibitions, AV hangs, and permanent architectural installations.
5. Sleek Finish Options – Easily customizable with powder coating in any RAL color for branding or aesthetic needs.
6. Reliable Load Performance – Delivers high capacity with consistent behavior, trusted in demanding environments.
