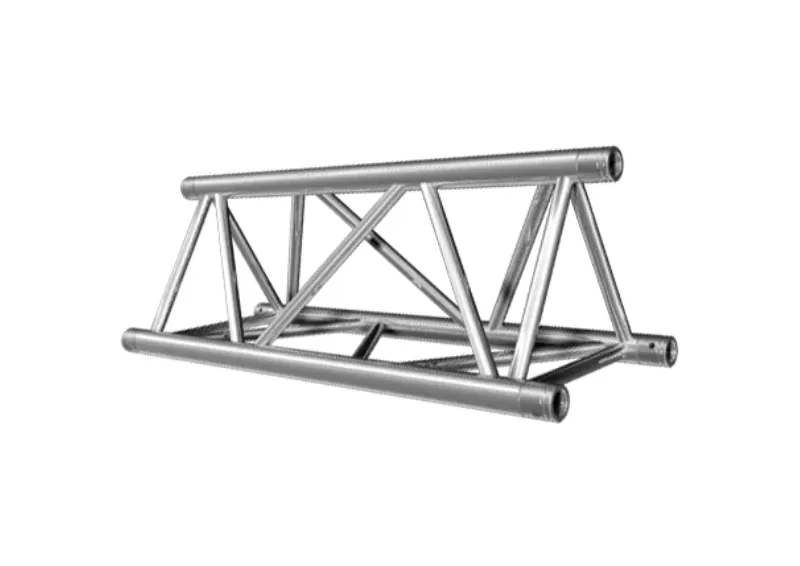

Manufactured from high-strength EN AW-6082 T6 aluminum, the F43 Triangle Straight Truss features 50 mm main tubes and 25 mm braces, with a 400 mm external dimension. Designed for spans up to 18 meters, it delivers excellent load capacity and stability. Ideal for staging, exhibitions, and event rigging, it offers fast, tool-free quick-lock assembly and seamless modular integration for versatile and reliable structural solutions.
SPECIFICATIONS
| Main tube | 50x2mm(2x0.08 inch) |
| Braces | 25x3mm(1x0.12 inch) |
| Alloy | EN-AW 6082-T6 |
F43 TRIANGLE STRAIGHT SEGMENT
| Span(m) | 2m | 4m | 6m | 8m | 10m | 12m | 14m | 16m | |||
| Distrib.Load(kg/m) | 779 | 272 | 124 | 70 | 45 | 31 | 21 | 15 | |||
| Deflection(mm) | 1.3 | 7.2 | 16.9 | 31.3 | 50.9 | 70.6 | 100.8 | 133.3 | |||
| Point Load(kg) | 779 | 544 | 371 | 282 | 225 | 184 | 144 | 1211 | |||
| Deflection(mm) | 1 | 5.8 | 13.6 | 25.5 | 41.8 | 62.8 | 84.9 | 116.1 | |||
1. Heavy-Duty Construction – Manufactured with EN AW-6082 T6 aluminum for superior durability.
2. High Load Capacity – Supports long spans and substantial weights for demanding installations.
3. Quick-Lock Connection System – Allows fast, tool-free assembly and reliable joining.
4. Lightweight Design – Facilitates ease of handling and transportation.
5. Modular Flexibility – Compatible with multiple truss accessories and corners for custom configurations.
6. Wide Range of Applications – Suitable for stages, lighting rigs, exhibition stands, and event constructions.
