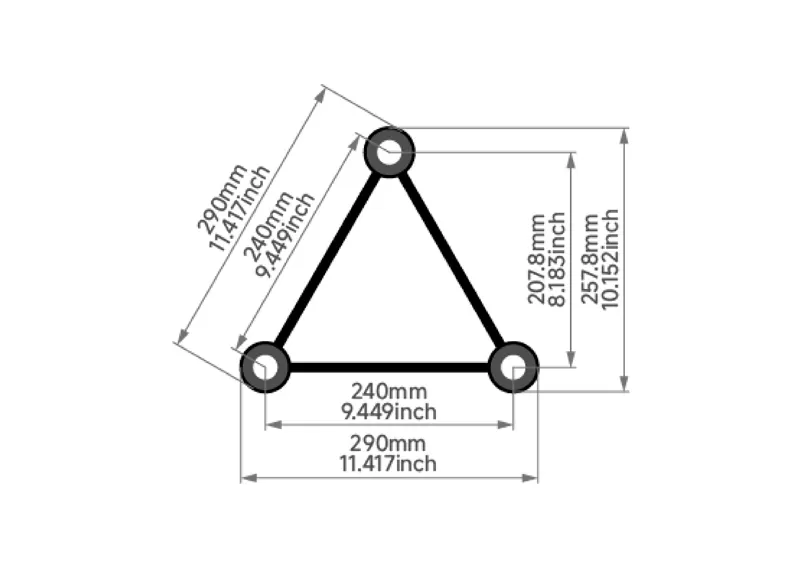

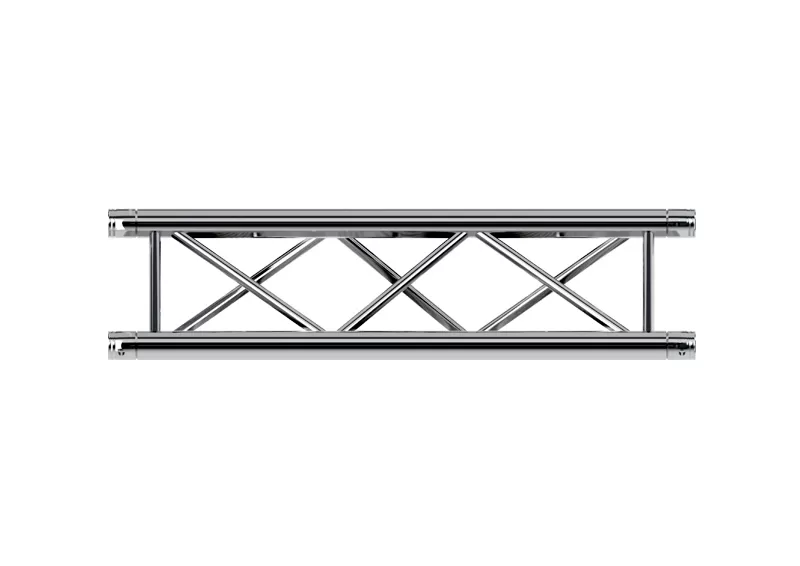

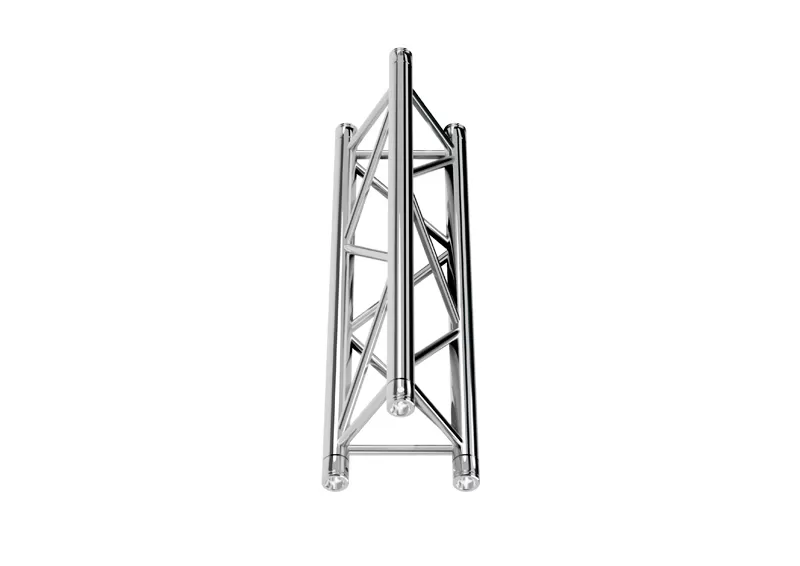

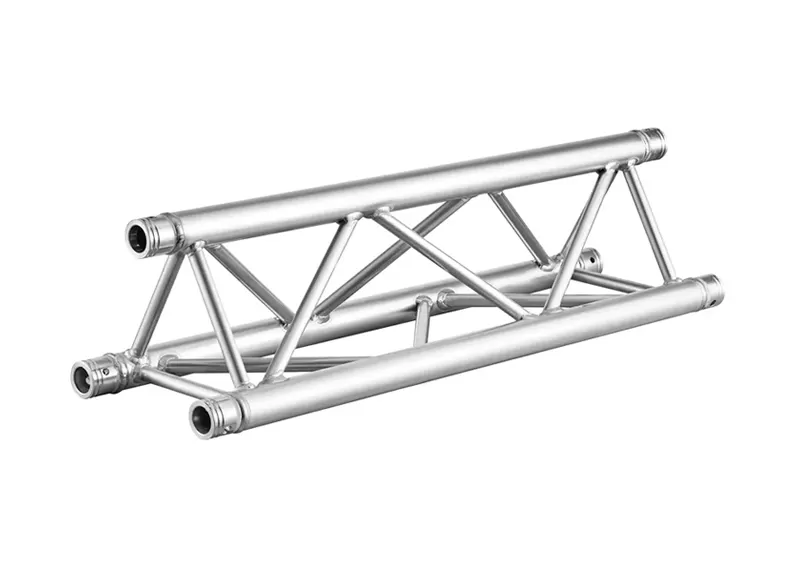

The F33 Triangle Spigot Truss is crafted from high-strength EN AW-6082 T6 aluminum alloy, ensuring durability and lightweight performance. Featuring a 290mm specification profile and spigot connection, main tube dimension in 50*2mm and brace in 20*2mm. Designed for seamless 3-point connections, it offers excellent load capacity and stability. Ideal for stage structures, exhibitions, and event installations, its modular design enables quick assembly, precise alignment, and versatile configurations for professional applications.
SPECIFICATIONS
| Main tube | 50x2mm(2x0.08 inch) |
| Braces | 20x2mm(0.8x0.08 inch) |
| Alloy | EN-AW 6082-T6 |
F33 TRIANGLE STRAIGHT SEGMENT
| Span(m) | 2m | 4m | 6m | 8m | 10m | 12m | |||
| Distrib.Load(kg/m) | 761 | 206 | 92 | 51 | 31 | 20 | |||
| Deflection(mm) | 2.6 | 11.5 | 26.8 | 48.8 | 75.2 | 105.6 | |||
| Point Load(kg) | 761 | 412 | 277 | 206 | 154 | 117 | |||
| Deflection(mm) | 2.1 | 9.3 | 21.7 | 39.8 | 62 | 88.3 | |||
1. High-Quality Material – Manufactured from EN AW-6082 T6 aluminum for exceptional strength and durability.
2. Lightweight Design – Easy to transport and handle without compromising load capacity.
3. Quick Assembly – Spigot connection system allows fast and secure setup.
4. Excellent Load Capacity – Optimized design ensures stability for various applications.
5. Versatile Configuration – Compatible with multiple truss elements for flexible design options.
6. Professional Finish – Smooth, polished surface suitable for high-visibility installations.
7. Wide Application Range – Ideal for stages, exhibitions, lighting rigs, and event structures.
