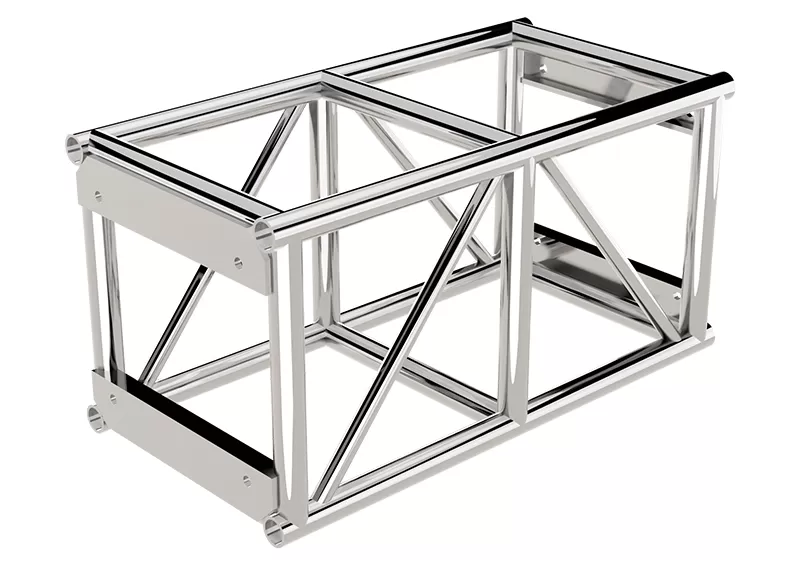

TTI54 series square bolted truss is manufactured from high-strength EN AW-6082 T6 aluminum alloy, ensuring durability and stability. Specification of 520mm*520mm, available in various length and connection options, it offers excellent loading capacity for large spans. Good choice for stages, exhibitions, and event structures, its modular design allows easy assembly, straight but stable when connecting in long spans, and reliable performance for various scenes applications.
| Main tube | 50x4mm |
| Vice tube | 50x3mm, 30x3mm |
| Braces | 30x3mm |
| Alloy | EN-AW 6082-T6 |

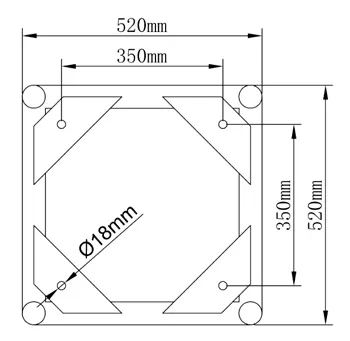

TTI54 STRAIGHT SEGMENT
| Span(m) | 6m | 8m | 10m | 12m | 14m | 16m | ||||
| Distrib.Load(kg/m) | 295 | 201 | 118 | 67 | 46 | 31 | ||||
| Deflection(mm) | 15 | 23 | 31 | 40 | 50 | 75 | ||||
| Point Load(kg) | 978 | 804 | 590 | 402 | 322 | 248 | ||||
| Deflection(mm) | 12 | 22 | 33 | 43 | 59 | 77 | ||||
Advantages of the TTI54 Series Bolted Truss:
1. Extra Heavy-Duty Capacity – Engineered for the most demanding structures, supporting extreme loads and large spans.
2. Premium EN AW-6082 T6 Aluminum – Provides exceptional strength, durability, and corrosion resistance.
3. Massive 520mm Profile – Designed for large-scale stage roofs, concert rigs, and high-load installations.
4. Bolted Connection System – Guarantees maximum stability, precise alignment, and easy maintenance.
5. Ideal for Outdoor & Touring Events – Perfect for stadium concerts, festivals, and large exhibition structures.
6. Modular Construction – Flexible configurations to meet unique project requirements.
7. Enhanced Safety and Reliability – Meets strict international standards for heavy-duty applications.
