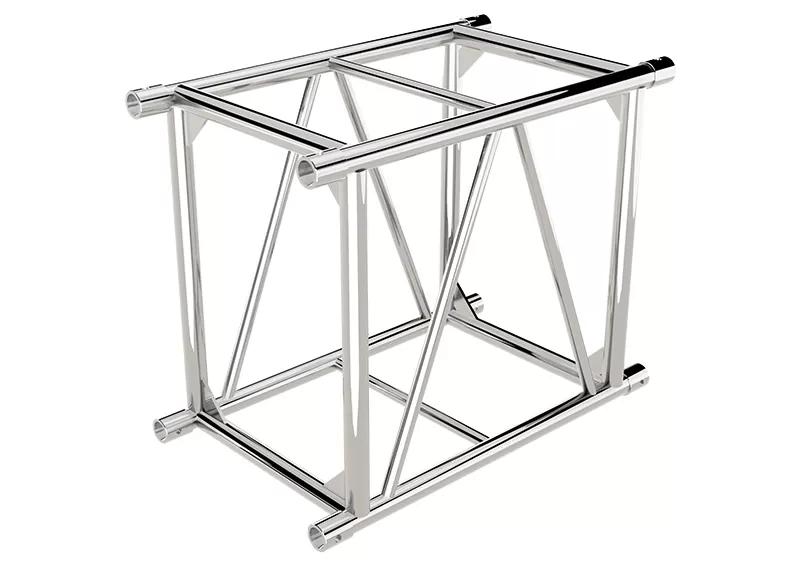

Crafted from high-strength EN‑AW 6082‑T6 aluminum, the TT86 Spigot Truss features 50 × 4 mm main and vice tubes and 30 × 3 mm braces, with external dimensions of 600×800 mm, delivering superior rigidity. Engineered for spans up to 20–22 m, it's ideal for heavy-duty stages, exhibition grids, and outdoor canopies-offering fast, tool-free assembly through its spigot connection system.
The TT86 Spigot Truss strikes a powerful blend of durability and usability. It excels in large-scale scenarios where structural integrity and swift assembly are essential. Its blend of impressive span capacity, heavy-duty design, and spigot connectivity make it an excellent choice for demanding event and architectural setups.
SPECIFICATIONS
| Main tube | 50x4mm(2x0.16 inch) |
| Vice tube | 50x4mm(2x0.16 inch) |
| Braces | 30x3mm(1.2x0.12 inch) |
| Alloy | EN-AW 6082-T6 |
TT86 STRAIGHT SEGMENT
| Span(m) | 8m | 10m | 12m | 14m | 16m | 18m | 20m | 22m | |||
| Distrib.Load(kg/m) | 750 | 510 | 330 | 235 | 178 | 140 | 112 | 82 | |||
| Deflection(mm) | 20.8 | 30 | 40.8 | 54 | 68 | 87 | 104 | 125 | |||
| Point Load(kg) | 1900 | 1650 | 1440 | 1320 | 1190 | 1100 | 1010 | 955 | |||
| Deflection(mm) | 10.8 | 15.2 | 23 | 35 | 52 | 70 | 89 | 112 | |||
Robust Build -50×4 mm tubing ensures outstanding strength
High Load Capacity -Supports spans up to 20–22 m with reliable deflection limits
Efficient Assembly - Spigot connection enables rapid, secure setup
Versatile Applications Well-suited for concert stages, exhibition stands, and large event infrastructure
Durable Alloy EN-AW 6082-T6 alloy offers excellent corrosion resistance and longevity
Visual & Structural Appeal Combines sleek design with rugged performance
