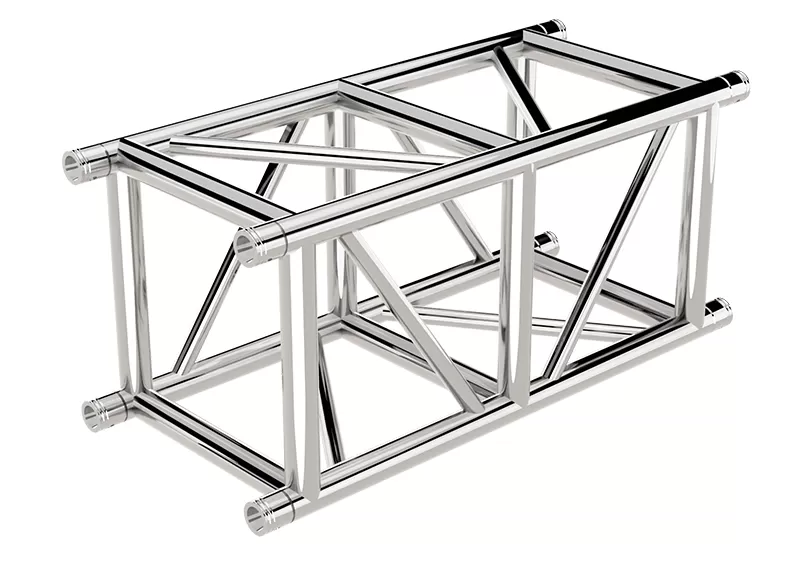

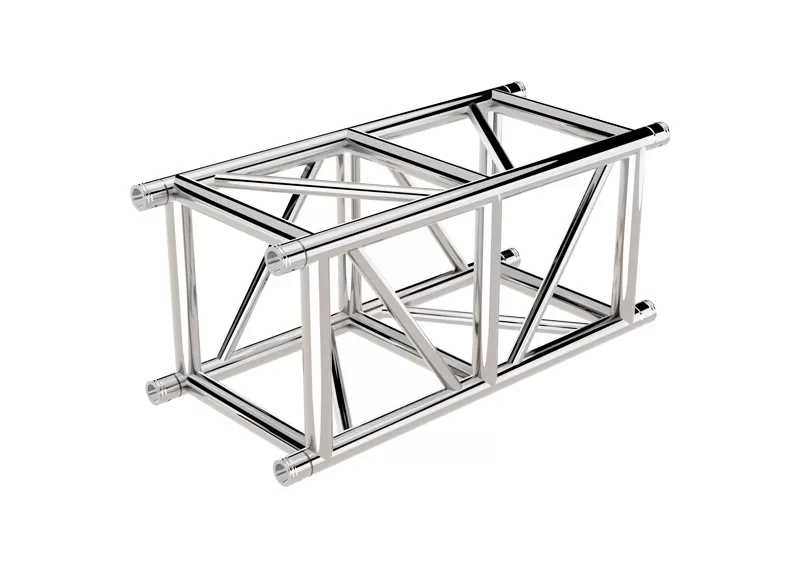

The TT45 is a robust rectangular aluminum truss system designed for medium to heavy-duty applications. Constructed from high-strength EN AW-6082 T6 aluminum, it features 50×4 mm main tubes, 50x3 mm vice tube and 25×3 mm braces. With external dimensions of 450×450 mm, it supports spans up to 24 meters and is suitable for both indoor and outdoor installations. The truss utilizes a spigot connection system for quick and secure assembly, making it ideal for stage rigging, exhibition setups, and event infrastructure.
The TT45 truss system is engineered to meet the demands of professional event setups. Its robust design and compatibility with various configurations make it a reliable choice for creating stable and secure structures. Whether you're constructing a temporary stage, a complex exhibition structure, or a large-scale roof system, the TT45 provides the flexibility and strength needed for successful installations.
SPECIFICATIONS
| Main tube | 50x4mm(2x0.16 inch) |
| Vice tube | 50x3mm(2x0.16 inch) |
| Braces | 25x3mm(1x0.12 inch) |
| Alloy | EN-AW 6082-T6 |
TT45 STRAIGHT SEGMENT
| Span(m) | 8m | 10m | 12m | 14m | 16m | 18m | 20m | |||
| Distrib.Load(kg/m) | 402 | 268 | 200 | 157 | 115 | 86 | 61 | |||
| Deflection(mm) | 58 | 83 | 119.8 | 130 | 168 | 195 | 225 | |||
| Point Load(kg) | 1900 | 1750 | 1620 | 1460 | 1340 | 1250 | 1010 | |||
| Deflection(mm) | 68 | 95 | 127 | 145 | 172 | 186 | 211 | |||
1. High Load Capacity – Supports spans up to 24 meters, accommodating substantial loads.
2. Durable Construction – Made from EN AW-6082 T6 aluminum for strength and longevity.
3. Quick Assembly – Features a spigot connection system for efficient setup.
4. Versatile Applications – Suitable for both indoor and outdoor installations.
5. Modular Design – Compatible with various clamps and accessories for flexible configurations.
6. TÜV Certified – Ensures compliance with safety standards.
